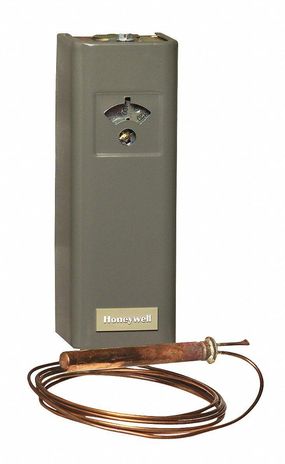

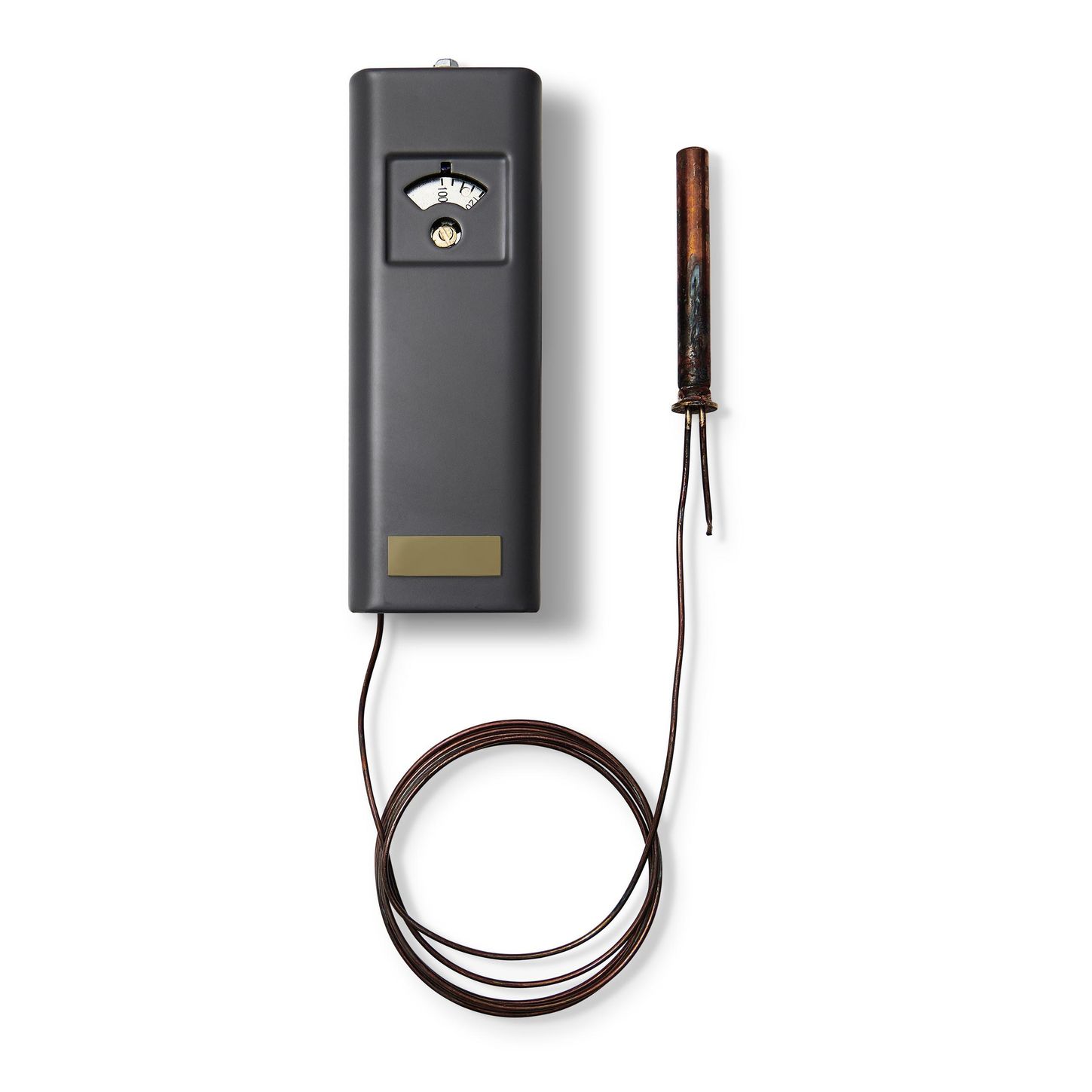

Resideo L4008A1015

High or low limit Aquastat controller with 100 F to 240 F operating temperature

For limiting or regulating temperature of liquids in boilers or tanks. Can also sense duct or outside air temperature.

Specifications:

• Electrical Ratings (millivolt) : 0.25 A @ 0.25 to 12 Vdc
• Electrical Ratings (AFL) : 8A @ 120 Vac
• Electrical Ratings (AFL) : 5.1A @ 240 Vac
• Electrical Ratings (ALR) : 48A @ 120 Vac
• Electrical Ratings (ALR) : 30.6A @ 240 Vac
• Case Dimensions (in.) : 5 ⅝ in. high x 2 in. wide x 2 ⅛ in. deep
• Approvals, Underwriters Laboratories Inc : UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
• Approvals, Canadian Standards Association : Certified: File No. LR95329-1
• Includes : 5 ½ ft (1.7 m) capillary.

Features:

• Remote temperature sensing element detects and responds rapidly to temperature changes.
• Totally enclosed Micro Switch snap-acting switch.
• Visible control point scale and external adjustment screw permit easy setting.
• Horizontal or vertical mounting of the remote element into boiler, tank, or other container.
• Case mounts to a vertical surface.
• For high or low limit temperature control of boiler water or liquid in tanks
