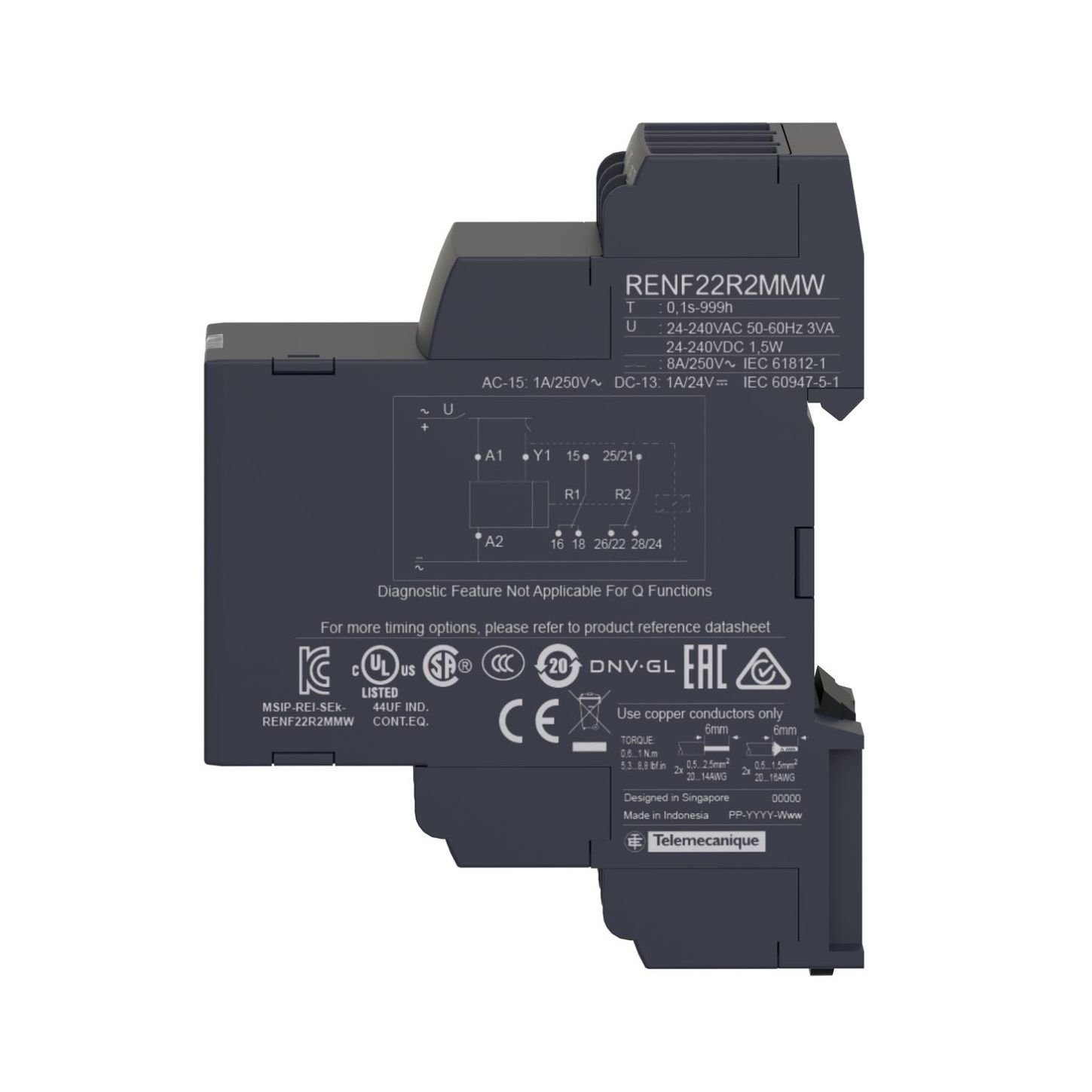

Schneider Electric RENF22R2MMW

Name: Schneider Electric RENF22R2MMW
Brand: Schneider Electric
SKU: CS5343555
Availability: OutOfStock

SKU: CS5343555MPN: RENF22R2MMW

multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s to 999h asymmetrical on delay and off delay 24 to 240V AC DC

Product Details

This modular timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers.

Attributes

Ambient Air Temperature For Operation	-20-60 °C
Ambient Air Temperature For Operation 1	-20-60 °C
Ambient Air Temperature For Storage	-40-70 °C
Device Short Name	RENF22
Directives	2014/35/EU - low voltage directive# #2014/53/EU - radio equipment directive# #2014/30/EU - electromagnetic compatibility
Discrete Output Type	relay
Housing Material	self-extinguishing
Immunity To Microbreaks	10 ms
Input Voltage	<= 2.4 V
Maximum Delay Response	100 ms
Maximum Operating Frequency	13.56 MHz
Maximum Switching Current	0.333
Mechanical Durability	10000000 cycles
Mounting Position	any position
Nominal Output Current	0.333
Nominal Power	0.0002 mW
Operating Distance	10 mm
Operating System	Android
Product Certifications	CE# #CSA# #KC# #UL# #CCC# #EAC# #DNV-GL
Product Compatibility	NFC enabled mobile device
Product Or Component Type	multifunction relay
Range Of Product	Harmony Timer Relays
Response Time	2 s
Software Version	V4.4 and above
Standards	EN 61000-6-1# #EN 61000-6-2# #EN 61000-6-4# #EN 61812-1# #EN 61000-6-3
Switching Capacity In Va	2000 VA
Temperature Drift	± 0.05 %/°C
Time Delay Range	0.1 s…999 h
Time Delay Type	power on-delay# #on-delay and off-delay# #pulse delay# #asymmetrical on-delay and off-delay# #interval# #off-delay# #symmetrical flashing# #safe-guard# #star-delta# #asymmetrical flashing# #bistable
Time Delay Type 1	power on-delay# #on-delay and off-delay# #pulse delay# #asymmetrical on-delay and off-delay# #interval# #off-delay# #symmetrical flashing# #safe-guard# #star-delta# #asymmetrical flashing# #bistable
Voltage Drift	± 0.2 %/V
Voltage Range	0.85…1.1 Un
