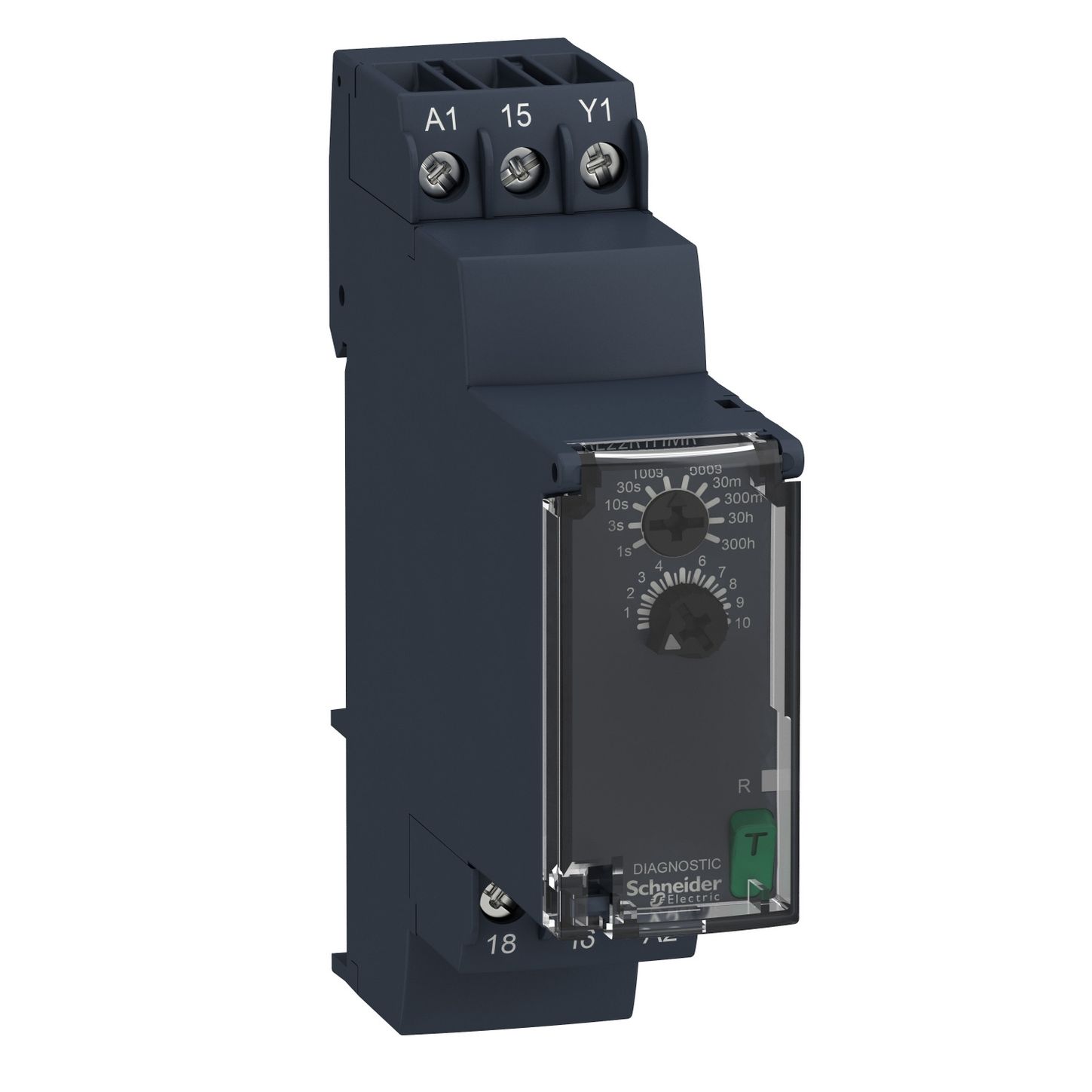

Schneider Electric RE22R1HMR

Name: Schneider Electric RE22R1HMR
Brand: Schneider Electric
SKU: CS3642248
Availability: OutOfStock

SKU: CS3642248MPN: RE22R1HMRAlternate Part #: SENA-RE22R1HMR

dual function relay, Harmony Timer Relays, 8A, 1CO, 0.05s…300h, interval relay, 24...240V AC DC

Discontinued - Contact Us For Pricing & Availability

Product Details

Interval Timing Relay, 0.05s…300h , 24…240V AC/DC, 1C/O

Ambient Air Temperature For Operation	-20-60 °C
Ambient Air Temperature For Operation 1	-20-60 °C
Ambient Air Temperature For Storage	-40-70 °C
Device Short Name	RE22
Directives	2006/95/EC - low voltage directive# #2004/108/EC - electromagnetic compatibility
Discrete Output Type	relay
Housing Material	self-extinguishing
Immunity To Microbreaks	10 ms
Input Voltage	<= 2.4 V
Maximum Delay Response	100 ms
Maximum Switching Current	0.333
Mechanical Durability	10000000 cycles
Nominal Output Current	0.333
Product Certifications	CE# #EAC# #CSA# #RCM# #CCC# #GL# #UL
Product Or Component Type	dual function relay
Range Of Product	Harmony Timer Relays
Safety Reliability Data	B10d = 280000# #MTTFd = 308.2 years
Standards	UL 508# #IEC 61812-1
Switching Capacity In Va	2000 VA
Temperature Drift	± 0.05 %/°C
Time Delay Range	3…30 s# #0.3…3 s# #30…300 s# #30…300 h# #0.05…1 s# #1…10 s# #3…30 min# #30…300 min# #3…30 h# #10…100 s
Time Delay Type	interval
Time Delay Type 1	interval
Voltage Drift	± 0.2 %/V
Voltage Range	0.85…1.1 Us
