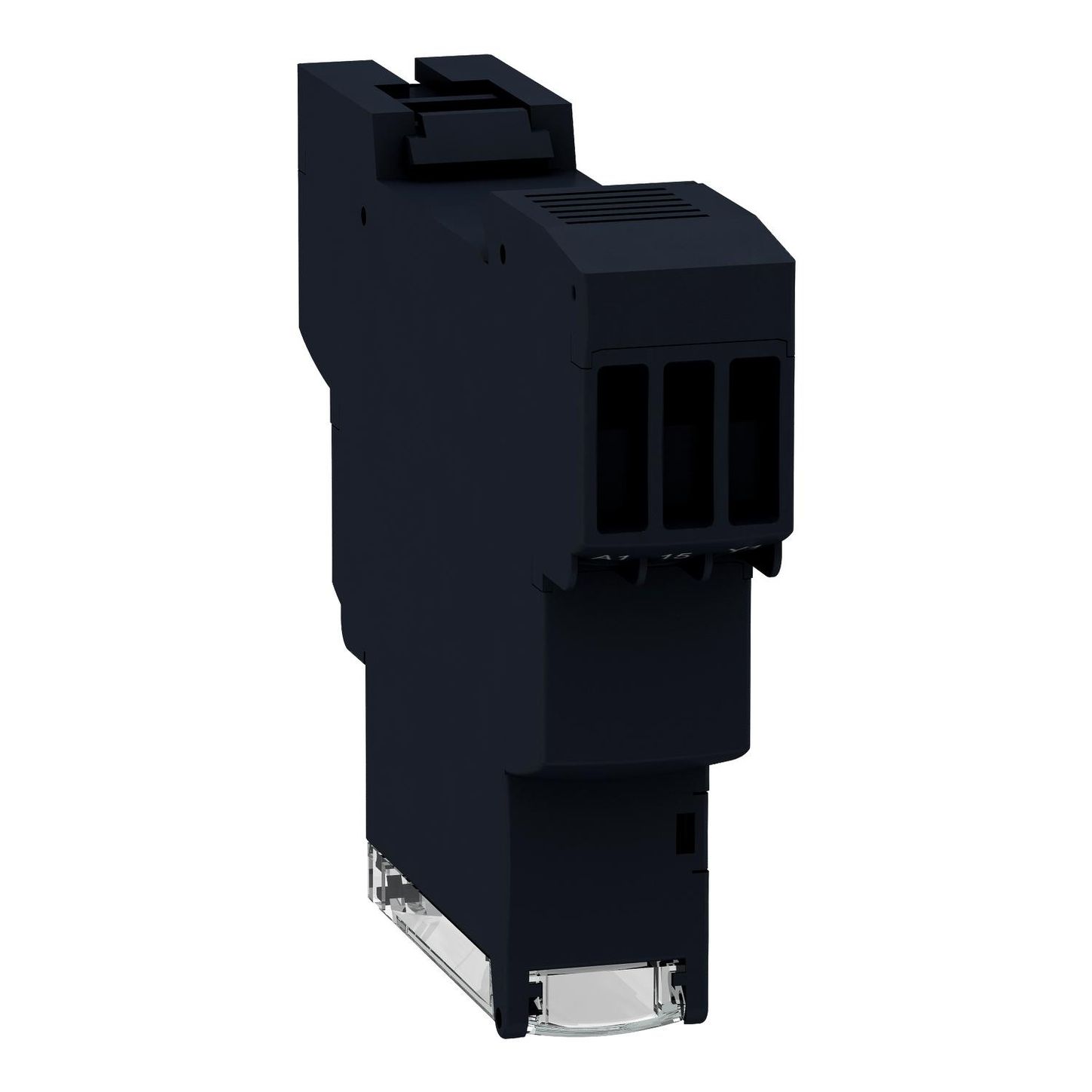

Square D RE17RHMU

Name: Square D RE17RHMU
Brand: Square D
SKU: CS4812635
Price: 53.70 USD
Availability: OutOfStock

SKU: CS4812635MPN: RE17RHMU

dual function relay, Harmony Timer Relays, 8A, 1CO, 1s..100h, on delay, cadmium free, 24V DC or 24...240V AC DC

$53.70

Unit

Available on backorder

Quantity

remove

add

Product Details

On-delay timing relay, 1 s..100 h - 24..240 V AC, 1 OC

Ambient Air Temperature For Operation	-20-60 °C
Ambient Air Temperature For Operation 1	-20-60 °C
Ambient Air Temperature For Storage	-30-60 °C
Breaking Capacity	2000 VA
Breaking Capacity 1	2000 VA
Compatibility Code	RE17
Contacts Material	cadmium free
Contacts Type And Composition	1 C/O
Device Short Name	RE17R
Discrete Output Type	relay
Functionality	on-delay timing
Housing Material	self-extinguishing
Immunity To Microbreaks	20 ms
Input Voltage	10 V
Marking	CE
Marking 1	CE
Maximum Delay Response	100 ms
Mechanical Durability	10000000 cycles
Nominal Output Current	0.333
On Load Factor	1.0000
Operating Rate In Hz	10 Hz
Product Certifications	cULus# #CSA# #GL
Product Or Component Type	dual function relay
Range Of Product	Harmony Timer Relays
Safety Reliability Data	B10d = 270000# #MTTFd = 296.8 years
Standards	EN 61000-6-4# #EN 61000-6-1# #2006/95/EC# #EN 61000-6-3# #IEC 61812-1# #2004/108/EC# #EN 61000-6-2
Temperature Drift	± 0.05 %/°C
Time Delay Range	10…100 h# #0.1…1 s# #6…60 min# #1…10 s# #1…10 min# #6…60 s# #1…10 h
Time Delay Type	interval
Time Delay Type 1	interval
Voltage Drift	± 0.2 %/V
Voltage Range	0.85…1.1 Us
