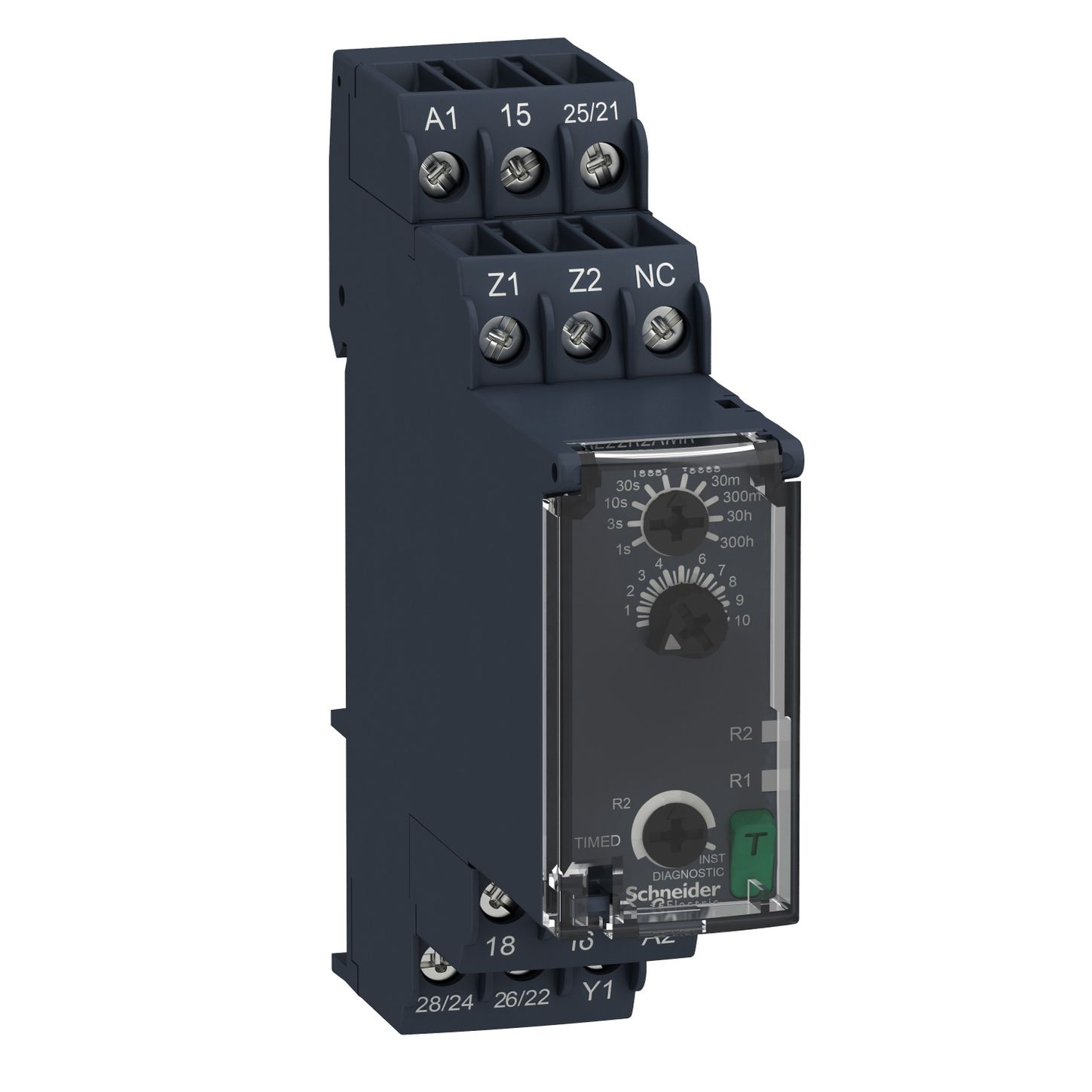

Square D RE22R2AMR

Name: Square D RE22R2AMR
Brand: Square D
SKU: CS3677388
Price: 95.62 USD
Availability: OutOfStock

SKU: CS3677388MPN: RE22R2AMR

dual function relay, Harmony Timer Relays, 8A, 2CO, 0.05s…300h, power on delay, 24...240V AC DC

$95.62

Unit

Available on backorder

Quantity

remove

add

Product Details

On-delay Timing Relay - 0.05s…300h - 24…240V AC/DC - 2C/O

Ambient Air Temperature For Operation	-20-60 °C
Ambient Air Temperature For Operation 1	-20-60 °C
Ambient Air Temperature For Storage	-40-70 °C
Device Short Name	RE22
Directives	2004/108/EC - electromagnetic compatibility# #2006/95/EC - low voltage directive
Discrete Output Type	relay
Housing Material	self-extinguishing
Immunity To Microbreaks	10 ms
Input Voltage	<= 2.4 V
Maximum Delay Response	100 ms
Maximum Switching Current	0.333
Mechanical Durability	10000000 cycles
Nominal Output Current	0.333
Product Certifications	CE# #CCC# #GL# #UL# #RCM# #EAC# #CSA
Product Or Component Type	dual function relay
Range Of Product	Harmony Timer Relays
Safety Reliability Data	B10d = 200000# #MTTFd = 216.8 years
Standards	UL 508# #IEC 61812-1
Switching Capacity In Va	2000 VA
Temperature Drift	± 0.05 %/°C
Time Delay Range	0.05…1 s# #0.3…3 s# #3…30 h# #30…300 min# #10…100 s# #30…300 s# #3…30 s# #30…300 h# #1…10 s# #3…30 min
Time Delay Type	power on-delay
Time Delay Type 1	power on-delay
Voltage Drift	± 0.2 %/V
Voltage Range	0.85…1.1 Us
