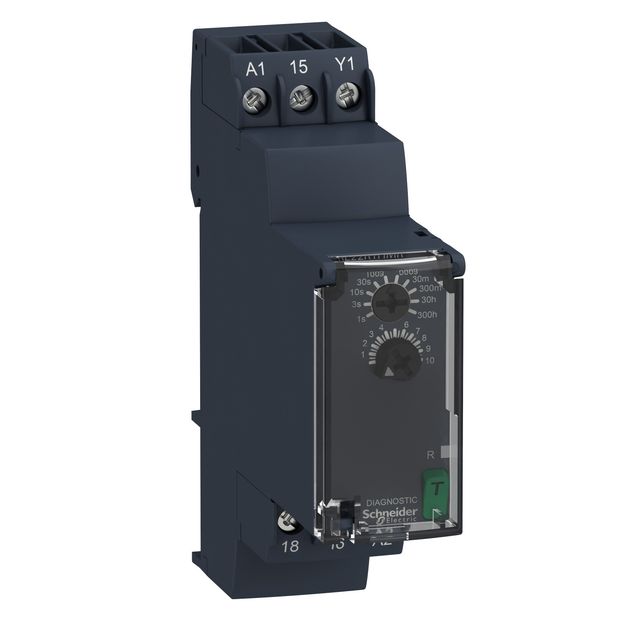

Square D RE22R2MYMR

Name: Square D RE22R2MYMR
Brand: Square D
SKU: CS3347948
Price: 98.92 USD
Availability: OutOfStock

SKU: CS3347948MPN: RE22R2MYMR

multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s…300h, screw connectors, 24...240V AC DC

$98.92

Unit

Available on backorder

Quantity

remove

add

Product Details

Zelio Modular Timing Relay

Time Delay Range: 0.5s - 300h* Rated Supply Voltage: 24-240V AC 50/60 Hz* Contacts Type and Composition: 1 C/O timed or instantaneous contact, cadmium free, 2 C/O timed contact, cadmium free* Rated Current: 8A AC* Degree of Protection: IP50 conforming to IEC 60529

Ambient Air Temperature For Operation	-20-60 °C
Ambient Air Temperature For Operation 1	-20-60 °C
Ambient Air Temperature For Storage	-40-70 °C
Device Short Name	RE22
Directives	2004/108/EC - electromagnetic compatibility# #2006/95/EC - low voltage directive
Discrete Output Type	relay
Housing Material	self-extinguishing
Immunity To Microbreaks	10 ms
Input Voltage	<= 2.4 V
Maximum Delay Response	100 ms
Maximum Switching Current	0.333
Mechanical Durability	10000000 cycles
Nominal Output Current	0.333
Product Certifications	RCM# #CE# #EAC# #CSA# #CCC# #UL# #GL
Product Or Component Type	multifunction relay
Range Of Product	Harmony Timer Relays
Safety Reliability Data	B10d = 160000# #MTTFd = 171.2 years
Standards	UL 508# #IEC 61812-1
Switching Capacity In Va	2000 VA
Temperature Drift	± 0.05 %/°C
Time Delay Range	3…30 min# #30…300 min# #0.3…3 s# #3…30 h# #10…100 s# #1…10 s# #0.05…1 s# #30…300 s# #30…300 h# #3…30 s
Time Delay Type	power on-delay# #off-delay# #symmetrical flashing# #interval# #star-delta
Time Delay Type 1	power on-delay# #off-delay# #symmetrical flashing# #interval# #star-delta
Voltage Drift	± 0.2 %/V
Voltage Range	0.85…1.1 Us
