Eaton 255907

SKU: CS5021040MPN: 255907

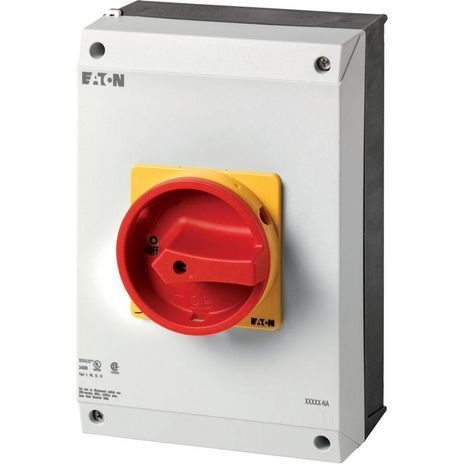

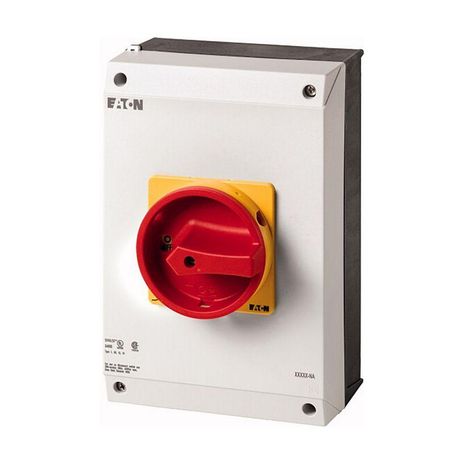

Eaton Moeller® series P3 Main switch

Eaton 255907
Eaton 255907
Eaton 255907
Eaton 255907
$1,150.50
Unit
Available on backorder
remove
add

Product Details

Eaton Moeller® series P3 Main switch, P3, 100 A, surface mounting, 3 pole, 1 N/O, 1 N/C, Emergency switching off function, With red rotary handle and yellow locking ring, UL/CSA

Attributes

10 10 Temperature Rise The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10 11 Short Circuit Rating Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10 12 Electromagnetic Compatibility Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10 13 Mechanical Function The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10 2 2 Corrosion Resistance Meets the product standard’s requirements.
10 2 3 1 Verification Of Thermal Stability Of Enclosures Meets the product standard’s requirements.
10 2 3 2 Verification Of Resistance Of Insulating Materials To Normal Heat Meets the product standard’s requirements.
10 2 3 3 Resist Of Insul Mat To Abnormal Heat Fire By Internal Elect Effects Meets the product standard’s requirements.
10 2 4 Resistance To Ultra Violet Uv Radiation UV resistance only in connection with protective shield.
10 2 5 Lifting Does not apply, since the entire switchgear needs to be evaluated.
10 2 6 Mechanical Impact Does not apply, since the entire switchgear needs to be evaluated.
10 2 7 Inscriptions Meets the product standard’s requirements.
10 3 Degree Of Protection Of Assemblies Does not apply, since the entire switchgear needs to be evaluated.
10 4 Clearances And Creepage Distances Meets the product standard’s requirements.
10 5 Protection Against Electric Shock Does not apply, since the entire switchgear needs to be evaluated.
10 6 Incorporation Of Switching Devices And Components Does not apply, since the entire switchgear needs to be evaluated.
10 7 Internal Electrical Circuits And Connections Is the panel builder’s responsibility.
10 8 Connections For External Conductors Is the panel builder’s responsibility.
10 9 2 Power Frequency Electric Strength Is the panel builder’s responsibility.
10 9 3 Impulse Withstand Voltage Is the panel builder’s responsibility.
10 9 4 Testing Of Enclosures Made Of Insulating Material Is the panel builder’s responsibility.
Accessories Auxiliary contact or neutral conductor fitted by user.
Actuator Color Red
Actuator Type Door coupling rotary drive
Ambient Operating Temperature Enclosed Max 40 CEL
Ambient Operating Temperature Enclosed Max Uom CEL
Ambient Operating Temperature Enclosed Min -25 CEL
Ambient Operating Temperature Enclosed Min Uom CEL
Ambient Operating Temperature Max 40 CEL
Ambient Operating Temperature Max Uom CEL
Ambient Operating Temperature Min -25 CEL
Ambient Operating Temperature Min Uom CEL
Assigned Motor Power At 115 120 V 60 Hz 1 Phase 5 A25
Assigned Motor Power At 115 120 V 60 Hz 1 Phase Uom A25
Assigned Motor Power At 200 208 V 60 Hz 1 Phase 10 A25
Assigned Motor Power At 200 208 V 60 Hz 1 Phase Uom A25
Assigned Motor Power At 200 208 V 60 Hz 3 Phase 20 A25
Assigned Motor Power At 200 208 V 60 Hz 3 Phase Uom A25
Assigned Motor Power At 230 240 V 60 Hz 1 Phase 15 A25
Assigned Motor Power At 230 240 V 60 Hz 1 Phase Uom A25
Assigned Motor Power At 230 240 V 60 Hz 3 Phase 25 A25
Assigned Motor Power At 230 240 V 60 Hz 3 Phase Uom A25
Assigned Motor Power At 460 480 V 60 Hz 3 Phase 60 A25
Assigned Motor Power At 460 480 V 60 Hz 3 Phase Uom A25
Assigned Motor Power At 575 600 V 60 Hz 3 Phase 75 A25
Assigned Motor Power At 575 600 V 60 Hz 3 Phase Uom A25
Climatic Proofing Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78
Control Circuit Reliability 1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)
Degree Of Protection NEMA 12
Degree Of Protection Front Side IP65
Device Construction Complete device in housing
Electrical Connection Type Of Main Circuit Screw connection
Equipment Heat Dissipation Current Dependent Pvid 7.5 WTT
Equipment Heat Dissipation Current Dependent Pvid Uom WTT
Features Version as maintenance-/service switch Version as main switch Version as emergency stop installation
Fitted With Red rotary handle and yellow locking ring
Functions Interlockable Emergency switching off function
Heat Dissipation Capacity Pdiss 0 WTT
Heat Dissipation Capacity Pdiss Uom WTT
Heat Dissipation Per Pole Current Dependent Pvid 7.5 WTT
Heat Dissipation Per Pole Current Dependent Pvid Uom WTT
Lifespan Mechanical 100,000 Operations
Load Rating 1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor) 1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor) 2 x Iₑ (with intermittent operation class 12, 25 % duty factor)
Mounting Method Surface mounting
Mounting Position As required
Number Of Auxiliary Contacts Change Over Contacts 0.0000
Number Of Auxiliary Contacts Normally Closed Contacts 1.0000
Number Of Auxiliary Contacts Normally Open Contacts 1.0000
Number Of Contacts In Series At Dc 23A 120 V 3.0000
Number Of Contacts In Series At Dc 23A 24 V 1.0000
Number Of Contacts In Series At Dc 23A 48 V 2.0000
Number Of Contacts In Series At Dc 23A 60 V 2.0000
Number Of Poles 3
Number Of Switches 1.0000
Operating Frequency 1200 Operations/h
Overvoltage Category III
Pollution Degree 3.0000
Product Category Main switch
Rated Breaking Capacity At 220 230 V Cos Phi To Iec 60947 3 760 AMP
Rated Breaking Capacity At 220 230 V Cos Phi To Iec 60947 3 Uom AMP
Rated Breaking Capacity At 400 415 V Cos Phi To Iec 60947 3 740 AMP
Rated Breaking Capacity At 400 415 V Cos Phi To Iec 60947 3 Uom AMP
Rated Breaking Capacity At 500 V Cos Phi To Iec 60947 3 880 AMP
Rated Breaking Capacity At 500 V Cos Phi To Iec 60947 3 Uom AMP
Rated Breaking Capacity At 660 690 V Cos Phi To Iec 60947 3 520 AMP
Rated Breaking Capacity At 660 690 V Cos Phi To Iec 60947 3 Uom AMP
Rated Conditional Short Circuit Current Iq 4 kA (Load side) 80 kA (Supply side)
Rated Impulse Withstand Voltage Uimp 6000 V AC
Rated Making Capacity Up To 690 V Cos Phi To Iec En 60947 3 950 AMP
Rated Making Capacity Up To 690 V Cos Phi To Iec En 60947 3 Uom AMP
Rated Operating Voltage Ue Max 690 VLT
Rated Operating Voltage Ue Max Uom VLT
Rated Operating Voltage Ue Min 690 VLT
Rated Operating Voltage Ue Min Uom VLT
Rated Operational Current For Specified Heat Dissipation In 100 AMP
Rated Operational Current For Specified Heat Dissipation In Uom AMP
Rated Operational Current Ie At Ac 21 440 V 100 AMP
Rated Operational Current Ie At Ac 21 440 V Uom AMP
Rated Operational Current Ie At Ac 23A 230 V 100 AMP
Rated Operational Current Ie At Ac 23A 230 V Uom AMP
Rated Operational Current Ie At Ac 23A 400 V 415 V 100 AMP
Rated Operational Current Ie At Ac 23A 400 V 415 V Uom AMP
Rated Operational Current Ie At Ac 23A 500 V 96 AMP
Rated Operational Current Ie At Ac 23A 500 V Uom AMP
Rated Operational Current Ie At Ac 23A 690 V 68 AMP
Rated Operational Current Ie At Ac 23A 690 V Uom AMP
Rated Operational Current Ie At Ac 3 220 V 230 V 240 V 71 AMP
Rated Operational Current Ie At Ac 3 220 V 230 V 240 V Uom AMP
Rated Operational Current Ie At Ac 3 380 V 400 V 415 V 71 AMP
Rated Operational Current Ie At Ac 3 380 V 400 V 415 V Uom AMP
Rated Operational Current Ie At Ac 3 500 V 65 AMP
Rated Operational Current Ie At Ac 3 500 V Uom AMP
Rated Operational Current Ie At Ac 3 660 V 690 V 23.8 AMP
Rated Operational Current Ie At Ac 3 660 V 690 V Uom AMP
Rated Operational Current Ie At Dc 1 Load Break Switches L R 1 Ms 100 AMP
Rated Operational Current Ie At Dc 1 Load Break Switches L R 1 Ms Uom AMP
Rated Operational Current Ie At Dc 23A 120 V 25 AMP
Rated Operational Current Ie At Dc 23A 120 V Uom AMP
Rated Operational Current Ie At Dc 23A 24 V 50 AMP
Rated Operational Current Ie At Dc 23A 24 V Uom AMP
Rated Operational Current Ie At Dc 23A 48 V 50 AMP
Rated Operational Current Ie At Dc 23A 48 V Uom AMP
Rated Operational Current Ie At Dc 23A 60 V 50 AMP
Rated Operational Current Ie At Dc 23A 60 V Uom AMP
Rated Operational Power At Ac 23A 220 230 V 50 Hz 30 KWT
Rated Operational Power At Ac 23A 220 230 V 50 Hz Uom KWT
Rated Operational Power At Ac 23A 400 V 50 Hz 55 KWT
Rated Operational Power At Ac 23A 400 V 50 Hz Uom KWT
Rated Operational Power At Ac 23A 500 V 50 Hz 55 KWT
Rated Operational Power At Ac 23A 500 V 50 Hz Uom KWT
Rated Operational Power At Ac 23A 690 V 50 Hz 55 KWT
Rated Operational Power At Ac 23A 690 V 50 Hz Uom KWT
Rated Operational Power At Ac 3 380 400 V 50 Hz 37 KWT
Rated Operational Power At Ac 3 380 400 V 50 Hz Uom KWT
Rated Operational Power At Ac 3 415 V 50 Hz 37 KWT
Rated Operational Power At Ac 3 415 V 50 Hz Uom KWT
Rated Operational Power At Ac 3 500 V 50 Hz 45 KWT
Rated Operational Power At Ac 3 500 V 50 Hz Uom KWT
Rated Operational Power At Ac 3 690 V 50 Hz 37 KWT
Rated Operational Power At Ac 3 690 V 50 Hz Uom KWT
Rated Operational Voltage Ue At Ac Max 690 VLT
Rated Operational Voltage Ue At Ac Max Uom VLT
Rated Permanent Current At Ac 21 400 V 100 AMP
Rated Permanent Current At Ac 21 400 V Uom AMP
Rated Permanent Current At Ac 23 400 V 100 AMP
Rated Permanent Current At Ac 23 400 V Uom AMP
Rated Short Time Withstand Current Icw 2 kA
Rated Switching Capacity 10 HP at 200 V AC, single-phase 15 HP at 240 V AC, single-phase 20 HP at 200 V AC, three-phase 25 HP at 240 V AC, three-phase 5 HP at 120 V AC, single-phase 60 HP at 480 V AC, three-phase 75 HP at 600 V AC, three-phase
Rated Uninterrupted Current Iu 100 AMP
Rated Uninterrupted Current Iu Uom AMP
Safe Isolation 440 V AC, Between the contacts, According to EN 61140
Safety Parameter En Iso 13849 1 B10d values as per EN ISO 13849-1, table C.1
Screw Size M5, Terminal screw
Shock Resistance 15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms
Short Circuit Current Rating Basic Rating 10 kA, SCCR (UL/CSA) 150A, max. Fuse, SCCR (UL/CSA)
Short Circuit Protection Rating 100 A gG/gL, Fuse, Contacts
Static Heat Dissipation Non Current Dependent Pvs 0 WTT
Static Heat Dissipation Non Current Dependent Pvs Uom WTT
Suitable For Ground mounting Branch circuits, suitable as motor disconnect, (UL/CSA)
Switching Capacity Auxiliary Contacts General Use 10A, IU, (UL/CSA)
Switching Capacity Auxiliary Contacts Pilot Duty A600 (UL/CSA) P600 (UL/CSA)
Switching Capacity Main Contacts General Use 100 A, If used with neutral conductor IU = max. 90 A, Rated uninterrupted current max. (UL/CSA)
Switching Power At 400 V 55 KWT
Switching Power At 400 V Uom KWT
Terminal Capacity 1 x (1.5 - 25) mm², flexible with ferrules to DIN 46228 2 x (1.5 - 6) mm², flexible with ferrules to DIN 46228 1 x (2.5 - 35) mm², solid or stranded 14 - 2 AWG, solid or flexible with ferrule 2 x (2.5 - 10) mm², solid or stranded
Tightening Torque 3 Nm, Screw terminals 26.5 lb-in, Screw terminals
Type Main switch
Uninterrupted Current Rated uninterrupted current Iu is specified for max. cross-section.
Voltage Per Contact Pair In Series 60 VLT
Voltage Per Contact Pair In Series Uom VLT

Specifications

SKUCS5021040
MPN255907
