All ProductsEaton

Eaton 200127

SKU: CS5020381MPN: 200127UPC/EAN: 04015082001278

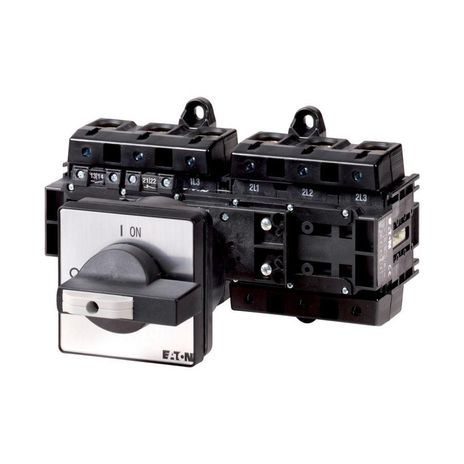

Eaton Moeller® series T6 Main switch

Eaton 092229, 200127, 207426, 212321, T0-1-102/E, T0-1-102/I1/SVB, T0-1-102/I1/SVB-SW, T0-1-102/IVS, T0-1-102/Z, T0-1-15322/E, T0-1-15366/E, T0-1-15371/E, T0-1-15421/E, T0-1-15421/I1, T0-1-15434/E
Eaton 200127
Eaton 092229, 200127, 207426, 212321, T0-1-102/E, T0-1-102/I1/SVB, T0-1-102/I1/SVB-SW, T0-1-102/IVS, T0-1-102/Z, T0-1-15322/E, T0-1-15366/E, T0-1-15371/E, T0-1-15421/E, T0-1-15421/I1, T0-1-15434/E
Eaton 200127
Contact us for pricing and availability

Product Details

Eaton Moeller® series T6 Main switch, T6, 160 A, rear mounting, 6 contact unit(s), 6 pole, 1 N/O, 1 N/C, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position

Attributes

10 10 Temperature Rise The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10 11 Short Circuit Rating Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10 12 Electromagnetic Compatibility Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10 13 Mechanical Function The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10 2 2 Corrosion Resistance Meets the product standard’s requirements.
10 2 3 1 Verification Of Thermal Stability Of Enclosures Meets the product standard’s requirements.
10 2 3 2 Verification Of Resistance Of Insulating Materials To Normal Heat Meets the product standard’s requirements.
10 2 3 3 Resist Of Insul Mat To Abnormal Heat Fire By Internal Elect Effects Meets the product standard’s requirements.
10 2 4 Resistance To Ultra Violet Uv Radiation UV resistance only in connection with protective shield.
10 2 5 Lifting Does not apply, since the entire switchgear needs to be evaluated.
10 2 6 Mechanical Impact Does not apply, since the entire switchgear needs to be evaluated.
10 2 7 Inscriptions Meets the product standard’s requirements.
10 3 Degree Of Protection Of Assemblies Does not apply, since the entire switchgear needs to be evaluated.
10 4 Clearances And Creepage Distances Meets the product standard’s requirements.
10 5 Protection Against Electric Shock Does not apply, since the entire switchgear needs to be evaluated.
10 6 Incorporation Of Switching Devices And Components Does not apply, since the entire switchgear needs to be evaluated.
10 7 Internal Electrical Circuits And Connections Is the panel builder’s responsibility.
10 8 Connections For External Conductors Is the panel builder’s responsibility.
10 9 2 Power Frequency Electric Strength Is the panel builder’s responsibility.
10 9 3 Impulse Withstand Voltage Is the panel builder’s responsibility.
10 9 4 Testing Of Enclosures Made Of Insulating Material Is the panel builder’s responsibility.
Actuator Color Black
Actuator Type Door coupling rotary drive
Ambient Operating Temperature Enclosed Max 40 CEL
Ambient Operating Temperature Enclosed Max Uom CEL
Ambient Operating Temperature Enclosed Min -25 CEL
Ambient Operating Temperature Enclosed Min Uom CEL
Ambient Operating Temperature Max 50 CEL
Ambient Operating Temperature Max Uom CEL
Ambient Operating Temperature Min -25 CEL
Ambient Operating Temperature Min Uom CEL
Climatic Proofing Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78
Control Circuit Reliability 1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)
Degree Of Protection NEMA 12
Degree Of Protection Front Side IP65
Design 160
Device Construction Built-in device fixed built-in technique
Electrical Connection Type Of Main Circuit Screw connection
Equipment Heat Dissipation Current Dependent Pvid 11 WTT
Equipment Heat Dissipation Current Dependent Pvid Uom WTT
Features Version as maintenance-/service switch Version as main switch
Fitted With Black rotary handle and locking ring
Functions Interlockable STOP function
Heat Dissipation Capacity Pdiss 0 WTT
Heat Dissipation Capacity Pdiss Uom WTT
Heat Dissipation Per Pole Current Dependent Pvid 11 WTT
Heat Dissipation Per Pole Current Dependent Pvid Uom WTT
Lifespan Mechanical 100,000 Operations
Load Rating 2 x Iₑ (with intermittent operation class 12, 25 % duty factor) 1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor) 1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor)
Locking Facility Lockable in the 0 (Off) position
Mounting Method Rear mounting
Mounting Position As required
Number Of Auxiliary Contacts Change Over Contacts 0.0000
Number Of Auxiliary Contacts Normally Closed Contacts 1.0000
Number Of Auxiliary Contacts Normally Open Contacts 1.0000
Number Of Contact Units 6.0000
Number Of Contacts In Series At Dc 23A 120 V 3.0000
Number Of Contacts In Series At Dc 23A 24 V 1.0000
Number Of Contacts In Series At Dc 23A 48 V 2.0000
Number Of Contacts In Series At Dc 23A 60 V 3.0000
Number Of Poles 6
Number Of Switches 1.0000
Operating Frequency 50 Operations/h
Overvoltage Category III
Pollution Degree 3.0000
Product Category Main switch
Rated Breaking Capacity At 220 230 V Cos Phi To Iec 60947 3 1280 AMP
Rated Breaking Capacity At 220 230 V Cos Phi To Iec 60947 3 Uom AMP
Rated Breaking Capacity At 400 415 V Cos Phi To Iec 60947 3 900 AMP
Rated Breaking Capacity At 400 415 V Cos Phi To Iec 60947 3 Uom AMP
Rated Breaking Capacity At 500 V Cos Phi To Iec 60947 3 880 AMP
Rated Breaking Capacity At 500 V Cos Phi To Iec 60947 3 Uom AMP
Rated Breaking Capacity At 660 690 V Cos Phi To Iec 60947 3 340 AMP
Rated Breaking Capacity At 660 690 V Cos Phi To Iec 60947 3 Uom AMP
Rated Conditional Short Circuit Current Iq 30 kA
Rated Impulse Withstand Voltage Uimp 8000 V AC
Rated Making Capacity Up To 690 V Cos Phi To Iec En 60947 3 1600 AMP
Rated Making Capacity Up To 690 V Cos Phi To Iec En 60947 3 Uom AMP
Rated Operating Voltage Ue Max 690 VLT
Rated Operating Voltage Ue Max Uom VLT
Rated Operating Voltage Ue Min 690 VLT
Rated Operating Voltage Ue Min Uom VLT
Rated Operational Current For Specified Heat Dissipation In 160 AMP
Rated Operational Current For Specified Heat Dissipation In Uom AMP
Rated Operational Current Ie At Ac 21 440 V 160 AMP
Rated Operational Current Ie At Ac 21 440 V Uom AMP
Rated Operational Current Ie At Ac 23A 230 V 103 AMP
Rated Operational Current Ie At Ac 23A 230 V Uom AMP
Rated Operational Current Ie At Ac 23A 400 V 415 V 105 AMP
Rated Operational Current Ie At Ac 23A 400 V 415 V Uom AMP
Rated Operational Current Ie At Ac 23A 500 V 106 AMP
Rated Operational Current Ie At Ac 23A 500 V Uom AMP
Rated Operational Current Ie At Ac 23A 690 V 42 AMP
Rated Operational Current Ie At Ac 23A 690 V Uom AMP
Rated Operational Current Ie At Ac 3 220 V 230 V 240 V 103 AMP
Rated Operational Current Ie At Ac 3 220 V 230 V 240 V Uom AMP
Rated Operational Current Ie At Ac 3 380 V 400 V 415 V 85 AMP
Rated Operational Current Ie At Ac 3 380 V 400 V 415 V Uom AMP
Rated Operational Current Ie At Ac 3 500 V 78 AMP
Rated Operational Current Ie At Ac 3 500 V Uom AMP
Rated Operational Current Ie At Ac 3 660 V 690 V 42 AMP
Rated Operational Current Ie At Ac 3 660 V 690 V Uom AMP
Rated Operational Current Ie At Dc 13 Control Switches L R 50 Ms 125 AMP
Rated Operational Current Ie At Dc 13 Control Switches L R 50 Ms Uom AMP
Rated Operational Current Ie At Dc 1 Load Break Switches L R 1 Ms 125 AMP
Rated Operational Current Ie At Dc 1 Load Break Switches L R 1 Ms Uom AMP
Rated Operational Current Ie At Dc 23A 120 V 50 AMP
Rated Operational Current Ie At Dc 23A 120 V Uom AMP
Rated Operational Current Ie At Dc 23A 24 V 125 AMP
Rated Operational Current Ie At Dc 23A 24 V Uom AMP
Rated Operational Current Ie At Dc 23A 48 V 125 AMP
Rated Operational Current Ie At Dc 23A 48 V Uom AMP
Rated Operational Current Ie At Dc 23A 60 V 125 AMP
Rated Operational Current Ie At Dc 23A 60 V Uom AMP
Rated Operational Current Ie Star Delta At Ac 3 220 230 V 103 AMP
Rated Operational Current Ie Star Delta At Ac 3 220 230 V Uom AMP
Rated Operational Current Ie Star Delta At Ac 3 380 400 V 85 AMP
Rated Operational Current Ie Star Delta At Ac 3 380 400 V Uom AMP
Rated Operational Current Ie Star Delta At Ac 3 500 V 78 AMP
Rated Operational Current Ie Star Delta At Ac 3 500 V Uom AMP
Rated Operational Current Ie Star Delta At Ac 3 690 V 42 AMP
Rated Operational Current Ie Star Delta At Ac 3 690 V Uom AMP
Rated Operational Power At Ac 23A 220 230 V 50 Hz 30 KWT
Rated Operational Power At Ac 23A 220 230 V 50 Hz Uom KWT
Rated Operational Power At Ac 23A 400 V 50 Hz 55 KWT
Rated Operational Power At Ac 23A 400 V 50 Hz Uom KWT
Rated Operational Power At Ac 23A 500 V 50 Hz 75 KWT
Rated Operational Power At Ac 23A 500 V 50 Hz Uom KWT
Rated Operational Power At Ac 23A 690 V 50 Hz 37 KWT
Rated Operational Power At Ac 23A 690 V 50 Hz Uom KWT
Rated Operational Power At Ac 3 380 400 V 50 Hz 45 KWT
Rated Operational Power At Ac 3 380 400 V 50 Hz Uom KWT
Rated Operational Power At Ac 3 415 V 50 Hz 45 KWT
Rated Operational Power At Ac 3 415 V 50 Hz Uom KWT
Rated Operational Power At Ac 3 500 V 50 Hz 55 KWT
Rated Operational Power At Ac 3 500 V 50 Hz Uom KWT
Rated Operational Power At Ac 3 690 V 50 Hz 37 KWT
Rated Operational Power At Ac 3 690 V 50 Hz Uom KWT
Rated Operational Power Star Delta At 220 230 V 50 Hz 30 KWT
Rated Operational Power Star Delta At 220 230 V 50 Hz Uom KWT
Rated Operational Power Star Delta At 380 400 V 50 Hz 45 KWT
Rated Operational Power Star Delta At 380 400 V 50 Hz Uom KWT
Rated Operational Power Star Delta At 500 V 50 Hz 55 KWT
Rated Operational Power Star Delta At 500 V 50 Hz Uom KWT
Rated Operational Power Star Delta At 690 V 50 Hz 37 KWT
Rated Operational Power Star Delta At 690 V 50 Hz Uom KWT
Rated Permanent Current At Ac 21 400 V 160 AMP
Rated Permanent Current At Ac 21 400 V Uom AMP
Rated Permanent Current At Ac 23 400 V 105 AMP
Rated Permanent Current At Ac 23 400 V Uom AMP
Rated Short Time Withstand Current Icw 3 kA, Contacts, 1 second 3 kA
Rated Uninterrupted Current Iu 160 AMP
Rated Uninterrupted Current Iu Uom AMP
Safe Isolation 440 V AC, Between the contacts, According to EN 61140
Safety Parameter En Iso 13849 1 B10d values as per EN ISO 13849-1, table C.1
Screw Size M5, Inbus, Terminal screw
Short Circuit Protection Rating 160 A gG/gL, Fuse, Contacts
Static Heat Dissipation Non Current Dependent Pvs 0 WTT
Static Heat Dissipation Non Current Dependent Pvs Uom WTT
Suitable For Intermediate mounting Ground mounting
Switching Angle 90 DD
Switching Angle Uom DD
Switching Power At 400 V 55 KWT
Switching Power At 400 V Uom KWT
Terminal Capacity 1 x 13 x 3 mm Number of segments x width x thickness, copper strip 1 x 50 mm², flexible with ferrules to DIN 46228 2 x 35 mm², solid or stranded 2 x 13 x 1.5 mm Number of segments x width x thickness, copper strip 1 x 70 mm², solid or stranded 2 x 25 mm², flexible with ferrules to DIN 46228
Tightening Torque 4.5 Nm, Screw terminals 39.8 lb-in, Screw terminals
Uninterrupted Current Rated uninterrupted current Iu is specified for max. cross-section.
Voltage Per Contact Pair In Series 42 VLT
Voltage Per Contact Pair In Series Uom VLT

Specifications

SKUCS5020381
MPN200127
UPC/EAN04015082001278
