Eaton 277862

Name: Eaton 277862
Brand: Eaton
SKU: CS5021223
Price: 559.40 USD
Availability: OutOfStock

SKU: CS5021223MPN: 277862UPC/EAN: 04015082778620

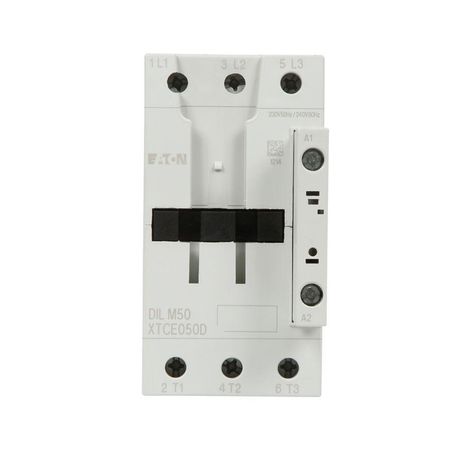

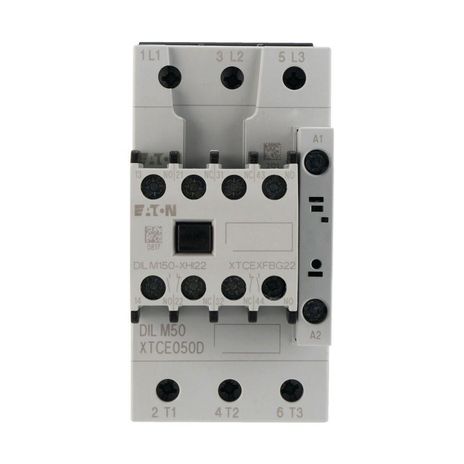

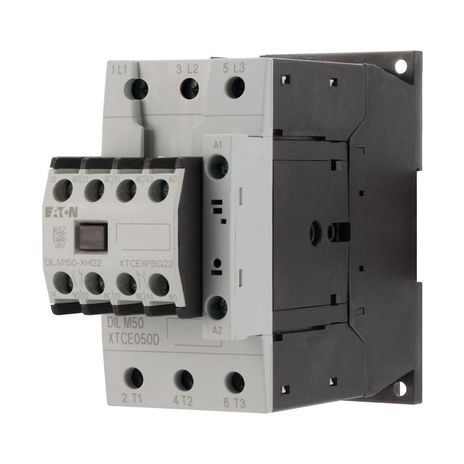

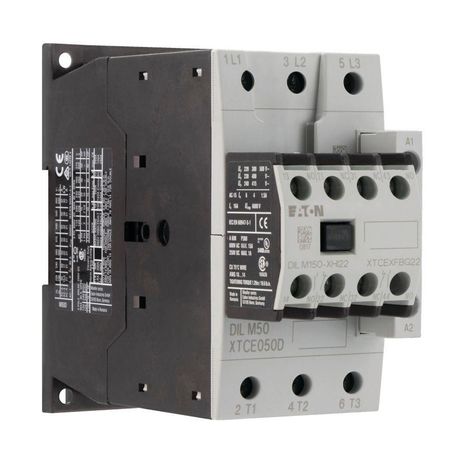

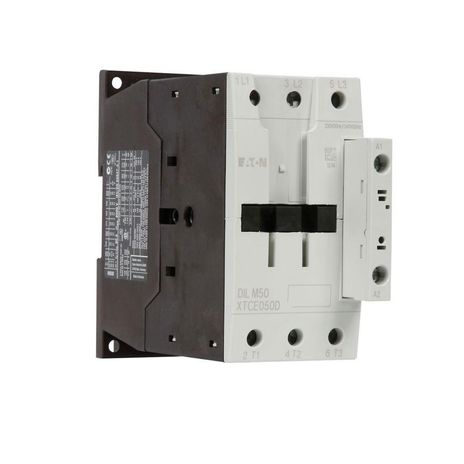

Eaton Moeller® series DILM contactor

Product Details

Eaton Moeller® series DILM Contactor, 380 V 400 V 22 kW, 2 N/O, 2 NC, 230 V 50 Hz, 240 V 60 Hz, AC operation, Screw terminals

Attributes

10 10 Temperature Rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10 11 Short Circuit Rating	Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10 12 Electromagnetic Compatibility	Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10 13 Mechanical Function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10 2 2 Corrosion Resistance	Meets the product standard’s requirements.
10 2 3 1 Verification Of Thermal Stability Of Enclosures	Meets the product standard’s requirements.
10 2 3 2 Verification Of Resistance Of Insulating Materials To Normal Heat	Meets the product standard’s requirements.
10 2 3 3 Resist Of Insul Mat To Abnormal Heat Fire By Internal Elect Effects	Meets the product standard’s requirements.
10 2 4 Resistance To Ultra Violet Uv Radiation	Meets the product standard’s requirements.
10 2 5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
10 2 6 Mechanical Impact	Does not apply, since the entire switchgear needs to be evaluated.
10 2 7 Inscriptions	Meets the product standard’s requirements.
10 3 Degree Of Protection Of Assemblies	Does not apply, since the entire switchgear needs to be evaluated.
10 4 Clearances And Creepage Distances	Meets the product standard’s requirements.
10 5 Protection Against Electric Shock	Does not apply, since the entire switchgear needs to be evaluated.
10 6 Incorporation Of Switching Devices And Components	Does not apply, since the entire switchgear needs to be evaluated.
10 7 Internal Electrical Circuits And Connections	Is the panel builder’s responsibility.
10 8 Connections For External Conductors	Is the panel builder’s responsibility.
10 9 2 Power Frequency Electric Strength	Is the panel builder’s responsibility.
10 9 3 Impulse Withstand Voltage	Is the panel builder’s responsibility.
10 9 4 Testing Of Enclosures Made Of Insulating Material	Is the panel builder’s responsibility.
Actuating Voltage	230 V 50 Hz, 240 V 60 Hz
Altitude	Max. 2000 m
Ambient Operating Temperature Enclosed Max	40 CEL
Ambient Operating Temperature Enclosed Max Uom	CEL
Ambient Operating Temperature Enclosed Min	-25 CEL
Ambient Operating Temperature Enclosed Min Uom	CEL
Ambient Operating Temperature Max	60 CEL
Ambient Operating Temperature Max Uom	CEL
Ambient Operating Temperature Min	-25 CEL
Ambient Operating Temperature Min Uom	CEL
Ambient Storage Temperature Max	80 CEL
Ambient Storage Temperature Max Uom	CEL
Ambient Storage Temperature Min	-40 CEL
Ambient Storage Temperature Min Uom	CEL
Amperage Rating	170A
Application	Contactors for Motors
Arcing Time	10 ms
Assigned Motor Power At 115 120 V 60 Hz 1 Phase	3 A25
Assigned Motor Power At 115 120 V 60 Hz 1 Phase Uom	A25
Assigned Motor Power At 200 208 V 60 Hz 3 Phase	15 A25
Assigned Motor Power At 200 208 V 60 Hz 3 Phase Uom	A25
Assigned Motor Power At 230 240 V 60 Hz 1 Phase	10 A25
Assigned Motor Power At 230 240 V 60 Hz 1 Phase Uom	A25
Assigned Motor Power At 230 240 V 60 Hz 3 Phase	20 A25
Assigned Motor Power At 230 240 V 60 Hz 3 Phase Uom	A25
Assigned Motor Power At 460 480 V 60 Hz 3 Phase	40 A25
Assigned Motor Power At 460 480 V 60 Hz 3 Phase Uom	A25
Assigned Motor Power At 575 600 V 60 Hz 3 Phase	50 A25
Assigned Motor Power At 575 600 V 60 Hz 3 Phase Uom	A25
Climatic Proofing	Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78
Coil Voltage	230-240 Vac, 50/60 Hz
Connection	Screw terminals
Contact Configuration	2 NO, 2 NC
Continuous Ampere Rating	50 A
Conventional Thermal Current Ith 1 Pole Enclosed	145 AMP
Conventional Thermal Current Ith 1 Pole Enclosed Uom	AMP
Conventional Thermal Current Ith 3 Pole Enclosed	58 AMP
Conventional Thermal Current Ith 3 Pole Enclosed Uom	AMP
Conventional Thermal Current Ith At 40 C 3 Pole Open	80 AMP
Conventional Thermal Current Ith At 40 C 3 Pole Open Uom	AMP
Conventional Thermal Current Ith At 50 C 3 Pole Open	71 AMP
Conventional Thermal Current Ith At 50 C 3 Pole Open Uom	AMP
Conventional Thermal Current Ith At 55 C 3 Pole Open	68 AMP
Conventional Thermal Current Ith At 55 C 3 Pole Open Uom	AMP
Conventional Thermal Current Ith At 60 C 3 Pole Open	65 AMP
Conventional Thermal Current Ith At 60 C 3 Pole Open Uom	AMP
Conventional Thermal Current Ith Of Main Contacts 1 Pole Open	162 AMP
Conventional Thermal Current Ith Of Main Contacts 1 Pole Open Uom	AMP
Degree Of Protection	IP00
Drop Out Voltage	AC operated: 0.6 - 0.3 x UC, AC operated
Duty Factor	100 %
Electrical Connection Type Of Main Circuit	Screw connection
Emitted Interference	According to EN 60947-1
Equipment Heat Dissipation Current Dependent Pvid	9.9 WTT
Equipment Heat Dissipation Current Dependent Pvid Uom	WTT
Fitted With	Mirror contact
Frequency Rating	50-60 Hz
Heat Dissipation Capacity Pdiss	0 WTT
Heat Dissipation Capacity Pdiss Uom	WTT
Heat Dissipation Per Pole Current Dependent Pvid	3.3 WTT
Heat Dissipation Per Pole Current Dependent Pvid Uom	WTT
Hp Rating Max	3, 10/ 15, 20, 40, 50 hp (⅓PH @120, 240/208, 240, 480, 600 V)
Interference Immunity	According to EN 60947-1
Lifespan Mechanical	7,000,000 Operations (Coil 50/60 Hz) 10,000,000 Operations (AC operated)
Number Of Auxiliary Contacts Normally Closed Contacts	2.0000
Number Of Auxiliary Contacts Normally Open Contacts	2.0000
Number Of Contacts Normally Closed As Main Contact	0.0000
Number Of Contacts Normally Closed Contacts	2.0000
Number Of Contacts Normally Open Contacts	2.0000
Number Of Main Contacts Normally Open Contact	3.0000
Number Of Poles	Three-pole
Operating Frequency	5000 mechanical Operations/h (AC operated)
Operating Temperature	-25° to 60°C
Operating Temperature Max	60 CEL
Operating Temperature Max Uom	CEL
Operating Temperature Min	-25 CEL
Operating Temperature Min Uom	CEL
Operating Voltage At Ac 50 Hz Max	690 VLT
Operating Voltage At Ac 50 Hz Min	230 VLT
Operating Voltage At Ac 60 Hz Max	690 VLT
Operating Voltage At Ac 60 Hz Min	230 VLT
Operation	Non-reversing
Overvoltage Category	III
Pick Up Voltage	0.8 - 1.1 V AC x Uc
Pollution Degree	3.0000
Power Consumption	22 kW
Power Consumption Pick Up 50 Hz	149 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz
Power Consumption Pick Up 60 Hz	178 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz
Power Consumption Sealing 50 Hz	4.1 W, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz 16 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz 5.3 W, Dual-frequency coil in a cold state and 1.0 x Us 4.3 W, Dual-frequency coil in a cold state and 1.0 x Us
Power Consumption Sealing 60 Hz	4.3 W, Dual-frequency coil in a cold state and 1.0 x Us 5.3 W, Dual-frequency coil in a cold state and 1.0 x Us 19 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz 4.1 W, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz
Product Category	Contactors
Protection	Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated Breaking Capacity At 220 230 V	500 AMP
Rated Breaking Capacity At 220 230 V Uom	AMP
Rated Breaking Capacity At 380 400 V	500 AMP
Rated Breaking Capacity At 380 400 V Uom	AMP
Rated Breaking Capacity At 500 V	500 AMP
Rated Breaking Capacity At 500 V Uom	AMP
Rated Breaking Capacity At 660 690 V	320 AMP
Rated Breaking Capacity At 660 690 V Uom	AMP
Rated Control Supply Voltage Us At Ac 50 Hz Max	230 VLT
Rated Control Supply Voltage Us At Ac 50 Hz Max Uom	VLT
Rated Control Supply Voltage Us At Ac 50 Hz Min	230 VLT
Rated Control Supply Voltage Us At Ac 50 Hz Min Uom	VLT
Rated Control Supply Voltage Us At Ac 60 Hz Max	240 VLT
Rated Control Supply Voltage Us At Ac 60 Hz Max Uom	VLT
Rated Control Supply Voltage Us At Ac 60 Hz Min	240 VLT
Rated Control Supply Voltage Us At Ac 60 Hz Min Uom	VLT
Rated Control Supply Voltage Us At Dc Max	0 VLT
Rated Control Supply Voltage Us At Dc Max Uom	VLT
Rated Control Supply Voltage Us At Dc Min	0 VLT
Rated Control Supply Voltage Us At Dc Min Uom	VLT
Rated Impulse Withstand Voltage Uimp	8000 V AC
Rated Insulation Voltage Ui	690 VLT
Rated Insulation Voltage Ui Uom	VLT
Rated Making Capacity Up To 690 V Cos Phi To Iec En 60947	700 AMP
Rated Making Capacity Up To 690 V Cos Phi To Iec En 60947 Uom	AMP
Rated Operational Current For Specified Heat Dissipation In	50 AMP
Rated Operational Current For Specified Heat Dissipation In Uom	AMP
Rated Operational Current Ie At Ac 1 380 V 400 V 415 V	80 AMP
Rated Operational Current Ie At Ac 1 380 V 400 V 415 V Uom	AMP
Rated Operational Current Ie At Ac 3 220 V 230 V 240 V	50 AMP
Rated Operational Current Ie At Ac 3 220 V 230 V 240 V Uom	AMP
Rated Operational Current Ie At Ac 3 380 V 400 V 415 V	50 AMP
Rated Operational Current Ie At Ac 3 380 V 400 V 415 V Uom	AMP
Rated Operational Current Ie At Ac 3 440 V	50 AMP
Rated Operational Current Ie At Ac 3 440 V Uom	AMP
Rated Operational Current Ie At Ac 3 500 V	50 AMP
Rated Operational Current Ie At Ac 3 500 V Uom	AMP
Rated Operational Current Ie At Ac 3 660 V 690 V	32 AMP
Rated Operational Current Ie At Ac 3 660 V 690 V Uom	AMP
Rated Operational Current Ie At Ac 4 220 V 230 V 240 V	21 AMP
Rated Operational Current Ie At Ac 4 220 V 230 V 240 V Uom	AMP
Rated Operational Current Ie At Ac 4 400 V	21 AMP
Rated Operational Current Ie At Ac 4 400 V Uom	AMP
Rated Operational Current Ie At Ac 4 440 V	21 AMP
Rated Operational Current Ie At Ac 4 440 V Uom	AMP
Rated Operational Current Ie At Ac 4 500 V	21 AMP
Rated Operational Current Ie At Ac 4 500 V Uom	AMP
Rated Operational Current Ie At Ac 4 660 V 690 V	17 AMP
Rated Operational Current Ie At Ac 4 660 V 690 V Uom	AMP
Rated Operational Current Ie At Dc 1 110 V	50 AMP
Rated Operational Current Ie At Dc 1 110 V Uom	AMP
Rated Operational Current Ie At Dc 1 220 V	45 AMP
Rated Operational Current Ie At Dc 1 220 V Uom	AMP
Rated Operational Current Ie At Dc 1 60 V	60 AMP
Rated Operational Current Ie At Dc 1 60 V Uom	AMP
Rated Operational Power At Ac 3 240 V 50 Hz	17 KWT
Rated Operational Power At Ac 3 240 V 50 Hz Uom	KWT
Rated Operational Power At Ac 3 380 400 V 50 Hz	22 KWT
Rated Operational Power At Ac 3 380 400 V 50 Hz Uom	KWT
Rated Operational Power At Ac 3 415 V 50 Hz	30 KWT
Rated Operational Power At Ac 3 415 V 50 Hz Uom	KWT
Rated Operational Power At Ac 3 440 V 50 Hz	32 KWT
Rated Operational Power At Ac 3 440 V 50 Hz Uom	KWT
Rated Operational Power At Ac 3 500 V 50 Hz	36 KWT
Rated Operational Power At Ac 3 500 V 50 Hz Uom	KWT
Rated Operational Power At Ac 3 690 V 50 Hz	30 KWT
Rated Operational Power At Ac 3 690 V 50 Hz Uom	KWT
Rated Operational Power At Ac 4 220 230 V 50 Hz	6 KWT
Rated Operational Power At Ac 4 220 230 V 50 Hz Uom	KWT
Rated Operational Power At Ac 4 240 V 50 Hz	6.5 KWT
Rated Operational Power At Ac 4 240 V 50 Hz Uom	KWT
Rated Operational Power At Ac 4 380 400 V 50 Hz	10 KWT
Rated Operational Power At Ac 4 380 400 V 50 Hz Uom	KWT
Rated Operational Power At Ac 4 415 V 50 Hz	11 KWT
Rated Operational Power At Ac 4 415 V 50 Hz Uom	KWT
Rated Operational Power At Ac 4 440 V 50 Hz	12 KWT
Rated Operational Power At Ac 4 440 V 50 Hz Uom	KWT
Rated Operational Power At Ac 4 500 V 50 Hz	13 KWT
Rated Operational Power At Ac 4 500 V 50 Hz Uom	KWT
Rated Operational Power At Ac 4 660 690 V 50 Hz	14 KWT
Rated Operational Power At Ac 4 660 690 V 50 Hz Uom	KWT
Rated Operational Power Nema	29.8 KWT
Rated Operational Power Nema Uom	KWT
Rated Operational Voltage Ue At Ac Max	690 VLT
Rated Operational Voltage Ue At Ac Max Uom	VLT
Resistance Per Pole	1.9 mΩ1
Resistance Per Pole Uom	mΩ1
Safe Isolation	440 V AC, Between the contacts, According to EN 61140 440 V AC, Between coil and contacts, According to EN 61140
Screw Size	M6, Terminal screw, Main cables M3.5, Terminal screw, Control circuit cables
Screwdriver Size	0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver 2, Terminal screw, Pozidriv screwdriver
Shock Resistance	5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27 when tabletop-mounted, Half-sinusoidal shock 10 ms 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Short Circuit Current Rating Basic Rating	250 A, max. Fuse, SCCR (UL/CSA) 250 A, max. CB, SCCR (UL/CSA) 10 kA, SCCR (UL/CSA)
Short Circuit Current Rating High Fault At 480 V	250/150 A, Class J, max. Fuse, SCCR (UL/CSA) 30/100 kA, Fuse, SCCR (UL/CSA) 65 kA, CB, SCCR (UL/CSA) 100 A, max. CB, SCCR (UL/CSA)
Short Circuit Current Rating High Fault At 600 V	30/100 kA, Fuse, SCCR (UL/CSA) 30 kA, CB, SCCR (UL/CSA) 250/150 A, Class J, max. Fuse, SCCR (UL/CSA) 250 A, max. CB, SCCR (UL/CSA)
Short Circuit Protection Rating Type 1 Coordination At 400 V	160 A gG/gL
Short Circuit Protection Rating Type 1 Coordination At 690 V	80 A gG/gL
Short Circuit Protection Rating Type 2 Coordination At 400 V	80 A gG/gL
Short Circuit Protection Rating Type 2 Coordination At 690 V	63 A gG/gL
Special Purpose Rating Of Ballast Electrical Discharge Lamps	79 A (480V 60Hz 3phase, 277V 60Hz 1phase) 79 A (600V 60Hz 3phase, 347V 60Hz 1phase)
Special Purpose Rating Of Elevator Control	32.2 A, 200 V 60 Hz 3-ph, (UL/CSA) 42 A, 240 V 60 Hz 3-ph, (UL/CSA) 30 HP, 480 V 60 Hz 3-ph, (UL/CSA) 40 A, 480 V 60 Hz 3-ph, (UL/CSA) 41 A, 600 V 60 Hz 3-ph, (UL/CSA) 10 HP, 200 V 60 Hz 3-ph, (UL/CSA) 40 HP, 600 V 60 Hz 3-ph, (UL/CSA) 15 HP, 240 V 60 Hz 3-ph, (UL/CSA)
Special Purpose Rating Of Resistance Air Heating	79 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA) 79 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA)
Special Purpose Rating Of Tungsten Incandescent Lamps	74 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA) 74 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA)
Static Heat Dissipation Non Current Dependent Pvs	4.1 WTT
Static Heat Dissipation Non Current Dependent Pvs Uom	WTT
Suitable For	Also motors with efficiency class IE3
Switching Capacity Auxiliary Contacts General Use	15 A, 600 V AC, (UL/CSA) 1 A, 250 V DC, (UL/CSA)
Switching Capacity Auxiliary Contacts Pilot Duty	A600, AC operated (UL/CSA) P300, DC operated (UL/CSA)
Switching Capacity Main Contacts General Use	80 A, Maximum motor rating (UL/CSA)
Switching Time Ac Operated Make Contacts Closing Delay Max	18 C26
Switching Time Ac Operated Make Contacts Closing Delay Max Uom	C26
Switching Time Ac Operated Make Contacts Closing Delay Min	12 C26
Switching Time Ac Operated Make Contacts Closing Delay Min Uom	C26
Switching Time Ac Operated Make Contacts Opening Delay Max	13 C26
Switching Time Ac Operated Make Contacts Opening Delay Max Uom	C26
Switching Time Ac Operated Make Contacts Opening Delay Min	8 C26
Switching Time Ac Operated Make Contacts Opening Delay Min Uom	C26
Terminal Capacity Copper Band	2 x (6 x 9 x 0.8) mm (Number of segments x width x thickness), Main cables
Terminal Capacity Flexible With Ferrule	1 x (0.75 - 2.5) mm², Control circuit cables 2 x (0.75 - 25) mm², Main cables 2 x (0.75 - 2.5) mm², Control circuit cables 1 x (0.75 - 35) mm², Main cables
Terminal Capacity Solid	1 x (0.75 - 16) mm², Main cables 2 x (0.75 - 16) mm², Main cables 1 x (0.75 - 2.5) mm², Control circuit cables 2 x (0.75 - 2.5) mm², Control circuit cables
Terminal Capacity Solid Stranded Awg	Single 14 - 1, double 14 - 2, Main cables 18 - 14, Control circuit cables
Terminal Capacity Stranded	1 x (16 - 50) mm², Main cables 2 x (16 - 35) mm², Main cables
Terminals	Screw terminals
Tightening Torque	3.3 Nm, Screw terminals, Main cables 1.2 Nm, Screw terminals, Control circuit cables
Type	Full voltage non-reversing contactor
Utilization Category	AC-1: Non-inductive or slightly inductive loads, resistance furnaces AC-4: Normal AC induction motors: starting, plugging, reversing, inching AC-3: Normal AC induction motors: starting, switch off during running
Voltage Rating	400 V
Voltage Rating Uom	CEL
Voltage Type	AC
