Eaton 051806

Name: Eaton 051806
Brand: Eaton
SKU: CS5483089
Price: 52.07 USD
Availability: OutOfStock

SKU: CS5483089MPN: 051806Alternate Part #: MSAA051806UPC/EAN: 4015080518068

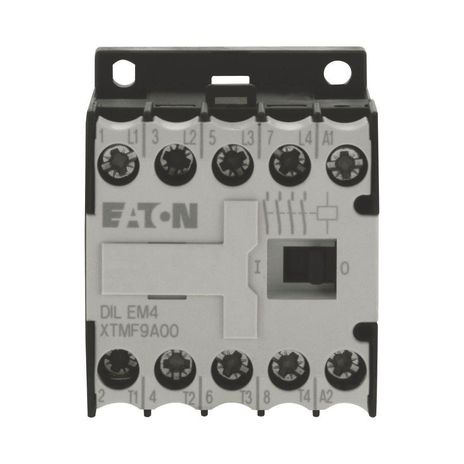

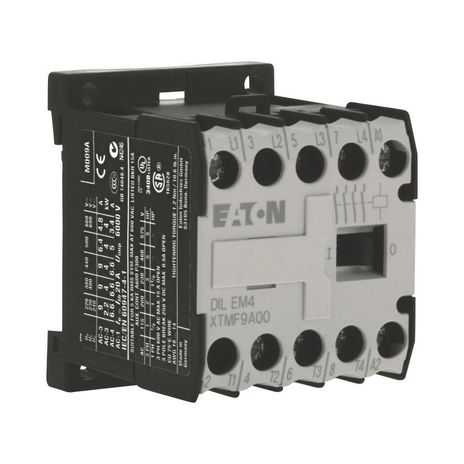

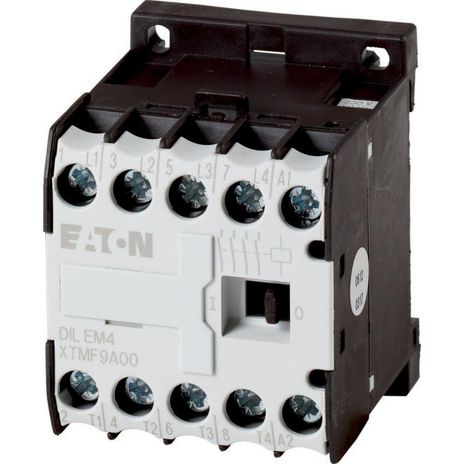

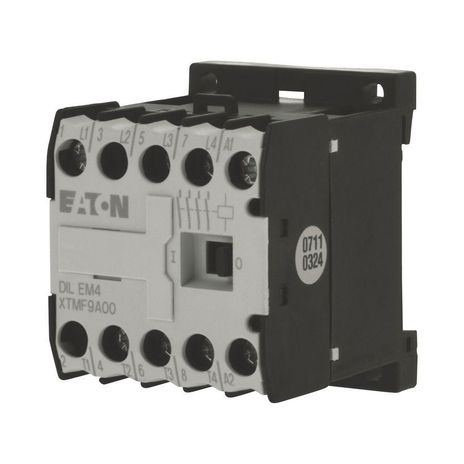

Eaton Moeller® series DILEM Mini contactor

Product Details

Eaton Moeller® series DILEM Contactor, 400 V 50 Hz, 440 V 60 Hz, 4 pole, 380 V 400 V, 4 kW, Screw terminals, AC operation

Attributes

10 10 Temperature Rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10 11 Short Circuit Rating	Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10 12 Electromagnetic Compatibility	Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10 13 Mechanical Function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10 2 2 Corrosion Resistance	Meets the product standard’s requirements.
10 2 3 1 Verification Of Thermal Stability Of Enclosures	Meets the product standard’s requirements.
10 2 3 2 Verification Of Resistance Of Insulating Materials To Normal Heat	Meets the product standard’s requirements.
10 2 3 3 Resist Of Insul Mat To Abnormal Heat Fire By Internal Elect Effects	Meets the product standard’s requirements.
10 2 4 Resistance To Ultra Violet Uv Radiation	Meets the product standard’s requirements.
10 2 5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
10 2 6 Mechanical Impact	Does not apply, since the entire switchgear needs to be evaluated.
10 2 7 Inscriptions	Meets the product standard’s requirements.
10 3 Degree Of Protection Of Assemblies	Does not apply, since the entire switchgear needs to be evaluated.
10 4 Clearances And Creepage Distances	Meets the product standard’s requirements.
10 5 Protection Against Electric Shock	Does not apply, since the entire switchgear needs to be evaluated.
10 6 Incorporation Of Switching Devices And Components	Does not apply, since the entire switchgear needs to be evaluated.
10 7 Internal Electrical Circuits And Connections	Is the panel builder’s responsibility.
10 8 Connections For External Conductors	Is the panel builder’s responsibility.
10 9 2 Power Frequency Electric Strength	Is the panel builder’s responsibility.
10 9 3 Impulse Withstand Voltage	Is the panel builder’s responsibility.
10 9 4 Testing Of Enclosures Made Of Insulating Material	Is the panel builder’s responsibility.
Actuating Voltage	400 V 50 Hz, 440 V 60 Hz
Altitude	Max. 2000 m
Ambient Operating Temperature Enclosed Max	40 CEL
Ambient Operating Temperature Enclosed Max Uom	CEL
Ambient Operating Temperature Enclosed Min	25 CEL
Ambient Operating Temperature Enclosed Min Uom	CEL
Ambient Operating Temperature Max	50 CEL
Ambient Operating Temperature Max Uom	CEL
Ambient Operating Temperature Min	-25 CEL
Ambient Operating Temperature Min Uom	CEL
Ambient Storage Temperature Max	80 CEL
Ambient Storage Temperature Max Uom	CEL
Ambient Storage Temperature Min	40 CEL
Ambient Storage Temperature Min Uom	CEL
Amperage Rating	15A
Application	Mini Contactors for Motors and Resistive Loads
Arcing Time	12 ms at 690 V AC
Assigned Motor Power At 115 120 V 60 Hz 1 Phase	0.5 A25
Assigned Motor Power At 115 120 V 60 Hz 1 Phase Uom	A25
Assigned Motor Power At 200 208 V 60 Hz 3 Phase	2 A25
Assigned Motor Power At 200 208 V 60 Hz 3 Phase Uom	A25
Assigned Motor Power At 230 240 V 60 Hz 1 Phase	1.5 A25
Assigned Motor Power At 230 240 V 60 Hz 1 Phase Uom	A25
Assigned Motor Power At 230 240 V 60 Hz 3 Phase	3 A25
Assigned Motor Power At 230 240 V 60 Hz 3 Phase Uom	A25
Assigned Motor Power At 460 480 V 60 Hz 3 Phase	5 A25
Assigned Motor Power At 460 480 V 60 Hz 3 Phase Uom	A25
Assigned Motor Power At 575 600 V 60 Hz 3 Phase	5 A25
Assigned Motor Power At 575 600 V 60 Hz 3 Phase Uom	A25
Changeover Time	16 - 21 ms
Climatic Proofing	Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30
Coil Voltage	400-440 Vac, 50/60 Hz
Connection	Screw terminals
Continuous Ampere Rating	9 A
Control Circuit Reliability	< 2 λ, < 1 failure at 100,000,000 Operations (at Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)
Conventional Thermal Current Ith 1 Pole Enclosed	50 AMP
Conventional Thermal Current Ith 1 Pole Enclosed Uom	AMP
Conventional Thermal Current Ith 3 Pole Enclosed	16 AMP
Conventional Thermal Current Ith 3 Pole Enclosed Uom	AMP
Conventional Thermal Current Ith At 40 C 3 Pole Open	22 AMP
Conventional Thermal Current Ith At 40 C 3 Pole Open Uom	AMP
Conventional Thermal Current Ith At 50 C 3 Pole Open	20 AMP
Conventional Thermal Current Ith At 50 C 3 Pole Open Uom	AMP
Conventional Thermal Current Ith At 55 C 3 Pole Open	19 AMP
Conventional Thermal Current Ith At 55 C 3 Pole Open Uom	AMP
Conventional Thermal Current Ith Of Auxiliary Contacts 1 Pole Open	10 AMP
Conventional Thermal Current Ith Of Auxiliary Contacts 1 Pole Open Uom	AMP
Conventional Thermal Current Ith Of Main Contacts 1 Pole Open	60 AMP
Conventional Thermal Current Ith Of Main Contacts 1 Pole Open Uom	AMP
Degree Of Protection	IP20
Duty Factor	100 %
Electrical Connection Type Of Main Circuit	Screw connection
Equipment Heat Dissipation Current Dependent Pvid	9.56 WTT
Equipment Heat Dissipation Current Dependent Pvid Uom	WTT
Features	Positive operating contacts to EN 60947-5-1 appendix L, including auxiliary contact module
Frequency Rating	50-60 Hz
Heat Dissipation Capacity Pdiss	0 WTT
Heat Dissipation Capacity Pdiss Uom	WTT
Heat Dissipation Per Pole Current Dependent Pvid	2.39 WTT
Heat Dissipation Per Pole Current Dependent Pvid Uom	WTT
Hp Rating Max	0.5, 1.5/ 2, 3, 5, 5 hp (⅓PH @120,240/208,240,480,600 V)
Lifespan Mechanical	20,000,000 Operations 150,000 Operations (at 240 V, DC, L/R = 50 ms: 2 contacts in series 0.5 A) 7,000,000 Operations (Coil 50/60 Hz) 200,000 Operations (at 240 V, AC-15)
Mounting Position	As required (except vertical with terminals A1/A2 at the bottom)
Number Of Auxiliary Contacts Normally Closed Contacts	0.0000
Number Of Auxiliary Contacts Normally Open Contacts	0.0000
Number Of Contacts Normally Closed As Main Contact	0.0000
Number Of Main Contacts Normally Open Contact	4.0000
Number Of Poles	Four-pole
Operating Frequency	9000 mechanical Operations/h
Operating Voltage At Ac 50 Hz Max	690 VLT
Operating Voltage At Ac 50 Hz Max Uom	VLT
Operating Voltage At Ac 50 Hz Min	24 VLT
Operating Voltage At Ac 50 Hz Min Uom	VLT
Operating Voltage At Ac 60 Hz Max	690 VLT
Operating Voltage At Ac 60 Hz Max Uom	VLT
Operating Voltage At Ac 60 Hz Min	24 VLT
Operating Voltage At Ac 60 Hz Min Uom	VLT
Operation	Reversing
Overvoltage Category	III
Pick Up Voltage	0.8 - 1.1 V AC x Uc (voltage tolerance - single-voltage coil 50 Hz and dual-voltage coil 50 Hz, 60 Hz) 1.1 V AC x Uc (voltage tolerance - dual frequency coil 50/60 Hz)
Pollution Degree	3.0000
Power Consumption Pick Up 50 Hz	22 W, AC, Single-frequency coil 50 Hz and Dual-frequency coil 50/60 Hz 25 VA, AC, Single-frequency coil 50 Hz and Dual-frequency coil 50/60 Hz
Power Consumption Pick Up 60 Hz	25 VA, AC, Single-frequency coil 50 Hz and Dual-frequency coil 50/60 Hz 22 W, AC, Single-frequency coil 50 Hz and Dual-frequency coil 50/60 Hz
Power Consumption Sealing 50 Hz	1.8 W, AC, Single-frequency coil 50 Hz and Dual-frequency coil 50/60 Hz 4.6 VA, AC, Single-frequency coil 50 Hz and Dual-frequency coil 50/60 Hz
Power Consumption Sealing 60 Hz	1.8 W, AC, Single-frequency coil 50 Hz and Dual-frequency coil 50/60 Hz
Product Category	Contactors
Protection	Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated Breaking Capacity At 220 230 V	90 AMP
Rated Breaking Capacity At 220 230 V Uom	AMP
Rated Breaking Capacity At 380 400 V	90 AMP
Rated Breaking Capacity At 380 400 V Uom	AMP
Rated Breaking Capacity At 500 V	64 AMP
Rated Breaking Capacity At 500 V Uom	AMP
Rated Breaking Capacity At 660 690 V	42 AMP
Rated Breaking Capacity At 660 690 V Uom	AMP
Rated Control Supply Voltage Us At Ac 50 Hz Max	400 VLT
Rated Control Supply Voltage Us At Ac 50 Hz Max Uom	VLT
Rated Control Supply Voltage Us At Ac 50 Hz Min	400 VLT
Rated Control Supply Voltage Us At Ac 50 Hz Min Uom	VLT
Rated Control Supply Voltage Us At Ac 60 Hz Max	440 VLT
Rated Control Supply Voltage Us At Ac 60 Hz Max Uom	VLT
Rated Control Supply Voltage Us At Ac 60 Hz Min	440 VLT
Rated Control Supply Voltage Us At Ac 60 Hz Min Uom	VLT
Rated Control Supply Voltage Us At Dc Max	0 VLT
Rated Control Supply Voltage Us At Dc Max Uom	VLT
Rated Control Supply Voltage Us At Dc Min	0 VLT
Rated Control Supply Voltage Us At Dc Min Uom	VLT
Rated Impulse Withstand Voltage Uimp	6000 V AC
Rated Insulation Voltage Ui	690 VLT
Rated Insulation Voltage Ui Uom	VLT
Rated Making Capacity Up To 440 V Cos Phi To Iec En 60947	110 AMP
Rated Making Capacity Up To 440 V Cos Phi To Iec En 60947 Uom	AMP
Rated Operational Current For Specified Heat Dissipation In	22 AMP
Rated Operational Current For Specified Heat Dissipation In Uom	AMP
Rated Operational Current Ie	1.5 A at 100 V, DC L/R ≤ 15 ms (with 3 contacts in series) 2.5 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series) 2.5 A at 60 V, DC L/R ≤ 15 ms (with 2 contacts in series) 0.5 A at 220 V, DC L/R ≤ 15 ms (with 3 contacts in series)
Rated Operational Current Ie At Ac 15 220 V 230 V 240 V	6 AMP
Rated Operational Current Ie At Ac 15 220 V 230 V 240 V Uom	AMP
Rated Operational Current Ie At Ac 15 380 V 400 V 415 V	3 AMP
Rated Operational Current Ie At Ac 15 380 V 400 V 415 V Uom	AMP
Rated Operational Current Ie At Ac 15 500 V	1.5 AMP
Rated Operational Current Ie At Ac 15 500 V Uom	AMP
Rated Operational Current Ie At Ac 1 380 V 400 V 415 V	22 AMP
Rated Operational Current Ie At Ac 1 380 V 400 V 415 V Uom	AMP
Rated Operational Current Ie At Ac 3 220 V 230 V 240 V	9 AMP
Rated Operational Current Ie At Ac 3 220 V 230 V 240 V Uom	AMP
Rated Operational Current Ie At Ac 3 380 V 400 V 415 V	9 AMP
Rated Operational Current Ie At Ac 3 380 V 400 V 415 V Uom	AMP
Rated Operational Current Ie At Ac 3 440 V	9 AMP
Rated Operational Current Ie At Ac 3 440 V Uom	AMP
Rated Operational Current Ie At Ac 3 500 V	6.4 AMP
Rated Operational Current Ie At Ac 3 500 V Uom	AMP
Rated Operational Current Ie At Ac 3 660 V 690 V	4.8 AMP
Rated Operational Current Ie At Ac 3 660 V 690 V Uom	AMP
Rated Operational Current Ie At Ac 4 220 V 230 V 240 V	6.6 AMP
Rated Operational Current Ie At Ac 4 220 V 230 V 240 V Uom	AMP
Rated Operational Current Ie At Ac 4 400 V	6.6 AMP
Rated Operational Current Ie At Ac 4 400 V Uom	AMP
Rated Operational Current Ie At Ac 4 440 V	6.6 AMP
Rated Operational Current Ie At Ac 4 440 V Uom	AMP
Rated Operational Current Ie At Ac 4 500 V	5 AMP
Rated Operational Current Ie At Ac 4 500 V Uom	AMP
Rated Operational Current Ie At Ac 4 660 V 690 V	3.4 AMP
Rated Operational Current Ie At Ac 4 660 V 690 V Uom	AMP
Rated Operational Current Ie At Dc 1 110 V	20 AMP
Rated Operational Current Ie At Dc 1 110 V Uom	AMP
Rated Operational Current Ie At Dc 1 12 V	20 AMP
Rated Operational Current Ie At Dc 1 12 V Uom	AMP
Rated Operational Current Ie At Dc 1 220 V	20 AMP
Rated Operational Current Ie At Dc 1 220 V Uom	AMP
Rated Operational Current Ie At Dc 1 24 V	20 AMP
Rated Operational Current Ie At Dc 1 24 V Uom	AMP
Rated Operational Current Ie At Dc 1 60 V	20 AMP
Rated Operational Current Ie At Dc 1 60 V Uom	AMP
Rated Operational Power At Ac 3 240 V 50 Hz	2.5 KWT
Rated Operational Power At Ac 3 240 V 50 Hz Uom	KWT
Rated Operational Power At Ac 3 380 400 V 50 Hz	4 KWT
Rated Operational Power At Ac 3 380 400 V 50 Hz Uom	KWT
Rated Operational Power At Ac 3 415 V 50 Hz	4.3 KWT
Rated Operational Power At Ac 3 415 V 50 Hz Uom	KWT
Rated Operational Power At Ac 3 440 V 50 Hz	4.6 KWT
Rated Operational Power At Ac 3 440 V 50 Hz Uom	KWT
Rated Operational Power At Ac 3 500 V 50 Hz	4 KWT
Rated Operational Power At Ac 3 500 V 50 Hz Uom	KWT
Rated Operational Power At Ac 3 690 V 50 Hz	4 KWT
Rated Operational Power At Ac 3 690 V 50 Hz Uom	KWT
Rated Operational Power At Ac 4 220 230 V 50 Hz	1.5 KWT
Rated Operational Power At Ac 4 220 230 V 50 Hz Uom	KWT
Rated Operational Power At Ac 4 240 V 50 Hz	1.8 KWT
Rated Operational Power At Ac 4 240 V 50 Hz Uom	KWT
Rated Operational Power At Ac 4 380 400 V 50 Hz	3 KWT
Rated Operational Power At Ac 4 380 400 V 50 Hz Uom	KWT
Rated Operational Power At Ac 4 415 V 50 Hz	3.1 KWT
Rated Operational Power At Ac 4 415 V 50 Hz Uom	KWT
Rated Operational Power At Ac 4 440 V 50 Hz	3.3 KWT
Rated Operational Power At Ac 4 440 V 50 Hz Uom	KWT
Rated Operational Power At Ac 4 500 V 50 Hz	3 KWT
Rated Operational Power At Ac 4 500 V 50 Hz Uom	KWT
Rated Operational Power At Ac 4 660 690 V 50 Hz	3 KWT
Rated Operational Power At Ac 4 660 690 V 50 Hz Uom	KWT
Rated Operational Power Nema	3.7 KWT
Rated Operational Power Nema Uom	KWT
Rated Operational Voltage Ue At Ac Max	690 VLT
Rated Operational Voltage Ue At Ac Max Uom	VLT
Resistance Per Pole	9.18 mΩ1
Resistance Per Pole Uom	mΩ1
Safe Isolation	300 V AC, Between coil and contacts, According to EN 61140 300 V AC, Between coil and auxiliary contacts, According to EN 61140 300 V AC, Between auxiliary contacts, According to EN 61140 300 V AC, Between the contacts, According to EN 61140
Screw Size	M3.5, Terminal screw
Screwdriver Size	0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver 2, Terminal screw, Pozidriv screwdriver
Shock Resistance	20 g, N/O auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 10 g, N/O main contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 10 g, N/O main contact, Basic unit without auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 20 g, N/C auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Short Circuit Current Rating Basic Rating	5 kA, SCCR (UL/CSA) 45 A, max. Fuse, SCCR (UL/CSA)
Short Circuit Protection	10 A fast, Max. Fuse 500V, Auxiliary contacts, Short-circuit rating without welding 6 A gG/gL, Max. Fuse 500V, Auxiliary contacts, Short-circuit rating without welding PKZM0-4, Maximum overcurrent protective device, Short-circuit protection only, Auxiliary contacts, Short-circuit rating without welding
Short Circuit Protection Rating Type 1 Coordination At 500 V	20 A gG/gL
Short Circuit Protection Rating Type 2 Coordination At 500 V	10 A gG/gL
Static Heat Dissipation Non Current Dependent Pvs	1.8 WTT
Static Heat Dissipation Non Current Dependent Pvs Uom	WTT
Switching Capacity Main Contacts General Use	15 A, Maximum motor rating (UL/CSA)
Switching Time Ac Operated Make Contacts Closing Delay Max	21 C26
Switching Time Ac Operated Make Contacts Closing Delay Max Uom	C26
Switching Time Ac Operated Make Contacts Closing Delay Min	14 C26
Switching Time Ac Operated Make Contacts Closing Delay Min Uom	C26
Switching Time Ac Operated Make Contacts Opening Delay Max	18 C26
Switching Time Ac Operated Make Contacts Opening Delay Max Uom	C26
Switching Time Ac Operated Make Contacts Opening Delay Min	8 C26
Switching Time Ac Operated Make Contacts Opening Delay Min Uom	C26
Switching Time Ac Operated N O With Auxiliary Contact Module Closing Delay	45 C26
Switching Time Ac Operated N O With Auxiliary Contact Module Closing Delay Uom	C26
Terminal Capacity Flexible With Ferrule	1 x (0.75 - 1.5) mm² 2 x (0.75 - 1.5) mm²
Terminal Capacity Solid	2 x (0.75 - 2.5) mm² 1 x (0.75 - 2.5) mm²
Terminal Capacity Solid Stranded Awg	18 - 14
Tightening Torque	1.2 Nm, Screw terminals
Type	Full voltage non-reversing miniature contactor
Utilization Category	AC-4: Normal AC induction motors: starting, plugging, reversing, inching AC-1: Non-inductive or slightly inductive loads, resistance furnaces AC-3: Normal AC induction motors: starting, switch off during running
Voltage Type	AC
