Eaton 207426
SKU: CS5020483MPN: 207426UPC/EAN: 04015082074265

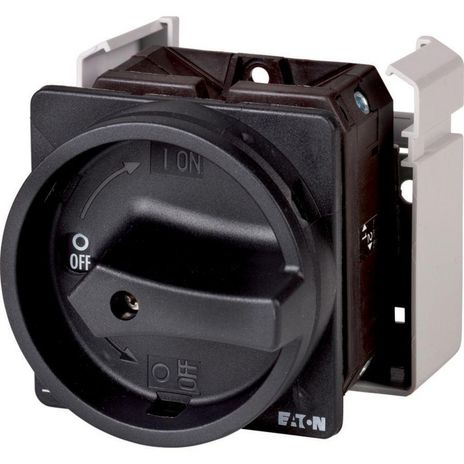

Eaton Moeller® series T5B Main switch
Contact us for pricing and availability
Product Details
Eaton Moeller® series T5B Main switch, T5B, 63 A, flush mounting, 4 contact unit(s), 6 pole, 1 N/O, 1 N/C, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position
Attributes
| 10 10 Temperature Rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10 11 Short Circuit Rating | Is the panel builder’s responsibility. The specifications for the switchgear must be observed. |
| 10 12 Electromagnetic Compatibility | Is the panel builder’s responsibility. The specifications for the switchgear must be observed. |
| 10 13 Mechanical Function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10 2 2 Corrosion Resistance | Meets the product standard’s requirements. |
| 10 2 3 1 Verification Of Thermal Stability Of Enclosures | Meets the product standard’s requirements. |
| 10 2 3 2 Verification Of Resistance Of Insulating Materials To Normal Heat | Meets the product standard’s requirements. |
| 10 2 3 3 Resist Of Insul Mat To Abnormal Heat Fire By Internal Elect Effects | Meets the product standard’s requirements. |
| 10 2 4 Resistance To Ultra Violet Uv Radiation | UV resistance only in connection with protective shield. |
| 10 2 5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10 2 6 Mechanical Impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10 2 7 Inscriptions | Meets the product standard’s requirements. |
| 10 3 Degree Of Protection Of Assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10 4 Clearances And Creepage Distances | Meets the product standard’s requirements. |
| 10 5 Protection Against Electric Shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10 6 Incorporation Of Switching Devices And Components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10 7 Internal Electrical Circuits And Connections | Is the panel builder’s responsibility. |
| 10 8 Connections For External Conductors | Is the panel builder’s responsibility. |
| 10 9 2 Power Frequency Electric Strength | Is the panel builder’s responsibility. |
| 10 9 3 Impulse Withstand Voltage | Is the panel builder’s responsibility. |
| 10 9 4 Testing Of Enclosures Made Of Insulating Material | Is the panel builder’s responsibility. |
| Actuator Color | Black |
| Actuator Type | Door coupling rotary drive |
| Ambient Operating Temperature Enclosed Max | 40 CEL |
| Ambient Operating Temperature Enclosed Max Uom | CEL |
| Ambient Operating Temperature Enclosed Min | -25 CEL |
| Ambient Operating Temperature Enclosed Min Uom | CEL |
| Ambient Operating Temperature Max | 50 CEL |
| Ambient Operating Temperature Max Uom | CEL |
| Ambient Operating Temperature Min | -25 CEL |
| Ambient Operating Temperature Min Uom | CEL |
| Assigned Motor Power At 115 120 V 60 Hz 1 Phase | 3 A25 |
| Assigned Motor Power At 115 120 V 60 Hz 1 Phase Uom | A25 |
| Assigned Motor Power At 200 208 V 60 Hz 1 Phase | 7.5 A25 |
| Assigned Motor Power At 200 208 V 60 Hz 1 Phase Uom | A25 |
| Assigned Motor Power At 200 208 V 60 Hz 3 Phase | 15 A25 |
| Assigned Motor Power At 200 208 V 60 Hz 3 Phase Uom | A25 |
| Assigned Motor Power At 230 240 V 60 Hz 1 Phase | 10 A25 |
| Assigned Motor Power At 230 240 V 60 Hz 1 Phase Uom | A25 |
| Assigned Motor Power At 230 240 V 60 Hz 3 Phase | 15 A25 |
| Assigned Motor Power At 230 240 V 60 Hz 3 Phase Uom | A25 |
| Assigned Motor Power At 460 480 V 60 Hz 3 Phase | 40 A25 |
| Assigned Motor Power At 460 480 V 60 Hz 3 Phase Uom | A25 |
| Assigned Motor Power At 575 600 V 60 Hz 3 Phase | 40 A25 |
| Assigned Motor Power At 575 600 V 60 Hz 3 Phase Uom | A25 |
| Climatic Proofing | Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78 |
| Control Circuit Reliability | 1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA) |
| Degree Of Protection | NEMA 12 |
| Degree Of Protection Front Side | IP65 |
| Design | 15682 |
| Device Construction | Built-in device fixed built-in technique |
| Electrical Connection Type Of Main Circuit | Screw connection |
| Equipment Heat Dissipation Current Dependent Pvid | 4.5 WTT |
| Equipment Heat Dissipation Current Dependent Pvid Uom | WTT |
| Features | Version as main switch Version as maintenance-/service switch |
| Fitted With | Black rotary handle and locking ring |
| Functions | Interlockable STOP function |
| Heat Dissipation Capacity Pdiss | 0 WTT |
| Heat Dissipation Capacity Pdiss Uom | WTT |
| Heat Dissipation Per Pole Current Dependent Pvid | 4.5 WTT |
| Heat Dissipation Per Pole Current Dependent Pvid Uom | WTT |
| Lifespan Mechanical | 500,000 Operations |
| Load Rating | 1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor) 2 x Iₑ (with intermittent operation class 12, 25 % duty factor) 1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor) |
| Locking Facility | Lockable in the 0 (Off) position |
| Mounting Method | Flush mounting |
| Mounting Position | As required |
| Number Of Auxiliary Contacts Change Over Contacts | 0.0000 |
| Number Of Auxiliary Contacts Normally Closed Contacts | 1.0000 |
| Number Of Auxiliary Contacts Normally Open Contacts | 1.0000 |
| Number Of Contact Units | 4.0000 |
| Number Of Contacts In Series At Dc 23A 120 V | 3.0000 |
| Number Of Contacts In Series At Dc 23A 240 V | 6.0000 |
| Number Of Contacts In Series At Dc 23A 24 V | 1.0000 |
| Number Of Contacts In Series At Dc 23A 48 V | 2.0000 |
| Number Of Contacts In Series At Dc 23A 60 V | 3.0000 |
| Number Of Poles | 6 |
| Number Of Switches | 1.0000 |
| Operating Frequency | 1200 Operations/h |
| Overvoltage Category | III |
| Pollution Degree | 3.0000 |
| Product Category | Main switch |
| Rated Breaking Capacity At 220 230 V Cos Phi To Iec 60947 3 | 520 AMP |
| Rated Breaking Capacity At 220 230 V Cos Phi To Iec 60947 3 Uom | AMP |
| Rated Breaking Capacity At 400 415 V Cos Phi To Iec 60947 3 | 600 AMP |
| Rated Breaking Capacity At 400 415 V Cos Phi To Iec 60947 3 Uom | AMP |
| Rated Breaking Capacity At 500 V Cos Phi To Iec 60947 3 | 480 AMP |
| Rated Breaking Capacity At 500 V Cos Phi To Iec 60947 3 Uom | AMP |
| Rated Breaking Capacity At 660 690 V Cos Phi To Iec 60947 3 | 340 AMP |
| Rated Breaking Capacity At 660 690 V Cos Phi To Iec 60947 3 Uom | AMP |
| Rated Conditional Short Circuit Current Iq | 2 kA |
| Rated Impulse Withstand Voltage Uimp | 6000 V AC |
| Rated Making Capacity Up To 690 V Cos Phi To Iec En 60947 3 | 800 AMP |
| Rated Making Capacity Up To 690 V Cos Phi To Iec En 60947 3 Uom | AMP |
| Rated Operating Voltage Ue Max | 690 VLT |
| Rated Operating Voltage Ue Max Uom | VLT |
| Rated Operating Voltage Ue Min | 690 VLT |
| Rated Operating Voltage Ue Min Uom | VLT |
| Rated Operational Current For Specified Heat Dissipation In | 63 AMP |
| Rated Operational Current For Specified Heat Dissipation In Uom | AMP |
| Rated Operational Current Ie At Ac 21 440 V | 63 AMP |
| Rated Operational Current Ie At Ac 21 440 V Uom | AMP |
| Rated Operational Current Ie At Ac 23A 230 V | 63 AMP |
| Rated Operational Current Ie At Ac 23A 230 V Uom | AMP |
| Rated Operational Current Ie At Ac 23A 400 V 415 V | 63 AMP |
| Rated Operational Current Ie At Ac 23A 400 V 415 V Uom | AMP |
| Rated Operational Current Ie At Ac 23A 500 V | 33 AMP |
| Rated Operational Current Ie At Ac 23A 500 V Uom | AMP |
| Rated Operational Current Ie At Ac 23A 690 V | 23.8 AMP |
| Rated Operational Current Ie At Ac 23A 690 V Uom | AMP |
| Rated Operational Current Ie At Ac 3 220 V 230 V 240 V | 51 AMP |
| Rated Operational Current Ie At Ac 3 220 V 230 V 240 V Uom | AMP |
| Rated Operational Current Ie At Ac 3 380 V 400 V 415 V | 41 AMP |
| Rated Operational Current Ie At Ac 3 380 V 400 V 415 V Uom | AMP |
| Rated Operational Current Ie At Ac 3 500 V | 33 AMP |
| Rated Operational Current Ie At Ac 3 500 V Uom | AMP |
| Rated Operational Current Ie At Ac 3 660 V 690 V | 17 AMP |
| Rated Operational Current Ie At Ac 3 660 V 690 V Uom | AMP |
| Rated Operational Current Ie At Dc 13 Control Switches L R 50 Ms | 25 AMP |
| Rated Operational Current Ie At Dc 13 Control Switches L R 50 Ms Uom | AMP |
| Rated Operational Current Ie At Dc 1 Load Break Switches L R 1 Ms | 63 AMP |
| Rated Operational Current Ie At Dc 1 Load Break Switches L R 1 Ms Uom | AMP |
| Rated Operational Current Ie At Dc 23A 120 V | 25 AMP |
| Rated Operational Current Ie At Dc 23A 120 V Uom | AMP |
| Rated Operational Current Ie At Dc 23A 240 V | 20 AMP |
| Rated Operational Current Ie At Dc 23A 240 V Uom | AMP |
| Rated Operational Current Ie At Dc 23A 24 V | 50 AMP |
| Rated Operational Current Ie At Dc 23A 24 V Uom | AMP |
| Rated Operational Current Ie At Dc 23A 48 V | 50 AMP |
| Rated Operational Current Ie At Dc 23A 48 V Uom | AMP |
| Rated Operational Current Ie At Dc 23A 60 V | 50 AMP |
| Rated Operational Current Ie At Dc 23A 60 V Uom | AMP |
| Rated Operational Current Ie Star Delta At Ac 3 220 230 V | 63 AMP |
| Rated Operational Current Ie Star Delta At Ac 3 220 230 V Uom | AMP |
| Rated Operational Current Ie Star Delta At Ac 3 380 400 V | 63 AMP |
| Rated Operational Current Ie Star Delta At Ac 3 380 400 V Uom | AMP |
| Rated Operational Current Ie Star Delta At Ac 3 500 V | 57.2 AMP |
| Rated Operational Current Ie Star Delta At Ac 3 500 V Uom | AMP |
| Rated Operational Current Ie Star Delta At Ac 3 690 V | 29.4 AMP |
| Rated Operational Current Ie Star Delta At Ac 3 690 V Uom | AMP |
| Rated Operational Power At Ac 23A 220 230 V 50 Hz | 18.5 KWT |
| Rated Operational Power At Ac 23A 220 230 V 50 Hz Uom | KWT |
| Rated Operational Power At Ac 23A 400 V 50 Hz | 30 KWT |
| Rated Operational Power At Ac 23A 400 V 50 Hz Uom | KWT |
| Rated Operational Power At Ac 23A 500 V 50 Hz | 22 KWT |
| Rated Operational Power At Ac 23A 500 V 50 Hz Uom | KWT |
| Rated Operational Power At Ac 23A 690 V 50 Hz | 22 KWT |
| Rated Operational Power At Ac 23A 690 V 50 Hz Uom | KWT |
| Rated Operational Power At Ac 3 380 400 V 50 Hz | 22 KWT |
| Rated Operational Power At Ac 3 380 400 V 50 Hz Uom | KWT |
| Rated Operational Power At Ac 3 415 V 50 Hz | 22 KWT |
| Rated Operational Power At Ac 3 415 V 50 Hz Uom | KWT |
| Rated Operational Power At Ac 3 500 V 50 Hz | 22 KWT |
| Rated Operational Power At Ac 3 500 V 50 Hz Uom | KWT |
| Rated Operational Power At Ac 3 690 V 50 Hz | 15 KWT |
| Rated Operational Power At Ac 3 690 V 50 Hz Uom | KWT |
| Rated Operational Power Star Delta At 220 230 V 50 Hz | 18.5 KWT |
| Rated Operational Power Star Delta At 220 230 V 50 Hz Uom | KWT |
| Rated Operational Power Star Delta At 380 400 V 50 Hz | 30 KWT |
| Rated Operational Power Star Delta At 380 400 V 50 Hz Uom | KWT |
| Rated Operational Power Star Delta At 500 V 50 Hz | 37 KWT |
| Rated Operational Power Star Delta At 500 V 50 Hz Uom | KWT |
| Rated Operational Power Star Delta At 690 V 50 Hz | 22 KWT |
| Rated Operational Power Star Delta At 690 V 50 Hz Uom | KWT |
| Rated Permanent Current At Ac 21 400 V | 63 AMP |
| Rated Permanent Current At Ac 21 400 V Uom | AMP |
| Rated Permanent Current At Ac 23 400 V | 63 AMP |
| Rated Permanent Current At Ac 23 400 V Uom | AMP |
| Rated Short Time Withstand Current Icw | 1,3 kA, Contacts, 1 second 1.3 kA |
| Rated Switching Capacity | 10 HP at 240 V AC, single-phase 15 HP at 200 V AC, three-phase 15 HP at 240 V AC, three-phase 3 HP at 120 V AC, single-phase 40 HP at 480 V AC, three-phase 40 HP at 600 V AC, three-phase 7.5 HP at 200 V AC, single-phase |
| Rated Uninterrupted Current Iu | 63 AMP |
| Rated Uninterrupted Current Iu Uom | AMP |
| Safe Isolation | 440 V AC, Between the contacts, According to EN 61140 |
| Safety Parameter En Iso 13849 1 | B10d values as per EN ISO 13849-1, table C.1 |
| Screw Size | M6, Terminal screw |
| Shock Resistance | 15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms |
| Short Circuit Current Rating High Fault | 10 kA, SCCR (UL/CSA) 100 A, Class J, max. Fuse, SCCR (UL/CSA) |
| Short Circuit Protection Rating | 80 A gG/gL, Fuse, Contacts |
| Static Heat Dissipation Non Current Dependent Pvs | 0 WTT |
| Static Heat Dissipation Non Current Dependent Pvs Uom | WTT |
| Suitable For | Front mounting center Branch circuits, suitable as motor disconnect, (UL/CSA) |
| Switching Angle | 90 DD |
| Switching Angle Uom | DD |
| Switching Capacity Main Contacts General Use | 63 A, Rated uninterrupted current max. (UL/CSA) |
| Switching Power At 400 V | 30 KWT |
| Switching Power At 400 V Uom | KWT |
| Terminal Capacity | 2 x (1.5 - 10) mm², flexible with ferrule to DIN 46228 2 x (2.5 - 16) mm², solid or stranded 1 x (1 - 25) mm², flexible with ferrules to DIN 46228 12 - 4 AWG, solid or flexible with ferrule 1 x (2.5 - 35) mm², solid or stranded |
| Tightening Torque | 4 Nm, Screw terminals 35.4 lb-in, Screw terminals |
| Uninterrupted Current | Rated uninterrupted current Iu is specified for max. cross-section. |
| Voltage Per Contact Pair In Series | 60 VLT |
| Voltage Per Contact Pair In Series Uom | VLT |
Specifications
| SKU | CS5020483 |
|---|---|
| MPN | 207426 |
| UPC/EAN | 04015082074265 |
You may also like
Eaton 092229
Contact us for pricing and availability
Eaton 200127
Contact us for pricing and availability
Eaton 255895
$433.61Unit
Eaton 255907
$1,150.50Unit
Eaton 255889
$364.99Unit
Eaton 069724
$725.60Unit
Eaton 051806
Contact us for pricing and availability
Eaton 239480
Contact us for pricing and availability
Eaton 276732
Contact us for pricing and availability
Eaton 239402
Contact us for pricing and availability
Eaton 277553
Discontinued - Contact Us For Pricing & Availability
Eaton 277766
Contact us for pricing and availability
