Eaton 1351E-8537

Name: Eaton 1351E-8537
Brand: Eaton
SKU: CS5018958
Price: 525.28 USD
Availability: OutOfStock

SKU: CS5018958MPN: 1351E-8537UPC/EAN: 782116111824

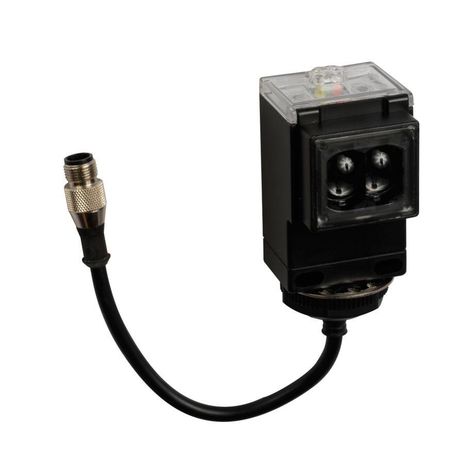

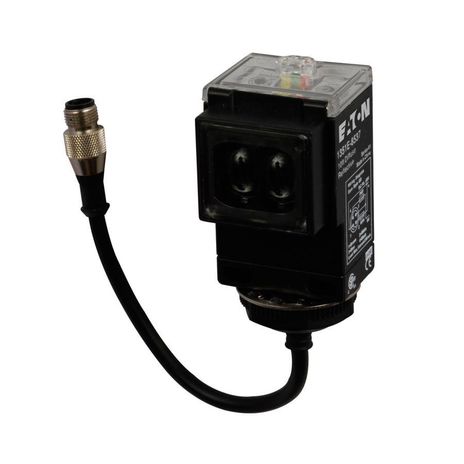

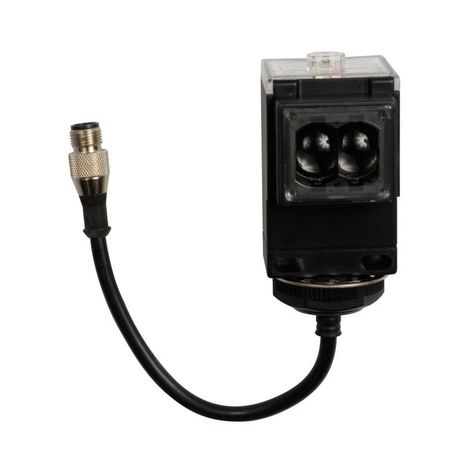

Eaton Enhanced 50 photoelectric sensor

Product Details

Eaton Enhanced 50 Series Photoelectric Sensor, dist. 10 Ft, 250 mA max DC, NPN and PNP Open Collector, 250 mA at 40 Vdc, 4 Pin M12 Pigtail Connector, 10-40 Vdc input, Reverse polarity, short circuit and overload, 0.5 Ft.(.15m)

Attributes

Cable Type	Polyvinyl Chloride (PVC)
Connection	4-pin M12 pigtail connector
Contact Configuration	NPN and PNP open collector
Contact Rating	250 mA at 40 Vdc
Enclosure Material	Fiberglass reinforced plastic
Environmental Rating	IP67, IP69K
Input Voltage	10-40 Vdc
Led Indicator	Output status: green Power on: yellow Marginal gain: red
Maximum Dc Current	250 mA
Operating Mode	Diffuse reflective
Operating Temperature Max	131 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Reverse polarity and short circuit protected
Sensor Type	Diffuse reflective
Switch Type	Photoelectric
Time Delay	Yes
