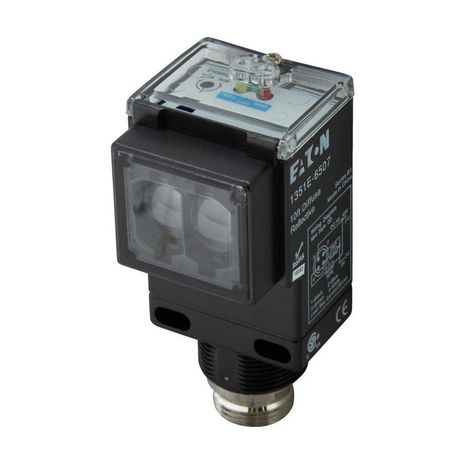

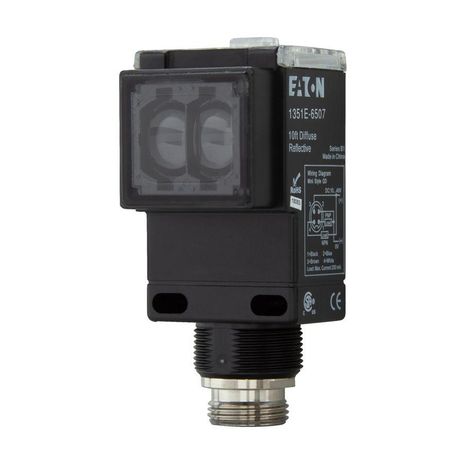

Eaton 1351E-6507
SKU: CS5018945MPN: 1351E-6507UPC/EAN: 782116111756
Eaton Enhanced 50 photoelectric sensor
Contact us for pricing and availability
Product Details
Eaton Enhanced 50 Series Photoelectric Sensor, Photoelectric, Sensor dist. 10 Ft., 250 mA max DC, Reverse polarity, short circuit and overload, NPN/PNP Open Collector, 250 mA at 40 Vdc, 4 Pin Mini Connector, 10-40 Vdc input
Attributes
| Connection | 4-pin mini connector |
| Contact Configuration | NPN and PNP open collector |
| Contact Rating | 250 mA at 40 Vdc |
| Enclosure Material | Fiberglass reinforced plastic |
| Environmental Rating | IP67, IP69K |
| Input Voltage | 10-40 Vdc |
| Led Indicator | Output status: green Marginal gain: red Power on: yellow |
| Maximum Dc Current | 250 mA |
| Operating Mode | Diffuse reflective |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Reverse polarity and short circuit protected |
| Sensor Type | Diffuse reflective |
| Switch Type | Photoelectric |
Specifications
| SKU | CS5018945 |
|---|---|
| MPN | 1351E-6507 |
| UPC/EAN | 782116111756 |
