Eaton 1250E-8537
SKU: CS5018631MPN: 1250E-8537UPC/EAN: 782116112777

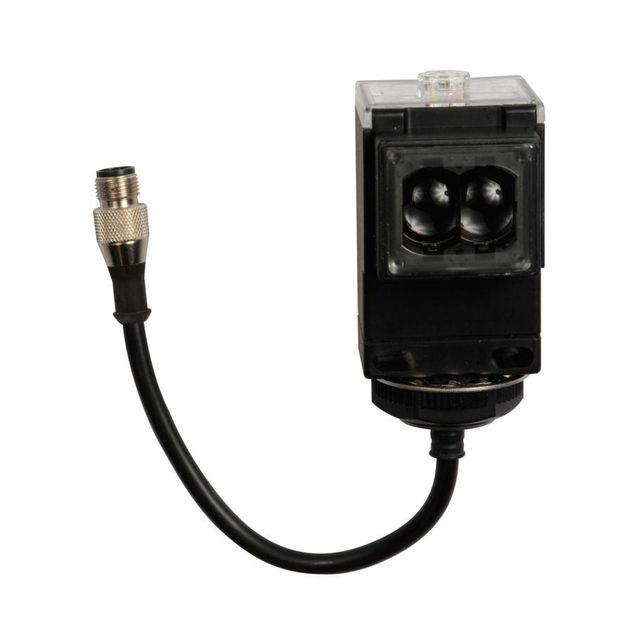

Eaton Enhanced 50 photoelectric sensor
Contact us for pricing and availability
Product Details
Eaton Enhanced 50 Series Photoelectric Sensor, dist. 200 Ft., 250 mA max DC, NPN and PNP Open Collector, 250 mA at 40 Vdc, 4 Pin M12 Pigtail Connector, 10-40 Vdc input, Reverse polarity, short circuit and overload, Thu-Beam
Attributes
| Cable Type | Polyvinyl Chloride (PVC) |
| Connection | 4-pin M12 pigtail connector |
| Contact Configuration | NPN and PNP open collector |
| Contact Rating | 250 mA at 40 Vdc |
| Enclosure Material | Fiberglass reinforced plastic |
| Environmental Rating | IP67, IP69K |
| Input Voltage | 10-40 Vdc |
| Led Indicator | Power on: yellow Marginal gain: red Output status: green |
| Maximum Dc Current | 250 mA |
| Operating Mode | Thru-beam |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Reverse polarity and short circuit protected |
| Sensor Type | Through beam |
| Switch Type | Photoelectric |
| Time Delay | Yes |
Specifications
| SKU | CS5018631 |
|---|---|
| MPN | 1250E-8537 |
| UPC/EAN | 782116112777 |
