Eaton 1351E-8517
SKU: CS5018955MPN: 1351E-8517UPC/EAN: 782116111664

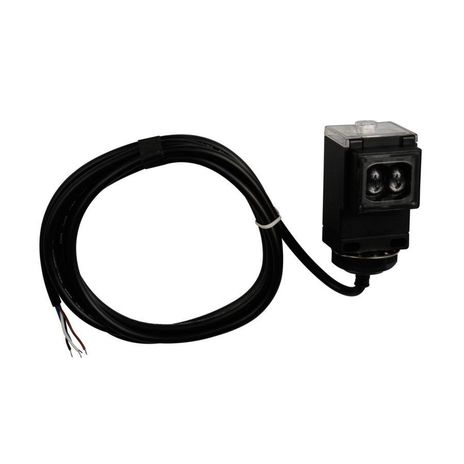

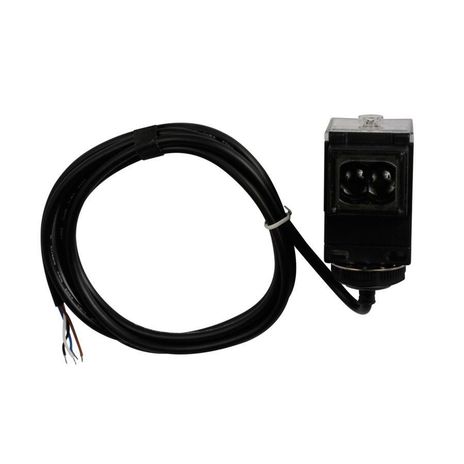

Eaton Enhanced 50 photoelectric sensor
Contact us for pricing and availability
Product Details
Eaton Enhanced 50 Series Photoelectric Sensor, dist. 10 Ft., 250 mA max DC, NPN and PNP Open Collector, 250 mA at 40 Vdc, 6.6 Ft. (2m) Cable, 10-40 Vdc input, Reverse polarity, short circuit and overload, Diffuse Reflective, 6.6 Ft. (2m)
Attributes
| Cable Type | Polyvinyl Chloride (PVC) |
| Connection | 6.6 ft (2 m) cable |
| Contact Configuration | NPN and PNP open collector |
| Contact Rating | 250 mA at 40 Vdc |
| Enclosure Material | Fiberglass reinforced plastic |
| Environmental Rating | IP67, IP69K |
| Input Voltage | 10-40 Vdc |
| Led Indicator | Marginal gain: red Output status: green Power on: yellow |
| Maximum Dc Current | 250 mA |
| Operating Mode | Diffuse reflective |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Reverse polarity and short circuit protected |
| Sensor Type | Diffuse reflective |
| Switch Type | Photoelectric |
| Time Delay | Yes |
Specifications
| SKU | CS5018955 |
|---|---|
| MPN | 1351E-8517 |
| UPC/EAN | 782116111664 |
