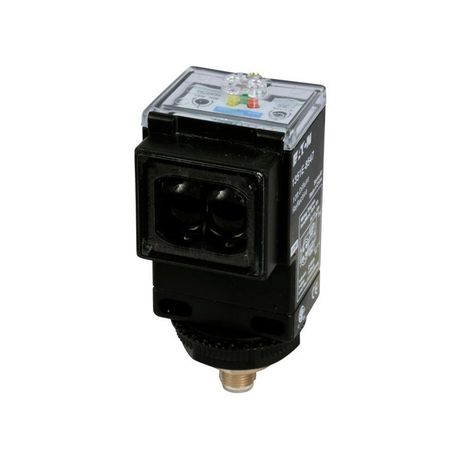

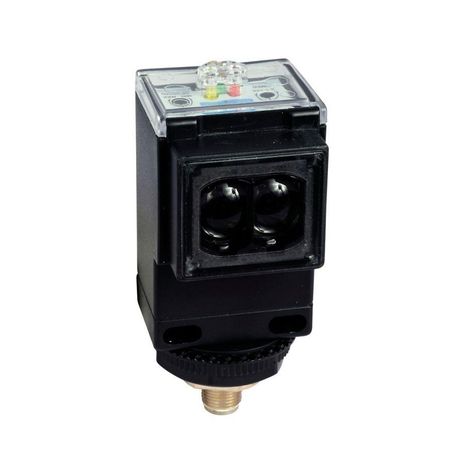

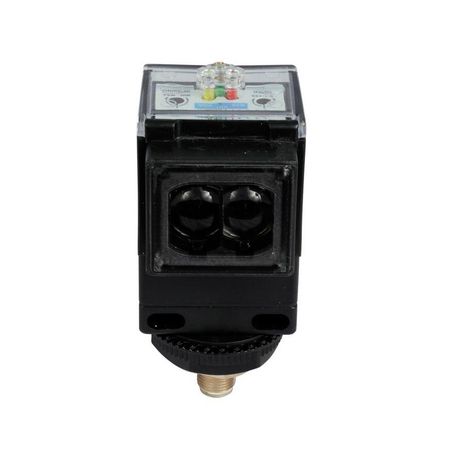

Eaton 1351E-8547

Name: Eaton 1351E-8547
Brand: Eaton
SKU: CS5018960
Price: 525.28 USD
Availability: OutOfStock

SKU: CS5018960MPN: 1351E-8547UPC/EAN: 782116111725

Eaton Enhanced 50 photoelectric sensor

Product Details

Eaton Enhanced 50 Series Photoelectric Sensor, Photoelectric, Sensor dist. 10 Ft., 250 mA max DC, NPN/PNP Open Collector, 250 mA at 40 Vdc, 4 Pin M12 Connector, 10-40 Vdc input, Reverse polarity, short circuit and overload

Attributes

Connection	4-pin M12 connector
Contact Configuration	NPN and PNP open collector
Contact Rating	250 mA at 40 Vdc
Enclosure Material	Fiberglass reinforced plastic
Environmental Rating	IP67, IP69K
Input Voltage	10-40 Vdc
Led Indicator	Marginal gain: red Power on: yellow Output status: green
Maximum Dc Current	250 mA
Operating Mode	Diffuse reflective
Operating Temperature Max	131 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Reverse polarity and short circuit protected
Sensor Type	Diffuse reflective
Switch Type	Photoelectric
Time Delay	Yes
