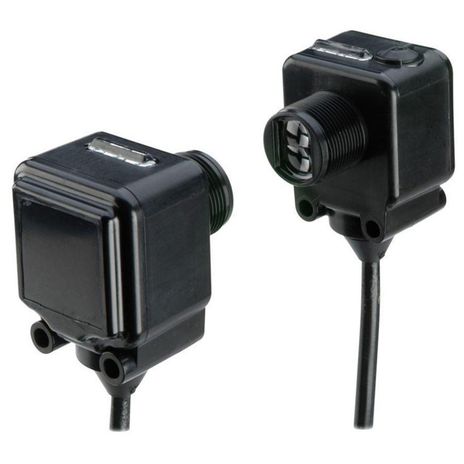

Eaton E65-SMTD15-HD
SKU: CS4873763MPN: E65-SMTD15-HDUPC/EAN: 782114390047
Eaton E65 SM compact photoelectric sensor
Contact us for pricing and availability
Product Details
Eaton SM Series Rectangular Body Photoelectric Sensor, Right Angle, Sensor dist: 49 Ft., 100 mA max DC, NPN and PNP Open Collector, 100 mA at 30 Vdc, 6.6 Ft. (2m) Cable, 10-30 Vdc input, Thru-beam, 6.6 Ft. (2m)
Attributes
| Cable Type | Polyvinyl Chloride (PVC) |
| Connection | 6.6 ft (2 m) cable |
| Contact Configuration | NPN and PNP open collector |
| Contact Rating | 100 mA at 10-30 Vdc |
| Enclosure Material | Cable jacket: PVC Lens: polycarbonate Body: cycoloy |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP68, IP69K 2 |
| Input Voltage | 10-30 Vdc |
| Led Indicator | Output: red Power: green TargetLock: orange |
| Maximum Dc Current | 100 mA |
| Operating Mode | Thru-beam |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Auto reset short circuit |
| Sensor Type | Through beam |
| Series | E65 |
| Switch Type | Photoelectric |
| Type | Photoelectric Sensor |
Specifications
| SKU | CS4873763 |
|---|---|
| MPN | E65-SMTD15-HD |
| UPC/EAN | 782114390047 |
