Eaton E65-SMSD200-HL

SKU: CS4873761MPN: E65-SMSD200-HLUPC/EAN: 782114389751

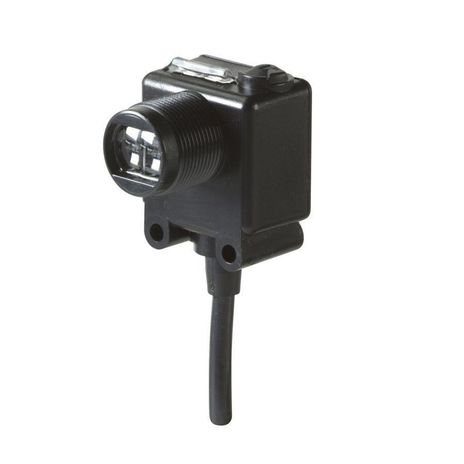

Eaton E65 SM compact photoelectric sensor

Eaton E65-SMSD200-HL
Eaton E65-SMPP050-GD, E65-SMPP050-GL, E65-SMPP050-HD, E65-SMPP050-HL, E65-SMPP100-GD, E65-SMPP100-GL, E65-SMPP100-HD, E65-SMPP100-HL, E65-SMPR3-GD, E65-SMPR3-HD, E65-SMPR3-HL, E65-SMSD200-GD, E65-SMSD200-GL, E65-SMSD200-HD, E65-SMSD200-HL
Eaton E65-SMPP050-GD, E65-SMPP050-GDD, E65-SMPP050-GL, E65-SMPP050-GLD, E65-SMPP050-HD, E65-SMPP050-HDD, E65-SMPP050-HL, E65-SMPP100-GD, E65-SMPP100-GDD, E65-SMPP100-GL, E65-SMPP100-GLD, E65-SMPP100-HD, E65-SMPP100-HDD, E65-SMPP100-HL, E65-SMPR3-GD
Eaton E65-SMPP050-GD, E65-SMPP050-GDD, E65-SMPP050-GL, E65-SMPP050-GLD, E65-SMPP050-HD, E65-SMPP050-HDD, E65-SMPP050-HL, E65-SMPP100-GD, E65-SMPP100-GDD, E65-SMPP100-GL, E65-SMPP100-GLD, E65-SMPP100-HD, E65-SMPP100-HDD, E65-SMPP100-HL, E65-SMPR3-GD
Eaton E65-SMSD200-HL
Eaton E65-SMPP050-GD, E65-SMPP050-GL, E65-SMPP050-HD, E65-SMPP050-HL, E65-SMPP100-GD, E65-SMPP100-GL, E65-SMPP100-HD, E65-SMPP100-HL, E65-SMPR3-GD, E65-SMPR3-HD, E65-SMPR3-HL, E65-SMSD200-GD, E65-SMSD200-GL, E65-SMSD200-HD, E65-SMSD200-HL
Contact us for pricing and availability

Product Details

Eaton SM Series Rectangular Body Photoelectric Sensor, Right Angle, Sensor dist: 8 In., 100 mA max DC, NPN and PNP Open Collector, 100 mA at 30 Vdc, 6.6 Ft. (2m) Cable, 10-30 Vdc input, Diffuse Reflective, 6.6 Ft. (2m)

Attributes

Cable Type Polyvinyl Chloride (PVC)
Connection 6.6 ft (2 m) cable
Contact Configuration NPN and PNP open collector
Contact Rating 100 mA at 10-30 Vdc
Enclosure Material Body: cycoloy Lens: polycarbonate Cable jacket: PVC
Environmental Rating NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP68, IP69K 2
Input Voltage 10-30 Vdc
Led Indicator Power: green Output: red TargetLock: orange
Maximum Dc Current 100 mA
Operating Mode Diffuse reflective
Operating Temperature Max 131 FAH
Operating Temperature Max Uom FAH
Operating Temperature Min -13 FAH
Operating Temperature Min Uom FAH
Protection Auto reset short circuit
Sensor Type Diffuse reflective
Series E65
Switch Type Photoelectric
Type Photoelectric Sensor

Specifications

SKUCS4873761
MPNE65-SMSD200-HL
UPC/EAN782114389751
