Eaton E50BS3

Name: Eaton E50BS3
Brand: Eaton
SKU: CS3082834
Price: 597.51 USD
Availability: OutOfStock

SKU: CS3082834MPN: E50BS3UPC/EAN: 782113328485

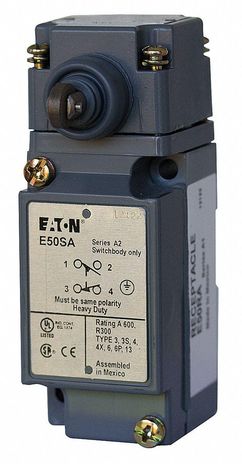

Eaton E50 NEMA heavy duty plug-in limit switch

Eaton E50AH1, E50AH16P, E50AL1, E50AL16P, E50AM16P, E50AR1, E50AR16P, E50AS1, E50AS16P, E50AS2, E50AS3, E50AS36P, E50AT1, E50AT16P, E50AT2

Product Details

Eaton E50 NEMA heavy duty plug-in limit switch, Within 0.003, Screw Terminals, 10A at 240Vac, 1A at 250Vdc, 2NO-2NC, Die Cast Zinc, NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67, 10A, 1A, 14° to 201°F (-10° to 94°C), Side Push Roller

Attributes

Accuracy	Within 0.003
Connection	Screw terminal
Contact Configuration	2 NO-2 NC
Contact Rating	10A at 240Vac, 1A at 250Vdc
Enclosure Material	Die cast zinc
Environmental Rating	NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Maximum Ac Current	10 A
Maximum Dc Current	1 A
Operating Temperature Max	201 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	14 FAH
Operating Temperature Min Uom	FAH
Switch Type	Side push roller
