Square D ZB4BW113

Name: Square D ZB4BW113
Brand: Square D
SKU: CS4814216
Availability: OutOfStock

SKU: CS4814216MPN: ZB4BW113

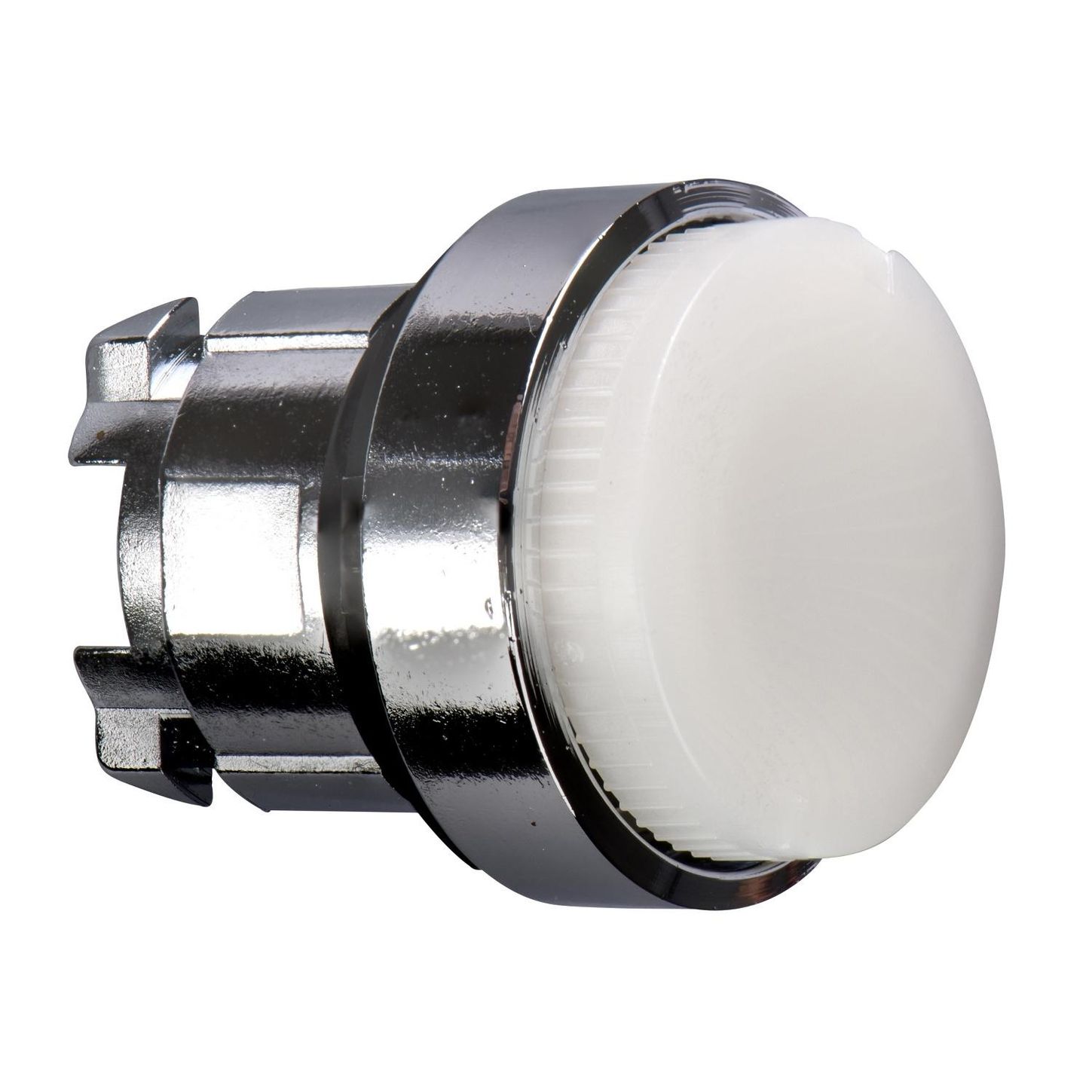

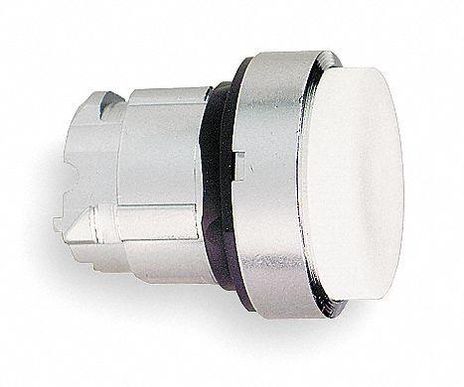

Head for illuminated push button, Harmony XB4, metal, white projecting, 22mm, universal LED, spring return, plain lens

Product Details

White projecting illuminated pushbutton head Dia 22 spring return for integral LED

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Device Presentation	basic sub-assemblies
Device Short Name	ZB4
Head Type	standard
Mechanical Durability	10000000 cycles
Mounting Diameter	22 mm
Operator Additional Information	with plain lens
Product Certifications	LROS (Lloyds register of shipping)# #GL# #UL listed# #CSA# #DNV# #BV
Product Compatibility	integral LED
Product Or Component Type	head for illuminated push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	JIS C8201-5-1# #EN/IEC 60947-5-5# #CSA C22.2 No 14# #EN/IEC 60947-5-1# #EN/IEC 60947-5-4# #UL 508# #EN/IEC 60947-1# #JIS C8201-1
