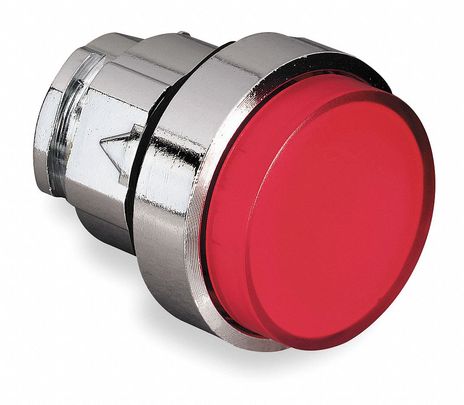

Square D ZB4BW143

Name: Square D ZB4BW143
Brand: Square D
SKU: CS1674433
Availability: OutOfStock

SKU: CS1674433MPN: ZB4BW143

Head for illuminated push button, Harmony XB4, metal, red projecting, 22mm, universal LED, spring return, plain lens

Product Details

Illuminated push button head, metal, projecting, red, Ø22, spring return, plain lens integral LED

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Device Presentation	basic sub-assemblies
Device Short Name	ZB4
Head Type	standard
Mechanical Durability	10000000 cycles
Mounting Diameter	22 mm
Operator Additional Information	with plain lens
Product Certifications	DNV# #BV# #LROS (Lloyds register of shipping)# #UL listed# #GL# #CSA
Product Compatibility	integral LED
Product Or Component Type	head for illuminated push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	EN/IEC 60947-5-5# #EN/IEC 60947-1# #JIS C8201-5-1# #EN/IEC 60947-5-1# #CSA C22.2 No 14# #UL 508# #EN/IEC 60947-5-4# #JIS C8201-1
