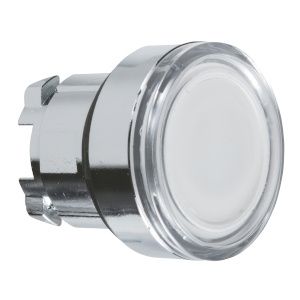

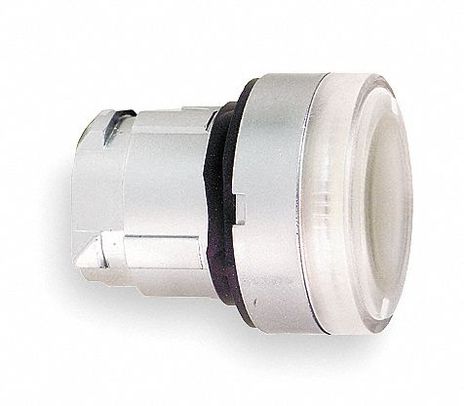

Square D ZB4BW31

Name: Square D ZB4BW31
Brand: Square D
SKU: CS1674464
Availability: OutOfStock

SKU: CS1674464MPN: ZB4BW31

Head for illuminated push button, Harmony XB4, metal, flush, white, 22mm, spring return, plain lens for BA9s bulb

Product Details

White flush illuminated pushbutton head Dia 22 spring return for BA9s bulb

Ambient Air Temperature For Operation	-40-55 °C
Ambient Air Temperature For Operation 1	-40-55 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Device Presentation	basic sub-assemblies
Device Short Name	ZB4
Head Type	standard
Mechanical Durability	10000000 cycles
Mounting Diameter	22 mm
Operator Additional Information	with plain lens
Product Certifications	GL# #UL listed# #DNV# #CSA# #LROS (Lloyds register of shipping)# #BV
Product Compatibility	BA 9s
Product Or Component Type	head for illuminated push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	CSA C22.2 No 14# #JIS C8201-5-1# #UL 508# #EN/IEC 60947-1# #EN/IEC 60947-5-1# #EN/IEC 60947-5-5# #EN/IEC 60947-5-4# #JIS C8201-1
