Square D ZB4BS834

Name: Square D ZB4BS834
Brand: Square D
SKU: CS1667230
Availability: OutOfStock

SKU: CS1667230MPN: ZB4BS834

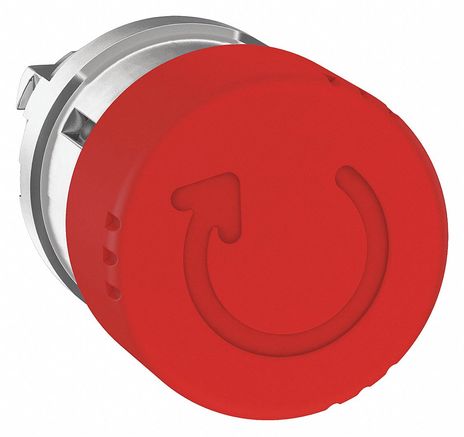

Emergency stop head, Harmony XB4, switching off, metal, red mushroom 30mm, 22mm, trigger latching turn to release

Product Details

Red Emergency stop pushbutton head 22mm trigger and latching turn release

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Device Presentation	basic element
Device Short Name	ZB4
Head Type	standard
Mechanical Durability	300000 cycles
Mounting Diameter	22 mm
Product Certifications	LROS (Lloyds register of shipping)# #GL# #CSA# #BV# #DNV# #UL listed
Product Or Component Type	head for emergency switching off push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Reset	turn to release
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	EN/IEC 60204-1# #JIS C8201-5-1# #GB 14048.5# #EN/IEC 60947-1# #EN/IEC 60947-5-4# #CSA C22.2 No 14# #EN/IEC 60947-5-1# #EN/ISO 13850# #IEC 60364-5-53# #UL 508# #EN/IEC 60947-5-5# #JIS C8201-1
