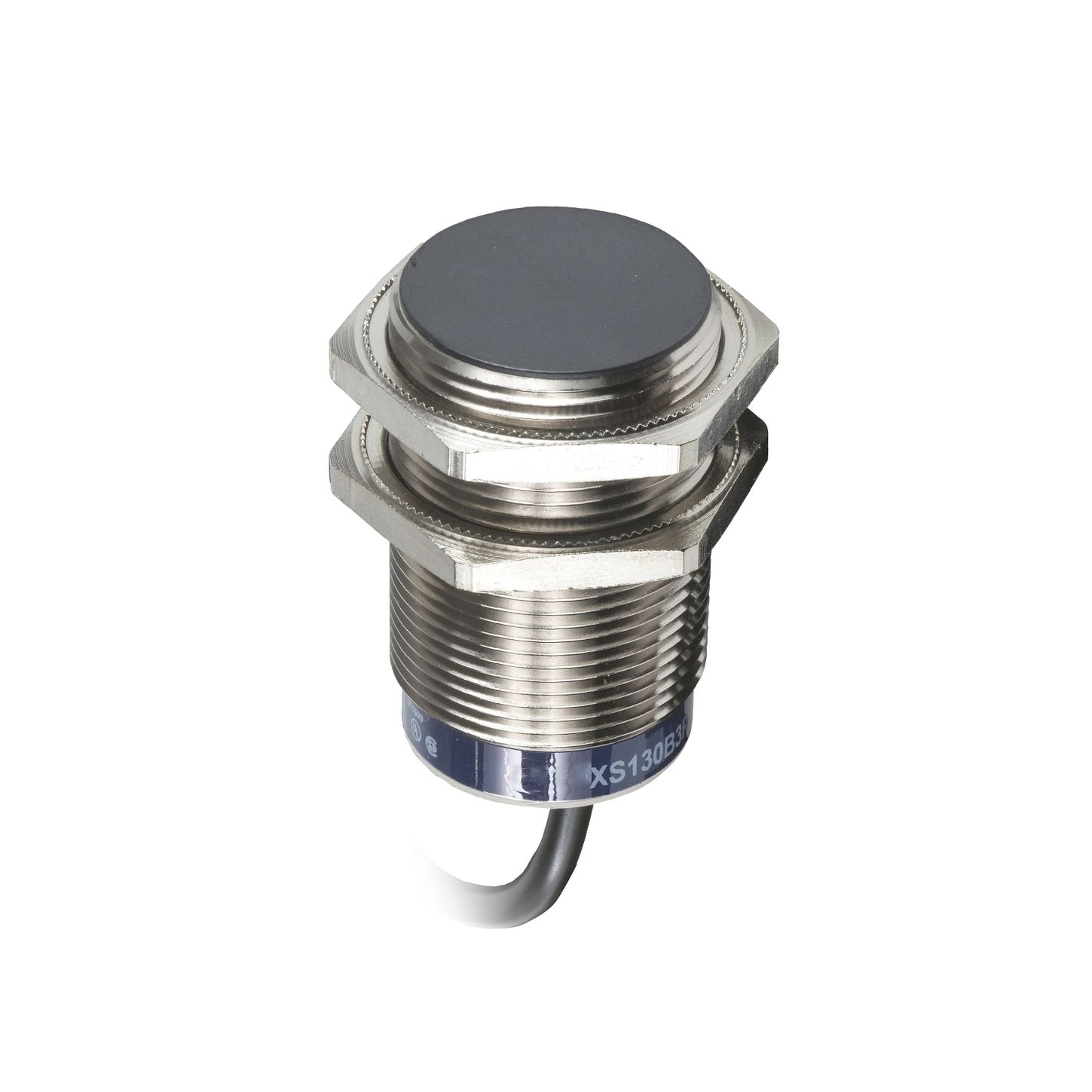

Square D XS630B1PAL2

Name: Square D XS630B1PAL2
Brand: Square D
SKU: CS1674125
Price: 165.01 USD
Availability: InStock

SKU: CS1674125MPN: XS630B1PAL2

Inductive proximity sensors XS, inductive sensor XS6 M30, L62mm, brass, Sn15mm, 12...48 VDC, cable 2 m

$165.01

Unit

1 Unit Available at Factory - Ships Same/Next Business Day

Quantity

remove

add

Product Details

Inductive sensor XS6 M30 - L62mm - brass - Sn15mm - 12..48VDC - cable 2m

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Cable Composition	3 x 0.34 mm²
Detection Face	frontal
Detector Flush Mounting Acceptance	flush mountable
Device Application	mobile equipment
Differential Travel	1…15% of Sr
Discrete Output Function	1 NO
Discrete Output Type	PNP
Enclosure Material	nickel plated brass
Front Material	PPS
Marking	CE
Marking 1	CE
Material	metal
Maximum Delay First Up	10 ms
Maximum Delay Recovery	1.4 ms
Maximum Delay Response	0.6 ms
Operating Zone	0-12 mm
Output Circuit Type	DC
Product Certifications	CSA# #UL# #E2
Range Of Product	Telemecanique Inductive proximity sensors XS
Sensing Range	> 8…15 mm
Sensor Design	cylindrical M30
Sensor Name	XS6
Sensor Type	inductive proximity sensor
Series Name	general purpose
Size	62 mm
Thread Type	M30 x 1.5
Type Of Output Signal	discrete
Wire Insulation Material	PvR
Wiring Technique	3-wire
