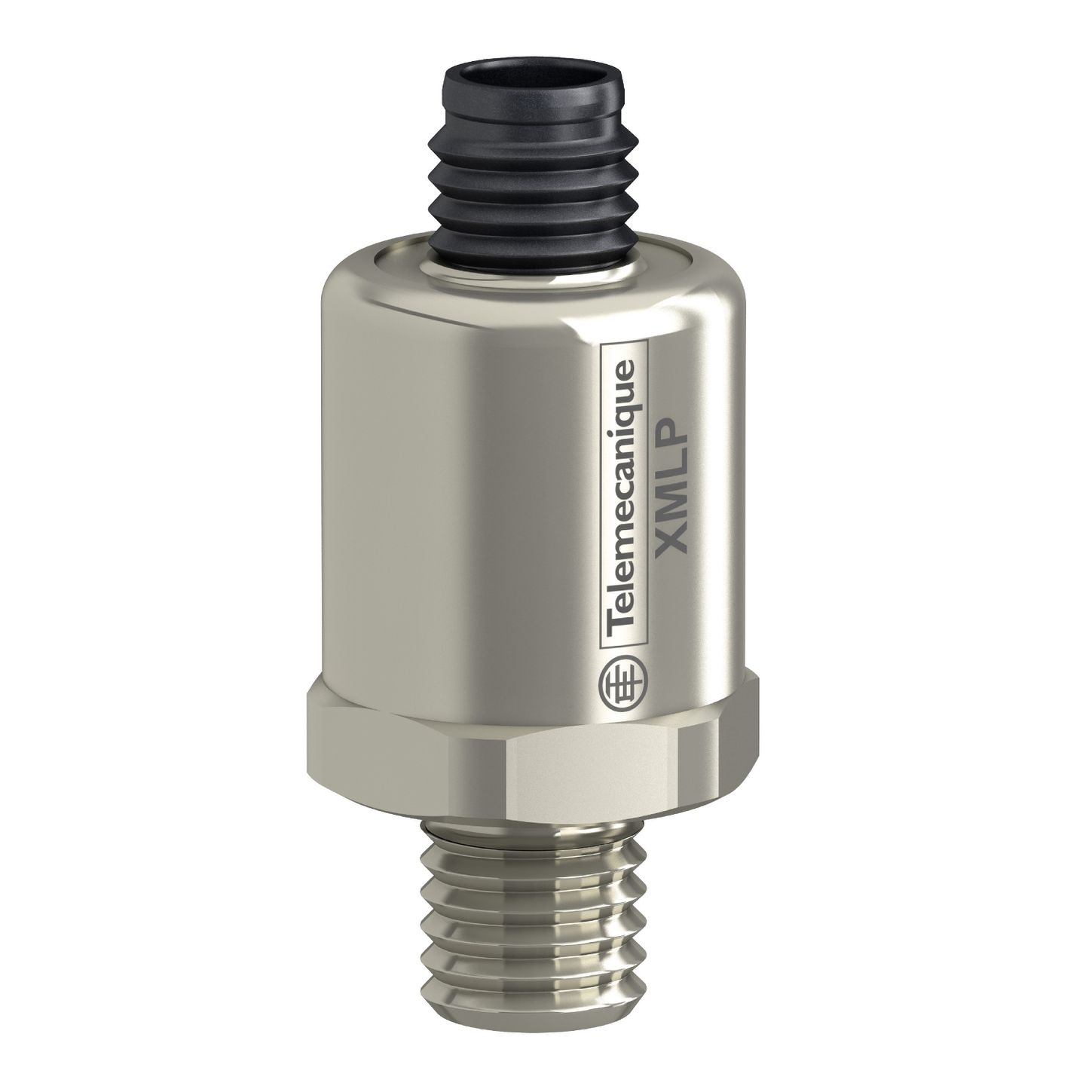

Square D XMLP100PD230

Name: Square D XMLP100PD230
Brand: Square D
SKU: CS4814071
Availability: OutOfStock

SKU: CS4814071MPN: XMLP100PD230

Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 100 PSI, ¼”18NPT, 4...20 mA, M12, set 1

Product Details

Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 100 PSI, ¼”18NPT, 4...20 mA, M12, set 1

Uimp Rated Impulse Withstand Voltage	0.5 kV
Accuracy	0.1 % of the measuring range
Ambient Air Temperature For Operation	-30-85 °C
Ambient Air Temperature For Operation 1	-30-85 °C
Ambient Air Temperature For Storage	-50-100 °C
Current Consumption	< 23 mA
Destruction Pressure	900 psi
Diameter	26 mm
Drift Of The Sensitivity	± 0.02 % of measuring range/°K
Drift Of The Zero Point	± 0.02 % of measuring range/°K
Electrical Circuit Type	control circuit
Local Display	without
Materials In Contact With Fluid	stainless steel AISI 316L
Maximum Permissible Accidental Pressure	300 psi
Measurement Accuracy	± 0.5 % of the measuring range
Mechanical Durability	10000000 cycles
Operating Position	any position
Pressure Sensor Name	XMLP
Pressure Sensor Type	pressure transmitter
Pressure Setting Range	0-100 psi
Product Certifications	EAC# #cULus# #RCM# #CE
Product Or Component Type	electronic pressure sensors
Protection Type	load short-circuit# #reverse polarity
Protective Treatment	TC
Quantity Per Set	set of 1
Range Of Product	OsiSense XM
Standards	EN/IEC 61326-2-3# #NSF ANSI 61
Type Of Output Signal	analogue
Type Of Packing	individual
