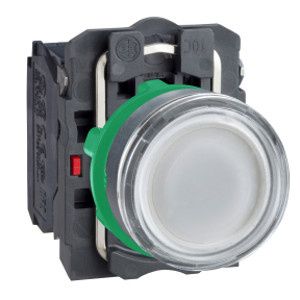

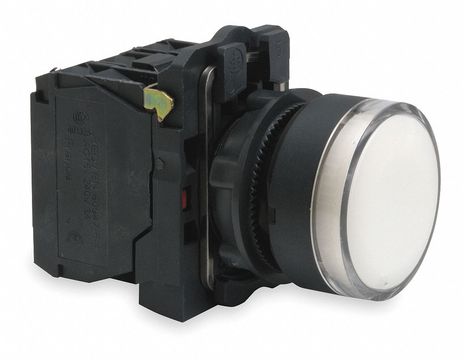

Square D XB5AW3165

Name: Square D XB5AW3165
Brand: Square D
SKU: CS1676919
Availability: OutOfStock

SKU: CS1676919MPN: XB5AW3165

Illuminated push button, Harmony XB5, white flush, plastic, 22mm, spring return, 1NO + 1NC, 250V

Product Details

Harmony Flush Complete Illuminated Pushbutton

Mounting Diameter: 22mm* Shape of Signaling Unit Head: Round* Type of Operator: Spring Return* Operator Profile: White flush unmarked* Operator Additional Information: With plain lens* Contacts Type and Composition: 1 NO + 1 NC* Contacts Operation: Slow-break* Rated Supply Voltage: \<\= 250V* Connections-Terminals: Screw Clamp Terminals* Light Source: Bulb not included* Degree of Protection: NEMA 4X, 13

Ambient Air Temperature For Operation	-40-55 °C
Ambient Air Temperature For Operation 1	-40-55 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	dark grey plastic
Bulb Base	BA 9s
Cap Operator Or Lens Colour	white
Cap Operator Or Lens Colour 1	white
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO + 1 NC
Contacts Usage	standard contacts
Device Presentation	complete product
Device Short Name	XB5
Fixing Collar Material	plastic
Head Type	standard
Light Source	bulb not included
Mechanical Durability	10000000 cycles
Mounting Diameter	22 mm
Operator Additional Information	with plain lens
Product Certifications	UL listed# #BV# #GL# #LROS (Lloyds register of shipping)# #DNV# #CSA
Product Or Component Type	illuminated push-button
Protective Treatment	TH
Range Of Product	Harmony XB5
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Signalling Type	steady
Signalling Type 1	steady
Terminals Description Iso N 1	(13-14)NO# #(21-22)NC
