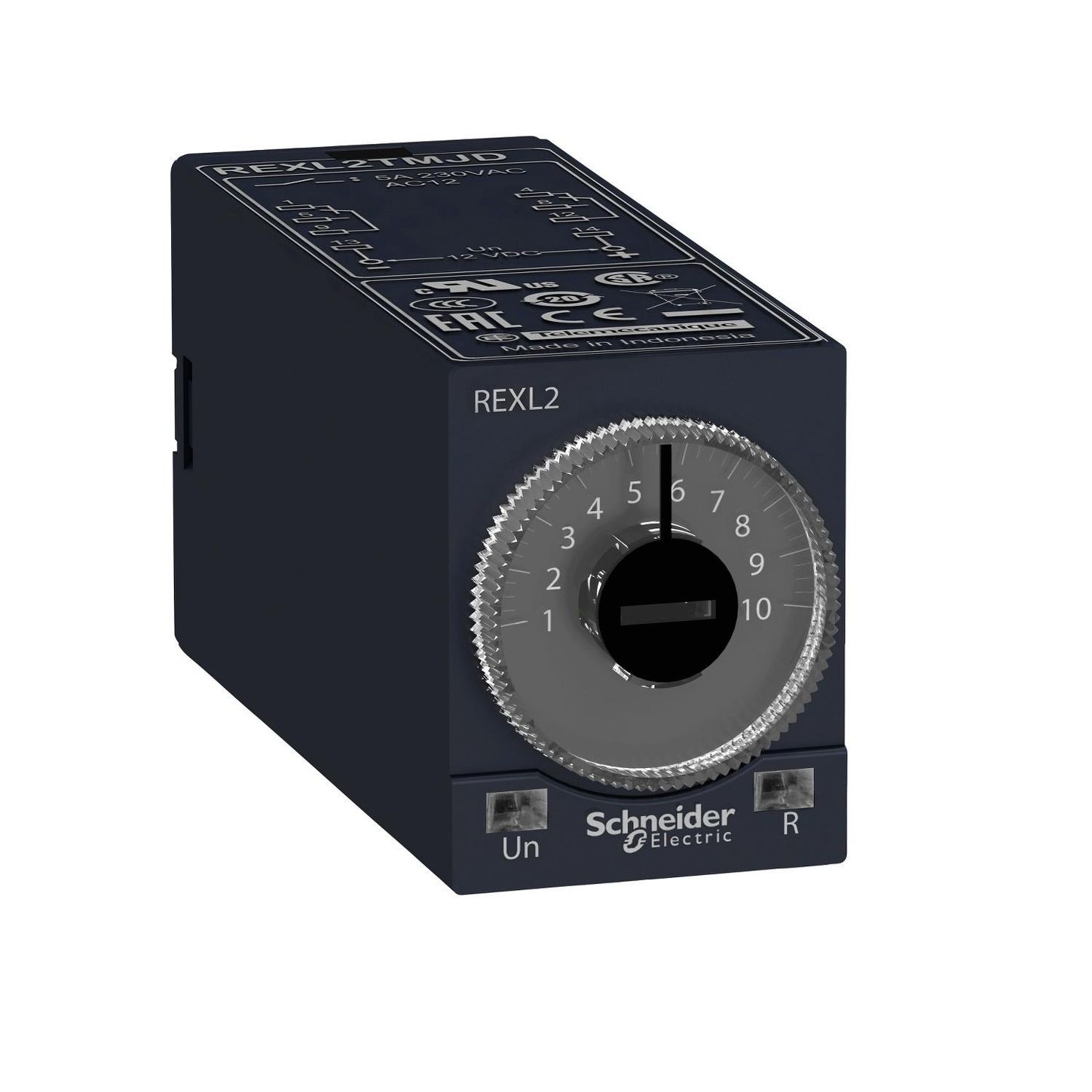

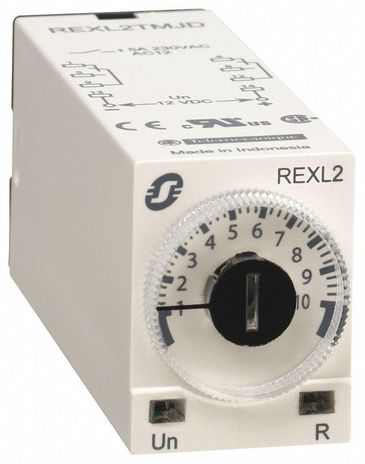

Square D REXL2TMP7

Name: Square D REXL2TMP7
Brand: Square D
SKU: CS3751675
Availability: OutOfStock

SKU: CS3751675MPN: REXL2TMP7

single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 230V AC

Product Details

Modular timing relay, 5 A, 2 CO, 0.1 s..100 h, on-Delay, 230 V AC

Ambient Air Temperature For Operation	-20-60 °C
Ambient Air Temperature For Operation 1	-20-60 °C
Ambient Air Temperature For Storage	-40-70 °C
Component Name	REXL
Contacts Material	cadmium free
Contacts Type And Composition	2 C/O
Discrete Output Type	relay
Immunity To Microbreaks	5 ms
Maximum Switching Capacity	4 x 5 A
Mechanical Durability	10000000 cycles
Minimum Switching Current	100 mA
Output Overvoltage Protection	2 J
Power Consumption In Va	3 VA
Power Consumption In Va 1	3 VA
Product Certifications	UL# #cUL
Product Or Component Type	single function relay
Range Of Product	Harmony Timer Relays
Repeat Accuracy	± 0.5 %
Repeat Accuracy 1	± 0.5 %
Standards	EN/IEC 60601-1# #89/336/EEC# #EN 61000-6-2# #EN 50081-2# #EN/IEC 61812-1# #73/23/EEC# #EN/IEC 60601-2# #93/68/EEC
Temperature Drift	0.05 %/°C
Time Delay Range	10…100 h# #1…10 min# #1…10 h# #0.1…1 s# #6…60 min# #6…60 s# #1…10 s
Time Delay Type	power on-delay
Time Delay Type 1	power on-delay
Voltage Drift	± 0.2 %/V
Voltage Range	0.85…1.15 Us
