APC SMT2200US

Name: APC SMT2200US
Brand: APC
SKU: CS4805341
Availability: OutOfStock

SKU: CS4805341MPN: SMT2200USUPC/EAN: 731304305620

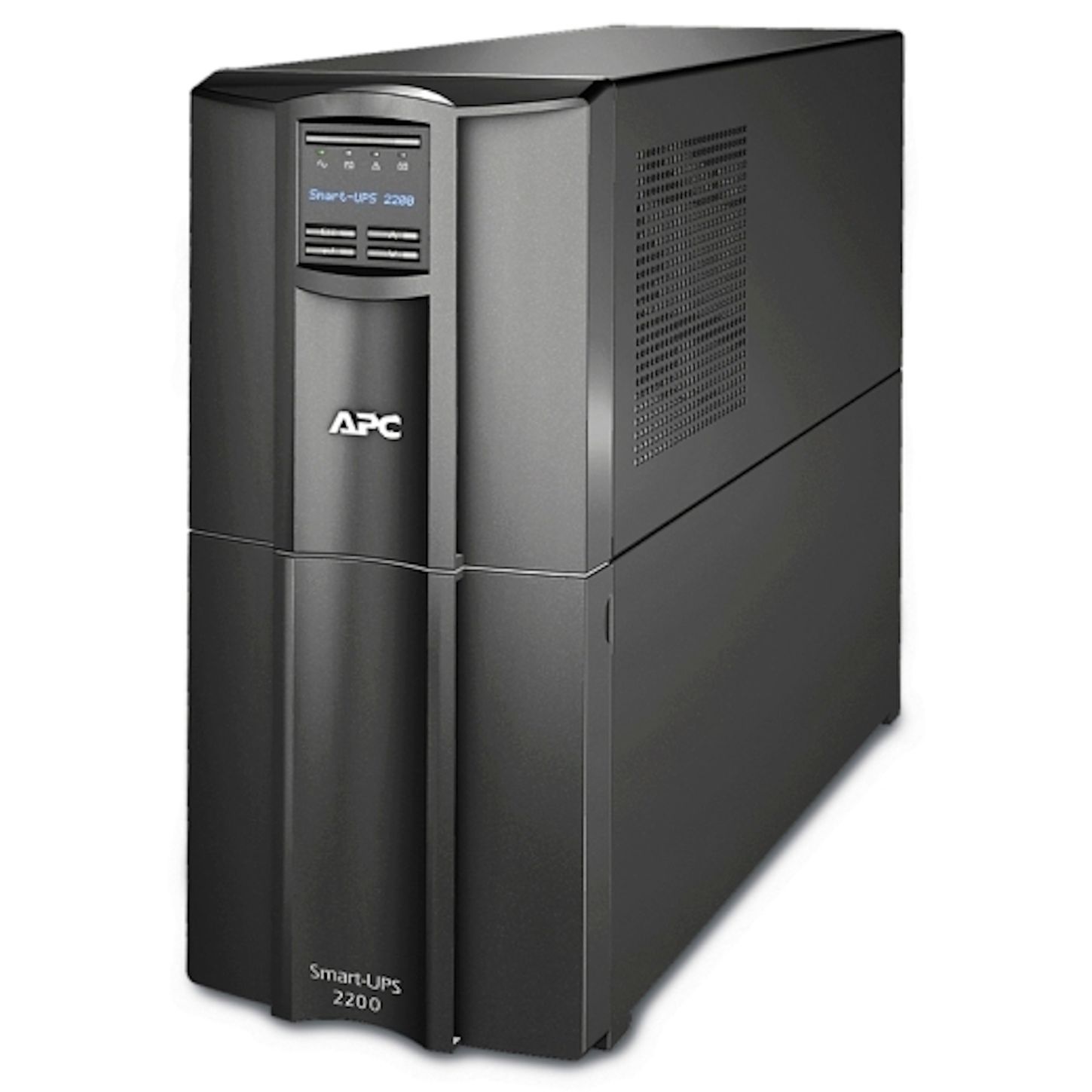

APC Smart-UPS, Line Interactive, 2200VA, Tower, 120V, 8x NEMA 5-15R+2x NEMA 5-20R outlets, SmartSlot, AVR, LCD, TAA

Product Details

**APC Smart-UPS 2200VA LCD 120V TAA

Output:**

Output power capacity : 1.92kWatts / 1.92kVA
Max Configurable Power (Watts) : 1.98kWatts / 2.2kVA
Nominal Output Voltage : 20V
Output Voltage Distortion : Less than 5%
Output Frequency (sync to mains) : 50/60Hz +/- 3 Hz
Topology : Line Interactive
Waveform type : Sine wave
Output Connections : (2) NEMA 5-20R, (8) NEMA 5-15R
Transfer Time 4ms typical : 8ms maximum

Input:

Nominal Input Voltage : 120V
Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections : NEMA 5-20P
Cord Length : 6ft (1.83meters)
Input voltage range for main operations : 82 - 144V
Input voltage adjustable range for mains operation : 75 - 154V
Number of Power Cords : 1

Attributes

Sena Acoustic Level	45 dBA
Sena Additional Specification	TAA Compliant
Sena Alarm	alarm when on battery : distinctive low battery alarm : configurable delays
Sena Ambient Air Temperature For Operation	0-40 °C
Sena Ambient Air Temperature For Storage	-15-45 °C
Sena Battery Charger Power	233 W rated
Sena Battery Curve	B
Sena Battery Life	3-5 year(s)
Sena Battery Recharge Time	3 h
Sena Battery Type	lead-acid battery
Sena Control Panel	multifunction LCD status and control console
Sena Curve Equation	efficiency
Sena Curve Fixed Loss	0.0057999999262393
Sena Curve Load Maximum	1.0000
Sena Curve Load Minimum	0.0099999997764826
Sena Curve Square Loss	0.013600000180304
Sena Curve Test Cond Id	Curve fit of data measured in accordance with the ENERGY STAR Test Method for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 120V/60Hz electrical input and balanced resistive load (PF =
Sena Curve X Axis Maximum	1.0000
Sena Curve X Axis Title	load
Sena Curve X Axis Units	percentage
Sena Curve Y Axis Maximum	1.0000
Sena Curve Y Axis Minimum	0.5000
Sena Curve Y Axis Title	efficiency
Sena Curve Y Axis Units	percentage
Sena Emergency Power Off	yes
Sena Equipment Protection Policy	lifetime : $150000
Sena Free Slots	1.0000
Sena Graph Display	1.0000
Sena Harmonic Distortion	less than 5 %
Sena Heat Dissipation	275 Btu/h
Sena Input Voltage	120 V
Sena Input Voltage 1	120 V
Sena Input Voltage Limits	75…154 V adjustable 82…144 V
Sena Maximum Configurable Power In Va	2200 VA
Sena Maximum Configurable Power In W	1980 W
Sena Mounting Location	front
Sena Mounting Mode	not rack-mountable
Sena Mounting Preference	no preference
Sena Nb Of Power Socket Outlets	2 NEMA 5-20R 8 NEMA 5-15R
Sena Network Frequency	50/60 Hz ± 3 Hz auto-sensing
Sena Noise Suppression	full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Sena Number Of Battery Replacement Quantity	1.0000
Sena Number Of Cables	1.0000
Sena Number Of Tare Power	47 W
Sena Operating Altitude	0…10000 ft
Sena Output Frequency	50/60 Hz ± 3 Hz sync to mains
Sena Output Voltage	120 V
Sena Output Voltage 1	120 V
Sena Performance Multiplier	1.0000
Sena Plug Standard	NEMA 5-20P
Sena Product Certifications	CSA# #TAA compliance
Sena Provided Equipment	CD with software documentation CD Smart UPS signalling RS-232 cable USB cable
Sena Provided Equipment 1	CD with software documentation CD Smart UPS signalling RS-232 cable USB cable
Sena Provided Equipment 2	CD with software documentation CD Smart UPS signalling RS-232 cable USB cable
Sena Rated Power In Va	1920 VA
Sena Rated Power In W	1920 W
Sena Redundant	No
Sena Relative Humidity	0-95 %
Sena Show Note Op Temperature	No
Sena Size Ups Version	internetworking# #server# #telecom
Sena Standards	FCC part 15 class A# #UL 1778
Sena Storage Altitude	0-50000 ft
Sena Storage Relative Humidity	0-95 %
Sena Surge Energy Rate	530 J
Sena Transfer Time	4 ms typical : 8 ms maximum
Sena Ups Design Life	6 year(s)
Sena Ups Size	S
Sena Ups Type	line interactive
Sena Usb Compatible	Yes
Sena Value Multiplier	1.0000
Sena Wave Type	sine wave
