APC SMT2200C

Name: APC SMT2200C
Brand: APC
SKU: CS3661214
Availability: OutOfStock

SKU: CS3661214MPN: SMT2200CUPC/EAN: 731304331049

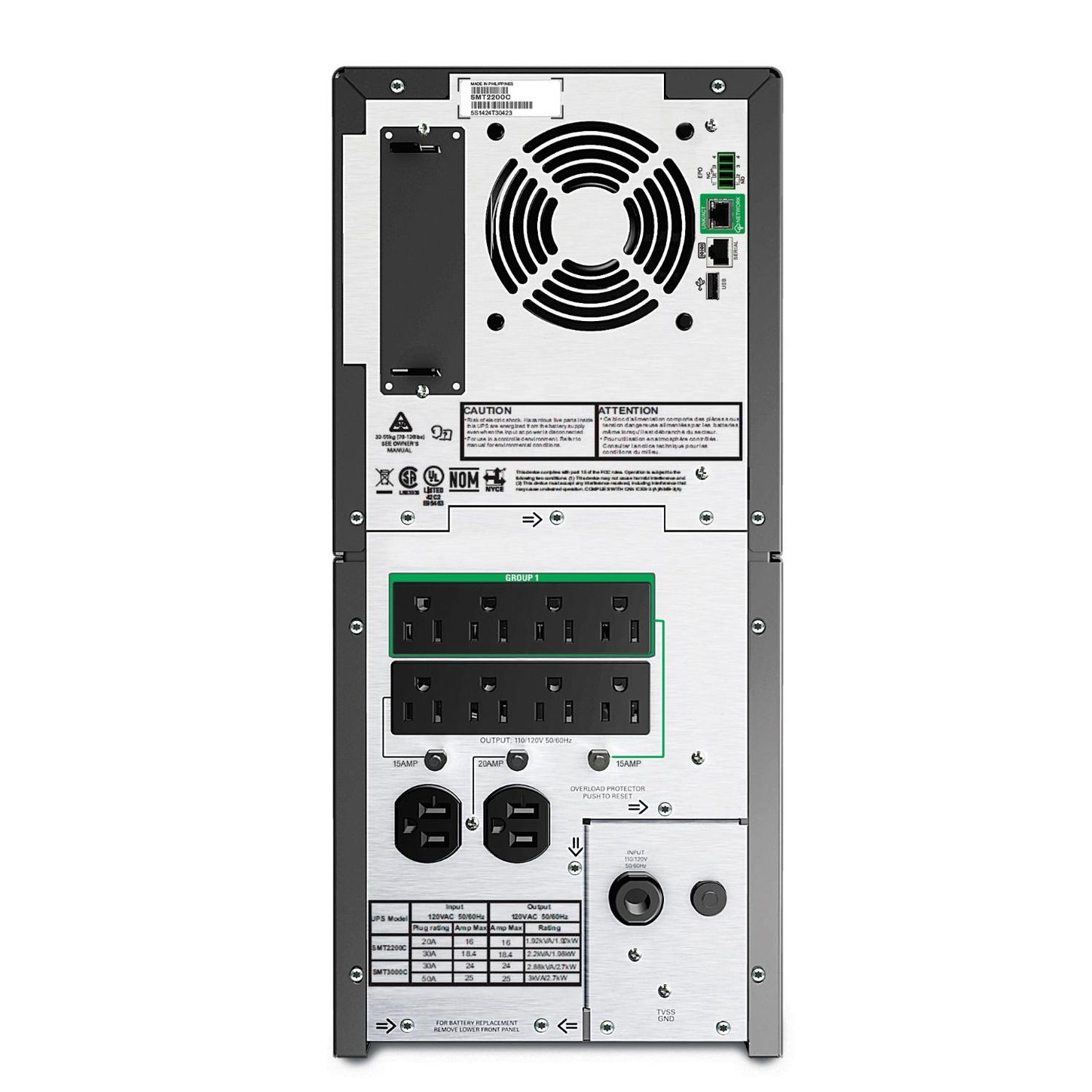

APC Smart-UPS, Line Interactive, 2200VA, Tower, 120V, 8x NEMA 5-15R+2x NEMA 5-20R outlets, SmartConnect Port+SmartSlot, AVR, LCD

Documents

APC, Square D SMT1000C, SMT1000RM2UC, SMT2200C, SMT3000RM2UC, SMT750C, SMT750RM2UC Manual

Product Details

APC Smart-UPS 2200VA LCD 120V with SmartConnect

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices

Includes: CD with software, Documentation CD, Smart UPS signaling RS-232 cable, USB cable

Attributes

Acoustic Level	45 dBA
Additional Specification	cloud-enabled monitoring
Alarm	alarm when on battery : distinctive low battery alarm : configurable delays
Ambient Air Temperature For Operation	0-40 °C
Ambient Air Temperature For Storage	-15-45 °C
Battery Charger Power	271 W rated
Battery Curve	B
Battery Life	3-5 year(s)
Battery Recharge Time	3 h
Battery Type	lead-acid battery
Control Panel	multifunction LCD status and control console
Curve Equation	efficiency
Curve Fixed Loss	0.0027999999001622
Curve Load Maximum	1.0000
Curve Load Minimum	0.0099999997764826
Curve Square Loss	0.012500000186265
Curve Test Cond Id	Curve fit of data measured in accordance with the ENERGY STAR Test Method for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 120V/60Hz electrical input and balanced resistive load (PF =
Curve X Axis Maximum	1.0000
Curve X Axis Title	load
Curve X Axis Units	percentage
Curve Y Axis Maximum	1.0000
Curve Y Axis Minimum	0.5000
Curve Y Axis Title	efficiency
Curve Y Axis Units	percentage
Emergency Power Off	yes
Equipment Protection Policy	lifetime : $150000
Free Slots	1.0000
Graph Display	1.0000
Harmonic Distortion	less than 5 %
Heat Dissipation	275 Btu/h
Input Voltage	120 V
Input Voltage 1	120 V
Input Voltage Limits	75…154 V adjustable 82…144 V
Maximum Configurable Power In Va	2200 VA
Maximum Configurable Power In W	1980 W
Mounting Location	front
Mounting Mode	not rack-mountable
Mounting Preference	no preference
Nb Of Power Socket Outlets	2 NEMA 5-20R 8 NEMA 5-15R
Network Frequency	50/60 Hz ± 3 Hz auto-sensing
Noise Suppression	full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Number Of Battery Replacement Quantity	1.0000
Number Of Cables	1.0000
Number Of Tare Power	35 W
Operating Altitude	0…10000 ft
Output Frequency	50/60 Hz ± 3 Hz sync to mains
Output Voltage	120 V
Output Voltage 1	120 V
Performance Multiplier	1.0000
Plug Standard	NEMA 5-20P
Product Certifications	cULus# #ENERGY STAR V2.0 (USA)
Provided Equipment	Smart UPS signalling RS-232 cable USB cable
Provided Equipment 1	Smart UPS signalling RS-232 cable USB cable
Provided Equipment 2	Smart UPS signalling RS-232 cable USB cable
Rated Power In Va	1920 VA
Rated Power In W	1920 W
Redundant	No
Relative Humidity	0-95 %
Show Note Op Temperature	No
Size Ups Version	internetworking# #server# #telecom
Standards	CSA C22.2 No 107.1# #FCC part 15 class A# #UL 1778
Storage Altitude	0-50000 ft
Storage Relative Humidity	0-95 %
Surge Energy Rate	530 J
Transfer Time	6 ms typical : 10 ms maximum
Ups Design Life	6 year(s)
Ups Size	S
Ups Type	line interactive
Usb Compatible	Yes
Value Multiplier	1.0000
Wave Type	sine wave
