Omega DR-I3P

SKU: CS4232266MPN: DR-I3P

Isolated Universal Signal Transmitter

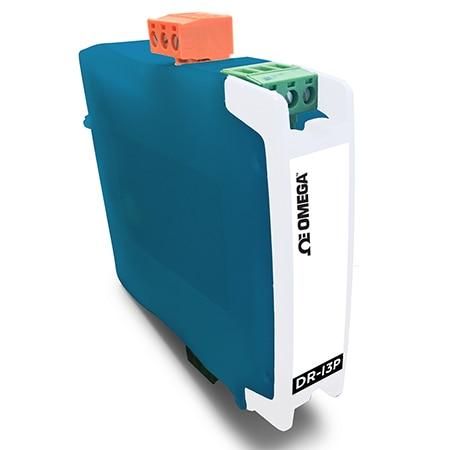

Omega DR-I3P
$243.64
Unit
1 in stock
remove
add

Documents

Product Details

  • Universal Input - TC, RTD, mA, V, Ω, Potentiometer, NTC
  • Configurable output in 4-20mA or 0-10Vdc
  • Universal Power Supply 18-265V ac/dc
  • Simple Configuration - No Additional Configuration Tools Required

Attributes

Width 22.5 mm
Height 108 mm
Length 106 mm
Weight 150 g
Mounting DIN Rail 35 mm Standard
Approvals CE, RoHS
Isolation 2300 Veff
Materials Polyamide V0
Series ID DR-I3P-Signal-Converter
Input Type Thermocouple, RTD,Thermistor, Resistance, Potentiometer, Current, Voltage
Wire Gauge 17 to 14 AWG
Display Type 2 Digit LCD
Warm Up Time 15 min
Output Signal Current, Voltage
Response Time Step Response: 300 msec
Supply Voltage 18 to 265 Vac /Vdc
Input Range Note Process: 4/20 mA (active and passive, max 25 mA, Vterm<1.2 Vdc), 0/10 Vdc (max. 25 Vdc, Zin=1 MOhm);Excitation Voltage: +15 Vdc (@30 mA);Thermocouple: J, K, N, E, T, R and S (automatic compensation for the thermocouple cold junction)‘Pt’ and ‘Ni’ probes: Pt100 (2 and 3 wires, with automatic cable compensation up to 30 Ohm), Pt500, Pt1000, Ni100, Ni1000 (2 wires);‘NTC’ probes: NTC (with R25=10K, Beta=3500), NTC 44006;Resistances: ranges for 100 K, 50 K, 25 K, 5 K and 2.5 KOhms;Potentiometers: nominal from 500 Ohm up to 20 KOhm potentiometers
Number of Inputs 7
Country of Origin United States
Electrical Output 4 to 20 mA
Enclosure Ratings IP30
Power Consumption max 1.5 W
Supply Power Note 18 to 265 Vac / dc (isolated 2500 Veff) (20 to 240 Vac/dc ±10%) Overvoltage category: 2 AC frequency: 45 to 65 Hz
Supply Power Type AC/DC
Response Time Note 300mSec. (0% to 99% of signal)
Voltage Output Range 0 to 10 Vdc
Electrical Connection Screw Terminal
Temperature Stability 150ppm/°C
Storage Temperature, Max 70 °C
Storage Temperature, Min -20 °C
Current Measurement Range 4 to 20 mA
Voltage Measurement Range 0 to 10 Vdc
Operating Temperature, Max 50 °C
Operating Temperature, Min 0 °C
Temperature Measurement Range J: 0 to 1200°C, K: 0 to 1350°C, N: 0 to 1300°C , E: 0 to 900°C, T: 0 to 400°C, R: 0 to 1750°C, S: 0 to 1950°C, RTD: -200 to 700°C, TH : -50 to 90°C

Specifications

SKUCS4232266
MPNDR-I3P
