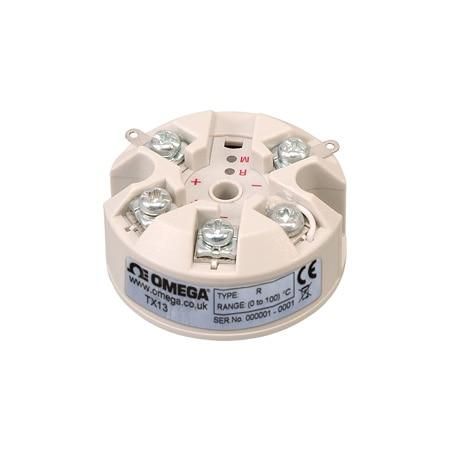

Omega TX13
SKU: CS5795097MPN: TX13
Thermocouple Input Temperature Transmitter w/ Pushbutton Config
Product Details
- K, J, N, E, T, R, S Thermocouples and mV Inputs
- Pushbutton Configuration
- 56 Preprogrammed Ranges Ready-to-Use
- User Trim - Null Out Sensor Error
Attributes
| Height | 21 mm |
| Weight | 31 g |
| Accuracy | ± 5 µA |
| Diameter | 43 mm |
| Approvals | BS EN 61326 ; 1998 – Electrical equipment for measurement and control ANNEX A ; ANNEX F |
| Isolation | Galvanic Isolatiion, 250 Vdc |
| Series ID | TX13-Smart-Temp-Tx |
| Stability | Offset: 0.1°C/°C;Span: 0.05°C/°C |
| Input Type | Thermocouple, Voltage |
| Calibration | Pushbutton |
| Output Load | [(Vsupply-10)/20] kΩ |
| Sensor Type | Transmitter |
| Probe Length | 0 mm |
| Warm Up Time | 1 min to full accuracy |
| Output Detail | 2 wire, 4 to 20 mA current loop Maximum Output: 21.5 mA (in high burnout condition) Minimum Output: 3.8 mA (in low burnout condition) |
| Response Time | 1 sec |
| Start Up Time | I out < 4 mA during start up |
| Humidity Range | 10 to 90% RH non condensing |
| Input Accuracy | ± 0.5 °C |
| Setup Controls | Pushbutton, Program LED will flash in bursts |
| Supply Voltage | 10 to 30 Vdc |
| Accuracy Detail | (mA output/2000) or 5 uA (whichever is the greater) |
| Thermal Effects | 1 uA/°C |
| Update Rate, Max | 500 ms |
| Country of Origin | United Kingdom |
| Electrical Output | 4 to 20 mA |
| Supply Power Type | DC |
| Thermocouple Type | J, K, T, E, N, R, S |
| Self Heating Effect | 0.2 uA/V |
| Input Control Signal | -10 to 70 mV |
| Electrical Connection | Screw Terminal |
| Programmable Functions | offset, Range, Sensor Burnout Indication, sensor type |
| Temperature Input Range | K: -200 to 1370 °C; J: -100 to 1200 °C; E: -100 to 1000 °C; N: -180 to 1300 °C; T: -100 to 400 °C; R -10 to 1760 °C; S: -10 to 1760 °C |
| Storage Temperature, Max | 90 °C |
| Storage Temperature, Min | -50 °C |
| Cold Junction Compensation | ±0.05°C/°C |
| Operating Temperature, Max | 85 °C |
| Operating Temperature, Min | -40 °C |
| Cold Junction Temperature Accuracy | ±0.5 °C |
Specifications
| SKU | CS5795097 |
|---|---|
| MPN | TX13 |
