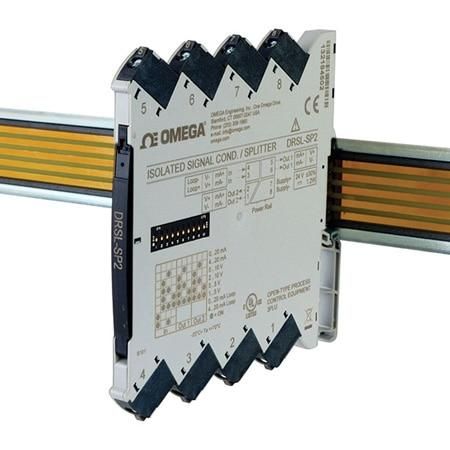

Omega DRSL-SP2

SKU: CS5795817MPN: DRSL-SP2

DIN Rail Isolated Repeater/Splitter for Process Signals.

Omega DRSL-SP2
$341.03
Unit
10 in stock
remove
add

Documents

Product Details

  • Isolation and Conversion of Process Voltage or Current Signals
  • Splitter Function: 1 Process Input–2 Process Outputs
  • Power Supply and Signal Isolator for 2-Wire Transmitter
  • Slimline Housing–Only 6 mm (0.24’) Wide

Attributes

Width 6.1 mm
Height 113 mm
Length 115 mm
Weight 70 g
Accuracy ± 0.05 %
Mounting DIN Rail 35 mm Standard, EN 60715
Approvals CE, UL, RoHS
Isolation Isolation: Input/output 1/output 2/supply;Isolation Voltage (Test): 2.5 kVac;Isolation Voltage (Working):300 Vac
Series ID DRSL-SP2-Rptr-Spltr
Span, Max Corresponds to the presently selected DIP switch output range
Stability Load Stability: ≤0.01% of span/100 Ω
Input Type Voltage, Current
Wire Gauge 26 to 12 AWG
EMC Standard NAMUR NE 21
Installation Pollution degree 2 and measurement/overvoltage category II
Output Value Splitter
Voltage Loss <1.5 V
Output Detail Current Output: Programmable Signal Ranges:0 to 20 mA and 4 to 20 mA Current Limit: ≤28 mA Voltage Output: Programmable Signal Ranges:0 to 10, 2 to 10, 0 to 5 and 1 to 5V
Output Signal Current, Voltage
Response Time < 7 ms
Supply Voltage 16.8 to 31.2 Vdc
Load Resistance Current Output : 23 mA/300 Ω max;Voltage Output : >10 kΩ min
Input Range Note Current Input:;Programmable Measurement Ranges: 0 to 20 mA and 4 to 20 mA; Input Voltage Drop: <1.5V; 2-Wire Transmitter Supply:>17V/20 mA;Voltage Input:;Functional Range: 0 to 11.5V/0 to 5.75V; Programmable Measurement Ranges: 0 to 5V, 1 to 5V, 0 to 10V,2 to 10V ; Input Resistance: ≥500 kΩ
Number of Inputs 2
Country of Origin Denmark
EMC Immunity Note Extended EMC Immunity NAMUR NE 21, A Criterion, Burst: <±1% of span
Electrical Output 0 to 20.5 mA
Enclosure Ratings IP20
Noise Calibration >60 dB
Power Consumption 1.2 W, Internal - max 0.65 W
Relative Humidity 0 to 95% RH (non-condensing)
Supply Power Note 16.8 to 31.2 Vdc via power rail or connectors
Supply Power Type DC
Response Time Note Response Time (0 to 90%, 100 to 10%): <7 ms
Voltage Output Range 0 to 10 Vdc
Additional Features 1 Splitter
Screw Terminal Torque 0.5 Nm
Temperature Coefficient <±0.01% of span/°C
Storage Temperature, Max 85 °C
Storage Temperature, Min -40 °C
Current Measurement Range 0 to 20.5 mA
Voltage Measurement Range 0 to 10.25 Vdc
Operating Temperature, Max 70 °C
Operating Temperature, Min -25 °C
Calibration Temperature, Max 28 °C
Calibration Temperature, Min 20 °C
