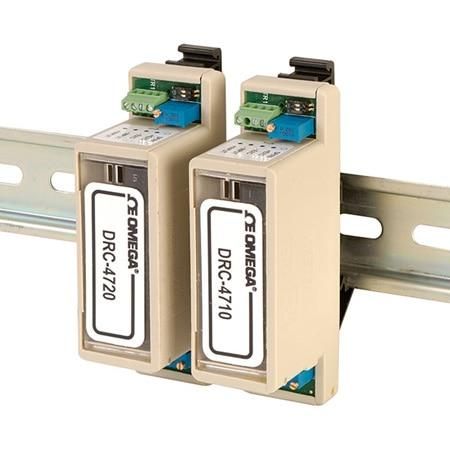

Omega DRC-4710

Name: Omega DRC-4710
Brand: Omega
SKU: CS5040532
Price: 449.70 USD
Availability: OutOfStock

SKU: CS5040532MPN: DRC-4710

DIN Rail Bridge Input Conditioners for Load Cell or Strain Gage

$449.70

Unit

Available on backorder

Quantity

remove

add

Documents

CMRR	100 dB (dc)
Width	27 mm
Height	96 mm
Length	42 mm
Offset	Input Offset Voltage: ± 70 µV
Weight	85 g
Mounting	DIN Rail Mount
Bandwidth	DC to 10 Hz
Linearity	±0.01%
Input Type	Voltage
Output Value	Process
Output Detail	Fixed Output: 10V ±1.0%
Output Signal	Voltage
Supply Voltage	18 to 26 Vdc
Input Range Note	Input Range: 0 to 10 mV, 0 to 20 mV, 0 to 30 mV (dip switch selectable), Input Current (One 350 Ω Bridge): 40 mA
Number of Inputs	1
Country of Origin	United States
Electrical Output	0 to 10 Vdc
Supply Power Type	DC
Common Mode Voltage	0 to 5V
Input Noise Voltage	0.3 µV pp typ (0.1 to 10 Hz);
Voltage Output Range	0 to 10 Vdc
Temperature Coefficient	0.05%/°C
Storage Temperature, Max	80 °C
Storage Temperature, Min	-40 °C
Voltage Measurement Range	0 to 30 mV dc
Operating Temperature, Max	55 °C
Operating Temperature, Min	0 °C
Temperature Coefficient Note	Input : 0.05%/°C Input Offset Voltage Temperature Coefficient : 0.7 µV/°C BRIDGE: 0.05%/°C Output ( Total RMS gain temperature Coefficient : 0.007%/°C
Zero Setting Adjustable Range	20% max output
