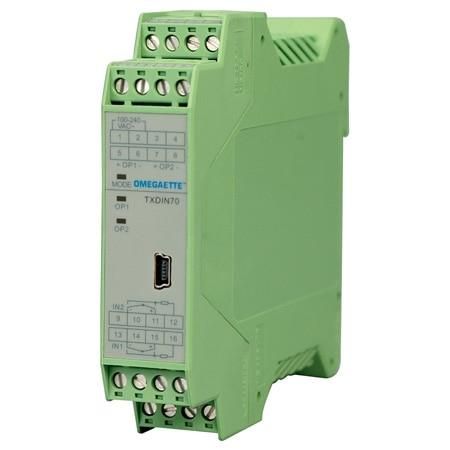

Omega TXDIN70

Name: Omega TXDIN70
Brand: Omega
SKU: CS2067480
Price: 254.86 USD
Availability: InStock

SKU: CS2067480MPN: TXDIN70

Dual DIN Rail Temperature Transmitter w/ Programmable Inputs

$254.86

Unit

1 Unit Available at Factory - Ships Same/Next Business Day

Quantity

remove

add

Documents

Provides Two-Channel Transmitters or Signal Isolators (4 to 20 or 0 to 20 mA)
Programmable Input Types and Ranges with the Optional External Display (required to program unit- model number is TXDIN70-DISPLAY)
DIN Rail Mounted
Inputs are not isolated- Only use UNGROUNDED thermocouple sensors

Drift	< 0.01 % FSO/°C
Width	22.5 mm
Height	100 mm
Length	100 mm
Weight	85 g
Accuracy	± 0.3 %
Mounting	DIN Rail Mount
Approvals	CE
Series ID	TXDIN70-Series-Tx
Input Type	Thermocouple, RTD, Voltage
EMC Standard	IEC 61000-4-4, IEC 61000-4-5
Output Value	Process
Output Detail	Can be freely defined in the range of 0 to 22 mA with maximum output voltage ≥11V
Output Signal	Current
Supply Voltage	100 to 240 Vac, 24 Vdc
Accuracy Detail	Retransmission Accuracy: 0.3% full scale ±1 digit (including input and output error)
Number of Inputs	2
Country of Origin	China
Electrical Output	0 to 22 mA
Power Consumption	max 3 W
Relative Humidity	≤90% RH
Supply Power Type	AC/DC
Voltage Measurement Range	0 to 20 mV, 0 to 60 mV, 0 to 100 mV, 0 to 1V, 0.2 to 1V
Operating Temperature, Max	60 °C
Operating Temperature, Min	-10 °C
Temperature Measurement Range	K: -50 to 1300°C , S: -50 to 1700°C , R: -50 to 1700°C, T: -200 to 350°C, E: 0 to 1000°C , J: 0 to 1200°C ,B*: 0 to 1800°C, N: -50 to 1300°C , WRe5%WRe26: 0 to 2300°C,Pt100: -200 to 900°C
