Omega TXDIN1600S

SKU: CS3645375MPN: TXDIN1600S

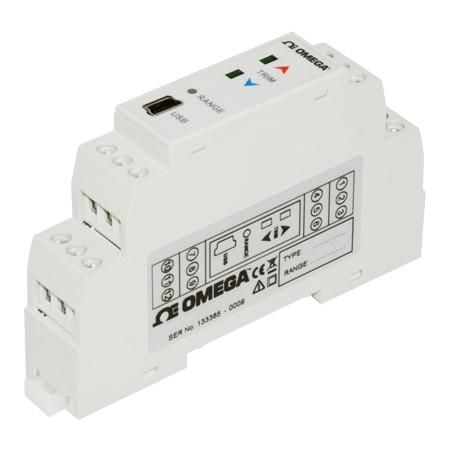

DIN Rail Strain Gage/Load Cell Transmitter w/ Bipolar mA/V Output

Omega TXDIN1600S
$365.73
Unit
Available on backorder
remove
add

Documents

Product Details

  • Suitable for Load Cell/Strain Gauge Applications
  • Universal Current, Bipolar Voltage Outputs
  • Input Range 0.2 to 7.5 MV/V, 5 V Excitation
  • Powered 10 to 32 Vac or 10 to 48 Vdc Supply

Attributes

Drift < ± 0.05%
Width 17.5 mm
Filter 1 to 20 seconds to reach 70% of final value
Height 90 mm
Length 56.4 mm
Offset Tare Input Type - Remote volt free contact, up to 10 meter distance
Weight 70 g
Accuracy ± 5 mV
Mounting DIN Rail 43880, Color Grey
Software Windows PC Software
Approvals CE
Baud Rate 19200
Isolation 500 Vdc
Linearity ±0.01%
Materials Polyimide 6.6
Series ID TXDIN1600S-Transmitter
Input Type Four Wire Bridge Ratiometric
Calibration Calibration Scaling: 2 to 6 points signal against process;Active Calibration:Active calibration against live load cell
Shell Color Gray
Update Rate 10 or 80 SPS
Display Type LED
Output Value Process
Output Detail Current: Current Source: Range (0 to 21.5) mA, max load 750 Ω Current Sink: Range 0 to 21.5 mA, supply 10 to 30 Vdc, voltage effect 0.2 uA/V Output Voltage Current Drive: ± 2 mA, min load 5000 Ω @ 10 V
Output Signal Current, Voltage
Approvals Note CE: BS EN 61326
Data Interface USB
LED Indicators LED, Green when output -0.1 to 100.1%, all else red
Supply Voltage 10 to 48 Vdc, 10 to 32 Vac
Accuracy Detail Input Accuracy : (mA out/2000) or 5 uA whichever is the greater, drift 1 uA/°C, Output Accuracy: ± 5 mV
Impedance Input Bridge: 85 to 10000 Ω
Input Range Note -7.6 to 7.6 mV/V (-38 to 38) mV at 5V excitation
Number of Inputs 1
Country of Origin United Kingdom
Electrical Output 0 to 21.5 mA
Enclosure Ratings IP65
Relative Humidity 10 to 90%RH (non condensing)
Supply Power Note 10 to 48 Vdc, 10 to 32 Vac protected by internal 500 mA resettable fuse Power:< 1 W full power
Supply Power Type AC/DC
Excitation Current 59 mA
Excitation Voltage 5 Vdc
Voltage Output Range 0 to 10.1 V, ± 10.1 V
Additional Features 1 Tag Number: 20 Characters
Voltage Measurement Range -38 to 38 mV dc
Operating Temperature, Max 70 °C
Operating Temperature, Min -30 °C
