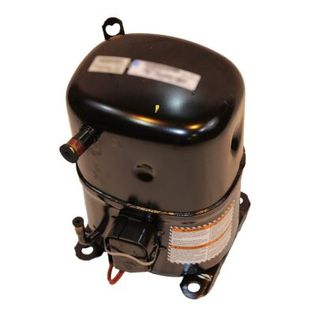

Carrier ZR90K3E TWD 961

Name: Carrier ZR90K3E TWD 961
Brand: Carrier
SKU: CS4231147
Availability: OutOfStock

SKU: CS4231147MPN: ZR90K3E TWD 961Alternate Part #: CAR-ZR90K3E-TWD-961

Scroll

Carrier ZP235KCE TED 750, ZP91KCE TF5 7M7, ZR300KCE TEC 951, ZR300KCE TED 951, ZR90K3E TWD 961

Product Details

ZR90K3E-TWD-961 is a Copeland branded Scroll Compressor that is Three phase with a voltage of 460 VAC. The compressor is designed to work in units that are compatible with a BTU Output of 89000 and use R-22 refrigerant.

Please note, this is a special order, non-stock item and will be shipped direct from the vendor. Non-stock and Special Order items cannot be cancelled once processed, and are non-returnable. Customer is responsible for freight charges. These items may have an extended lead time, up to 4-6 weeks. By purchasing this product, you agree to these terms.

Attributes

Amps	10.5
Phase	Three
Voltage	380-420/460 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	89,000
Protection	External Electronic Protection
Cycle/Hertz	50/60 Hz
Refrigerant	R-134a; R-22; R-407C
Displacement	7.32 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	83
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	1300 lbs./hr.; 1340 lbs./hr.
Mounting Dimensions	8.65” x 8.65” x 21.4”
Rated Load Amps (RLA)	15.3
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F (18.33°C)
Suction Line Size (OD)	1 ⅜”
Evaporating Temperature	45°F (7.22°C)
Locked Rotor Amps (LRA)	99
Oil Charge Initial (oz.)	140
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	⅞”
