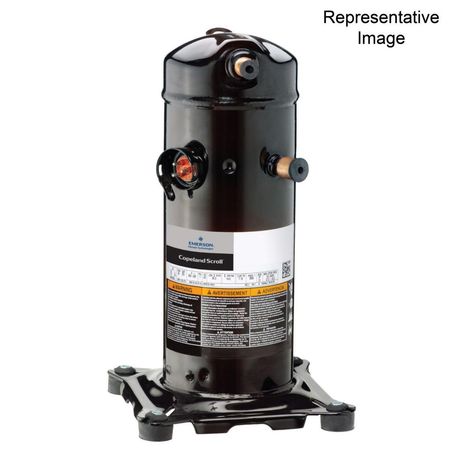

Carrier ZR19M3E-TWD-961

Name: Carrier ZR19M3E-TWD-961
Brand: Carrier
SKU: CS5467046
Price: 9333.49 USD
Availability: OutOfStock

SKU: CS5467046MPN: ZR19M3E-TWD-961

COPE SCROLL 400/460/3

Product Details

Amps	32.1
Phase	Three
Voltage	380-420/460 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	185,000
Protection	External Electronic Protection
Cycle/Hertz	50/60 Hz
Refrigerant	R-134a; R-22; R-407C
Displacement	15.00 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	83
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	2690 lbs./hr.; 2760 lbs./hr.
Mounting Dimensions	8.65” x 8.65” x 23.47”
Rated Load Amps (RLA)	28.8
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F (18.33°C)
Suction Line Size (OD)	2 ¼”
Evaporating Temperature	45°F (7.22°C)
Locked Rotor Amps (LRA)	187
Oil Charge Initial (oz.)	140 oz
Discharge Connection Type	Rotolock
Suction Line Fitting Type	Rotolock
Discharge Connection Size (OD)	1 ¾”
