Carrier ZPD137KCE-TFD-855

Name: Carrier ZPD137KCE-TFD-855
Brand: Carrier
SKU: CS4231086
Price: 7779.43 USD
Availability: OutOfStock

SKU: CS4231086MPN: ZPD137KCE-TFD-855Alternate Part #: CAR-ZPD137KCE-TFD-855

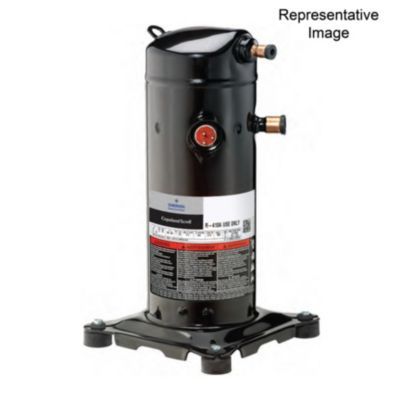

Factory Authorized Parts™ - ZPD137KCE-TFD-855 Copeland Scroll™ Compressor

Carrier ZPD120KCE TFD 855, ZPD137KCE TFD 855

$7,779.43

Unit

Available on backorder

Quantity

remove

add

Product Details

Factory Authorized Parts™ - ZPD137KCE-TFD-855 Copeland Scroll™ Compressor

Please note, this is a special order, non-stock item and will be shipped direct from the vendor. Non-stock and Special Order items cannot be cancelled once processed, and are non-returnable. Customer is responsible for freight charges. These items may have an extended lead time, up to 4-6 weeks. By purchasing this product, you agree to these terms.

Attributes

Amps	16.6
Phase	Three
Voltage	380-420/460 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	137,000
Protection	Internal Inherent Protection
Cycle/Hertz	50/60 Hz
Refrigerant	R-410A; R-410B
Displacement	7.76 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	80
Compressor Housing	Hermetic
Liquid Temperature	105°F to 115°F (40.56°C to 46.11°C)
Mass Flow (lbs/hr)	1705 lbs./hr.; 2030 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 21.75”
Rated Load Amps (RLA)	20.7
Substantial Commodity	Steel
Condensing Temperature	120°F to 130°F (48.89°C to 54.44°C)
Return Gas Temperature	65°F (18.33°C)
Suction Line Size (OD)	1 ⅜”
Evaporating Temperature	35°F
Locked Rotor Amps (LRA)	125
Oil Charge Initial (oz.)	110
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	⅞”
