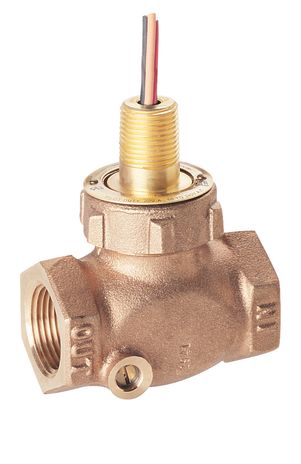

Dwyer GVS-111
SKU: CS4118435MPN: GVS-111Alternate Part #: 124255-00
GVS-111 BR GLV SW 1NPT 1-6GPM
$732.85
UnitAvailable on backorder
Product Details
Globe valve switch, actuation set point 1.0-6.0 GPM (3.8-22.7 LPM).
Attributes
| Accuracy | ±10%. |
| Commodity Code | R5BA |
| Electrical Connection | 18 AWG, 24” (61 cm) length, Polymeric lead wires. |
| Electrical Connections | 18 AWG, 24” (61 cm) length, Polymeric lead wires. |
| Electrical Rating | .17 A @ 120 VAC, .08 A @ 240 VAC, .13 A @ 120 VDC, .06 A @ 240 VDC. |
| Mounting Orientation | Any position. Set points shown are based on horizontal, lead wires up positional. |
| Pressure Limit | 400 psig (27 bar) @ 100°F (38°C). |
| Process Connection | 1” female NPT. |
| Process Connections | 1” female NPT. |
| Repeatability | 1% maximum deviation. |
| Required Filtration | 150 microns or better. |
| Service | Compatible liquids. |
| Switch Type | SPDT. |
| Wetted Material | Housing: Bronze; Shuttle: TFE; Bonnet: Bronze; Spring: 316SS; Other: Fluoroelastomer, ceramic. |
Specifications
| SKU | CS4118435 |
|---|---|
| MPN | GVS-111 |
| Alternate Part # | 124255-00 |
