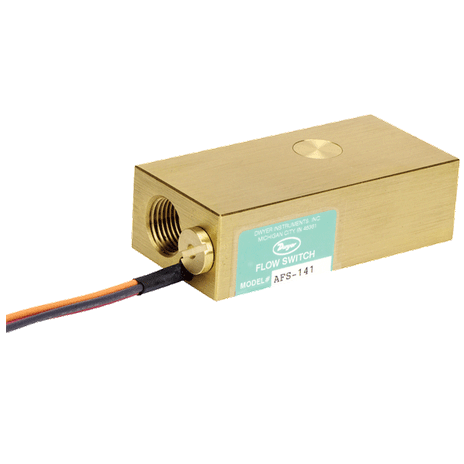

Dwyer AFS-141

Name: Dwyer AFS-141
Brand: Dwyer
SKU: CS4115864
Price: 1151.37 USD
Availability: OutOfStock

SKU: CS4115864MPN: AFS-141Alternate Part #: 124259-01

AFS-141 ADJ FLW SW WTR BR

$1,151.37

Unit

Available on backorder

Quantity

remove

add

Product Details

Adjustable flow switch for water, 18 AWG, 24” polymeric lead wires, polysulfone piston, brass housing.

Accuracy	±10% of setpoint.
Commodity Code	R5DF
Compliance	CE.
Electrical Connection	18 AWG, 24” (61 cm), polymeric lead wires, optional ½” male NPT conduit connection.
Electrical Connections	18 AWG, 24” (61 cm), polymeric lead wires, optional ½” male NPT conduit connection.
Electrical Rating	.17 A @ 120 VAC, .08 A @ 240 VAC, .13 A @ 120 VDC, .06 A @ 240 VDC.
Mounting Orientation	Any.
Pressure Limit	1000 psi (68 bar).
Process Connection	½” female NPT ports.
Repeatability	±1% maximum deviation.
Required Filtration	50 microns or better.
Service	Compatible gases or liquids.
Setpoint Adjustment	Liquids: 0.5 to 20 GPM (1.9 to 75.7 LPM); Gases: 1.0 to 75 SCFM (28 to 2124 LPM) at 5 psig.
Switch Type	SPDT.
Wetted Material	Housing and Piston: See model chart on catalog page; Spring: 316SS; O-ring: Fluoroelastomer; Other: Epoxy.
