Turck BIM-M12E-Y1X

SKU: CS3790048MPN: BIM-M12E-Y1XAlternate Part #: 1074002UPC/EAN: 4047101064803

1074002 - TRANS., BARREL, NAMUR, CABLE

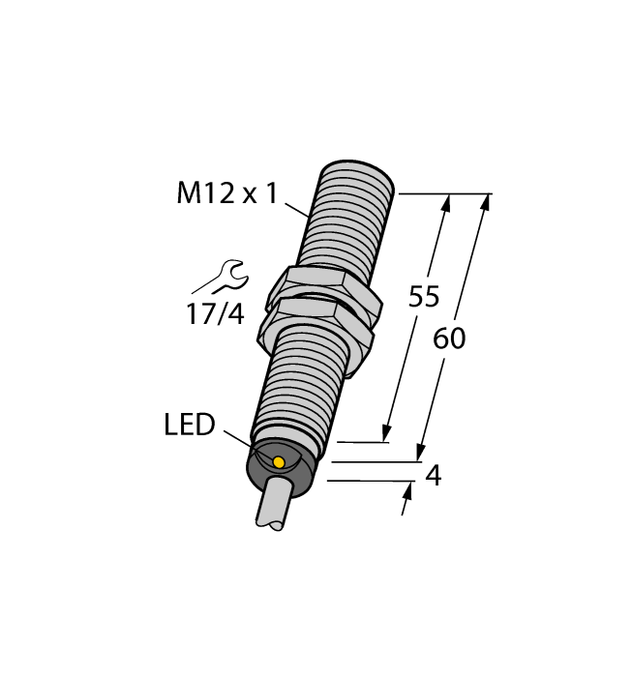

Turck BI2-EM12-ADZ32X, BI2-EM12-ADZ32X 7M, BI2U-M12E-AD4X, BI3U-EM12E-VP4X, BI3U-M12E-AP6X, BI4-EM12E-AP45XLD, BI4-EM12E-AP45XLD/S100, BI4-M12E-AP6X, BI4-M12E-VN6X, BI4-M12E-VP6X, BI4-M12E-VP6X/S97, BI4U-M12E-VP6X, BIM-EM12E-AP4X, BIM-EM12E-Y1X, BIM-M12E-AG4X

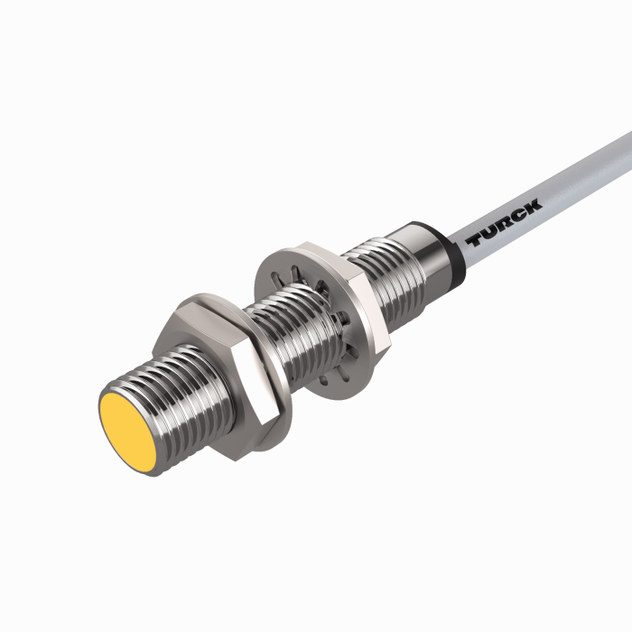

Turck BI2-G12-ADZ32X, BI2-G12-ADZ32X 7M, BI2-G12-AN6X 15M, BI2-G12-AN6X 5M, BI2-G12-AN6X 60MM, BI2-G12-AN6X 60MM 7M, BI2-G12-AN6X 7M, BI2-G12-AN7X, BI2-G12-AN7X 60MM, BI2-G12-AN7X 7M, BI2-G12-AP6X 15M, BI2-G12-AP6X 20M, BI2-G12-AP6X 5M, BI2-G12-AP6X 60MM, BI2-G12-AP6X 60MM 7M
Turck BI2-EM12-ADZ32X, BI2-EM12-ADZ32X 7M, BI2U-M12E-AD4X, BI3U-EM12E-VP4X, BI3U-M12E-AP6X, BI4-EM12E-AP45XLD, BI4-EM12E-AP45XLD/S100, BI4-M12E-AP6X, BI4-M12E-VN6X, BI4-M12E-VP6X, BI4-M12E-VP6X/S97, BI4U-M12E-VP6X, BIM-EM12E-AP4X, BIM-EM12E-Y1X, BIM-M12E-AG4X
Turck BI2-G12-ADZ32X, BI2-G12-ADZ32X 7M, BI2-G12-AN6X 15M, BI2-G12-AN6X 5M, BI2-G12-AN6X 60MM, BI2-G12-AN6X 60MM 7M, BI2-G12-AN6X 7M, BI2-G12-AN7X, BI2-G12-AN7X 60MM, BI2-G12-AN7X 7M, BI2-G12-AP6X 15M, BI2-G12-AP6X 20M, BI2-G12-AP6X 5M, BI2-G12-AP6X 60MM, BI2-G12-AP6X 60MM 7M
$173.89
Unit
Available on backorder
remove
add

Product Details

Magnetic Field Sensor

Magnetic-inductive Proximity Sensor

  • Threaded barrel, M12 x 1
  • Chrome-plated brass
  • Rated operating distance 90 mm with DMR31-15-5 magnet
  • DC 2-wire, nom. 8.2 VDC
  • Output acc. to DIN EN 60947-5-6 (NAMUR)
  • Cable connection
  • ATEX category II 1 G, Ex zone 0
  • ATEX category II 1 D, Ex zone 20
  • SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 with HFT0
  • SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1

Attributes

Ambient Temperature -25…+70 °C
Approvals ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc
Construction Size M12 x 1
Customs Tariff Number 85365019900.0000
Design Threaded barrel
Ecl Ss Code V5 1 4 27270104 -/- Magnetic inductive proximity switch
Electrical Connection Cable
Housing Material Metal, CuZn, Chrome-plated
Output Function NAMUR
Protection Class IP67
Rated Switching Distance 90 mm
Special Feature Magnetic-inductive

Specifications

SKUCS3790048
MPNBIM-M12E-Y1X
Alternate Part #1074002
UPC/EAN4047101064803
