Turck BIM-IKT-Y1X W/KLI3
SKU: CS3790030MPN: BIM-IKT-Y1X W/KLI3Alternate Part #s: 10560TUR-BIM-IKT-Y1XUPC/EAN: 4047101145281
1056090 - TRANS., RECT., NAMUR, CABLE
Contact us for pricing and availability
Product Details
Magnetic Field Sensor
For Pneumatic Cylinders
- Rectangular, height 17 mm
- Metal, GD-Zn
- Magnetic-inductive sensor
- DC 2-wire, nom. 8.2 VDC
- Output acc. to DIN EN 60947-5-6 (NAMUR)
- Cable connection
- ATEX category II 2 G, Ex Zone 1
- ATEX category II 1 D, Ex Zone 20
- SIL 2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0
- SIL 3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc |

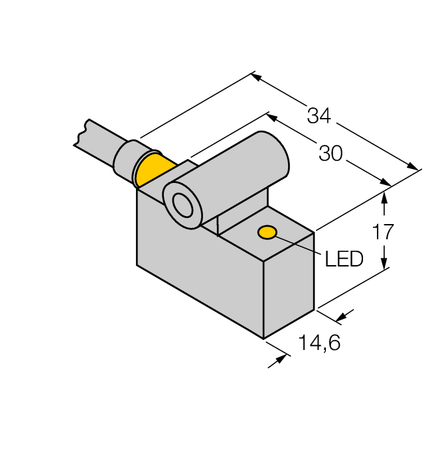

| Construction Size | 30 x 14.6 x 17 mm, IKT |
| Customs Tariff Number | 85365019900.0000 |
| Cylindrical Design | Tie-rod cylinder, Profile cylinder, Cylinder with external dovetail groove |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270104 -/- Magnetic inductive proximity switch |
| Electrical Connection | Cable |
| Housing Material | Metal, GD-Zn |
| Output Function | NAMUR |
| Protection Class | IP67 |
Specifications
| SKU | CS3790030 |
|---|---|
| MPN | BIM-IKT-Y1X W/KLI3 |
| Alternate Part #s | 10560, TUR-BIM-IKT-Y1X |
| UPC/EAN | 4047101145281 |
