Turck BIM-NST-Y1X
SKU: CS4209216MPN: BIM-NST-Y1XAlternate Part #: 1058400UPC/EAN: 4047101064223
1058400 - TRANS., RECT., NAMUR, CABLE
$110.42
UnitAvailable on backorder
Product Details
Magnetic Field Sensor
For Pneumatic Cylinders
- Plastic, PA12-GF30
- Magnetic-inductive sensor
- DC 2-wire, nom. 8.2 VDC
- Output acc. to DIN EN 60947-5-6 (NAMUR)
- Cable connection
- ATEX category II 2 G, Ex Zone 1
- ATEX category II 1 D, Ex Zone 20
- SIL 2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0
- SIL 3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc |

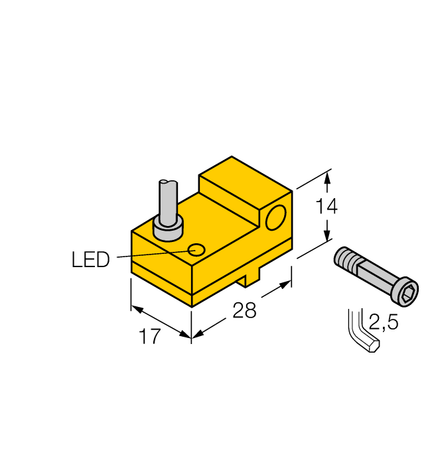

| Construction Size | 28 x 17 x 14 mm, NST |
| Customs Tariff Number | 85365019900.0000 |
| Cylindrical Design | T-groove cylinder, Dovetail groove cylinder, Profile cylinder |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270104 -/- Magnetic inductive proximity switch |
| Electrical Connection | Cable |
| Housing Material | Plastic, PA12-GF30 |
| Output Function | NAMUR |
| Protection Class | IP67 |
Specifications
| SKU | CS4209216 |
|---|---|
| MPN | BIM-NST-Y1X |
| Alternate Part # | 1058400 |
| UPC/EAN | 4047101064223 |
