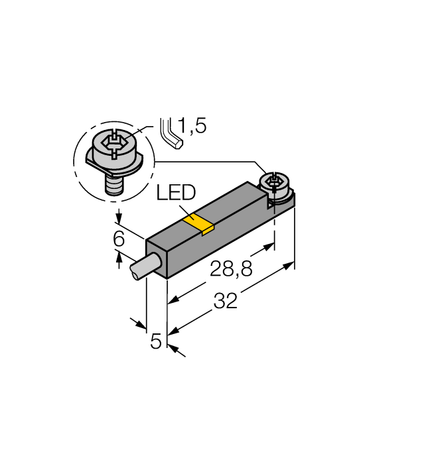

Turck BIM-INT-Y1X 7M

SKU: CS3790034MPN: BIM-INT-Y1X 7MAlternate Part #: 1056806UPC/EAN: 4047101145465

1056806 - TRANS., RECT., NAMUR, CABLE

Turck BIM-IKE-AN6X W/KLI3, BIM-IKE-AN6X-0.3-RS4T W/KLI3, BIM-IKE-AP6X W/KLI3, BIM-IKE-Y1X W/KLI3, BIM-IKM-AZ3X2 W/KLI3, BIM-IKM-AZ3X2-0.2-RSM30 W/KLI3, BIM-INT-Y1X, BIM-INT-Y1X 7M, BIM-INT-Y1X-0.2-RS4.21T, BIM-PSM-AN6X, BIM-PSM-AN6X-V1131, BIM-PSM-AP6X, BIM-PSM-AP6X-0.2-PSG3M W/O BKT, BIM-PSM-AP6X-0.2-RS4T W/O BKT, BIM-PSM-AP6X-V1131
Turck BIM-INT-Y1X, BIM-INT-Y1X 7M
Turck BIM-IKE-AN6X W/KLI3, BIM-IKE-AN6X-0.3-RS4T W/KLI3, BIM-IKE-AP6X W/KLI3, BIM-IKE-Y1X W/KLI3, BIM-IKM-AZ3X2 W/KLI3, BIM-IKM-AZ3X2-0.2-RSM30 W/KLI3, BIM-INT-Y1X, BIM-INT-Y1X 7M, BIM-INT-Y1X-0.2-RS4.21T, BIM-PSM-AN6X, BIM-PSM-AN6X-V1131, BIM-PSM-AP6X, BIM-PSM-AP6X-0.2-PSG3M W/O BKT, BIM-PSM-AP6X-0.2-RS4T W/O BKT, BIM-PSM-AP6X-V1131
Turck BIM-INT-Y1X, BIM-INT-Y1X 7M
$132.22
Unit
Available on backorder
remove
add

Product Details

Magnetic Field Sensor

For Pneumatic Cylinders

  • Rectangular, height 6 mm
  • Plastic, PP
  • Magnetic-inductive sensor
  • DC 2-wire, nom. 8.2 VDC
  • Output acc. to DIN EN 60947-5-6 (NAMUR)
  • Cable connection
  • ATEX category II 1 G, Ex zone 0
  • ATEX category II 1 D, Ex zone 20
  • SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 with HFT0
  • SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1

Attributes

Ambient Temperature -25…+70 °C
Approvals ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc
Construction Size 32 x 5 x 6 mm, INT
Customs Tariff Number 85365019900.0000
Cylindrical Design Tie-rod cylinder, Tie-rod cylinder, Cylinder with external dovetail groove
Design Rectangular
Ecl Ss Code V5 1 4 27270104 -/- Magnetic inductive proximity switch
Electrical Connection Cable
Housing Material Plastic, PP
Output Function NAMUR
Protection Class IP67

Specifications

SKUCS3790034
MPNBIM-INT-Y1X 7M
Alternate Part #1056806
UPC/EAN4047101145465
