Turck BIM-EG08-Y1X-H1341

SKU: CS3790000MPN: BIM-EG08-Y1X-H1341Alternate Part #: 1074001UPC/EAN: 4047101145700

1074001 - TRANS., BARREL, NAMUR, CON. M1

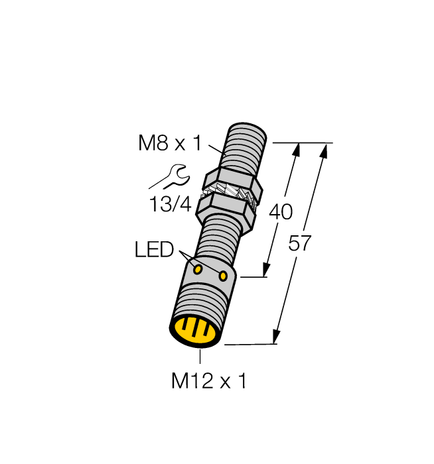

Turck BIM-EG08-AN6X-H1341, BIM-EG08-AP6X-H1341, BIM-EG08-Y1X-H1341
$137.60
Unit
Available on backorder
remove
add

Product Details

Magnetic Field Sensor

Magnetic-inductive Proximity Sensor

  • M8 × 1 threaded barrel
  • Stainless steel, 1.4427 SO
  • Rated operating distance 78 mm with DMR31-15-5 magnet
  • DC 2-wire, nom. 8.2 VDC
  • Output acc. to DIN EN 60947-5-6 (NAMUR)
  • Male connector M12 x 1
  • ATEX category II 1 G, Ex zone 0
  • ATEX category II 1 D, Ex zone 20
  • SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 with HFT0
  • SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1

Attributes

Ambient Temperature -25…+70 °C
Approvals ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc
Construction Size M8 x 1
Customs Tariff Number 85365019900.0000
Design Threaded barrel
Ecl Ss Code V5 1 4 27270104 -/- Magnetic inductive proximity switch
Electrical Connection Connector, M12 × 1
Housing Material Stainless steel, 1.4427 SO
Output Function NAMUR
Protection Class IP67
Rated Switching Distance 78 mm
Special Feature Magnetic-inductive

Specifications

SKUCS3790000
MPNBIM-EG08-Y1X-H1341
Alternate Part #1074001
UPC/EAN4047101145700
