ACI A/PS24-24V-S

Name: ACI A/PS24-24V-S
Brand: ACI
SKU: CS3684345
Availability: OutOfStock

SKU: CS3684345MPN: A/PS24-24V-SAlternate Part #: 144322

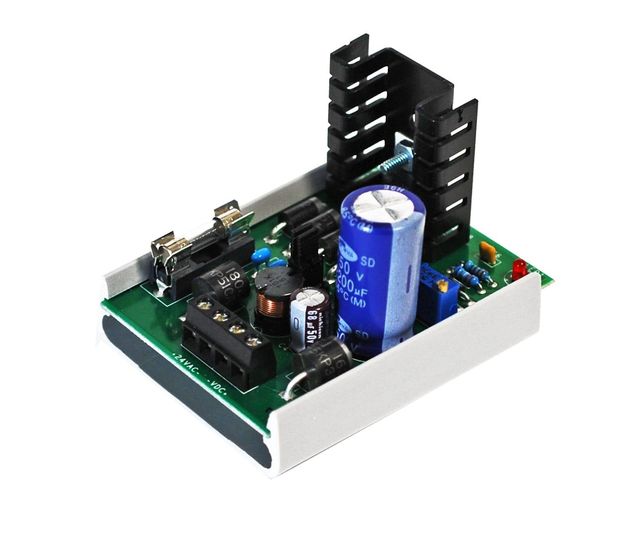

24VDC Adjustable Power Supply w/Snap Track

Product Details

24VDC Adjustable Power Supply w/Snap Track

Power Supply Voltage Output	24VDC

Input Voltage	22 to 26 VAC, 50/60 Hz (Class 2 Transformer w/ 24 VAC Secondary) or 30 to 36 VDC
Rectification	Half-Wave (Default) or Full Wave (Jumper Selectable)
Output Voltage	Factory set at 24 VDC; Adjustable from +1.5 to 26 VDC Note: Custom parts can have voltage setting specified for factory setting.
Product Weight	0.14 lbs. (0.064 kg)
VA Requirements	1.5 VA minimum (No Load); Additional VA required must be determined by load size
Agency Approvals	CE, RoHS, WEEE

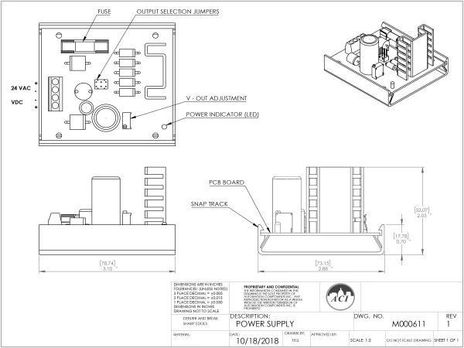

Product Dimensions	3.10” (78.8 mm) x 2.88” (73.2 mm) x 2.05” (52.1 mm)
Snaptrack Material	Polyvinyl Chloride (PVC)
Overload Protection	Internal Current Limiting Thermal Protection
Status LED Indication	Red LED Indicates power on status
Ground Loop Protection	Fused, 3.15A/250 VAC, 5 x 20 mm, fast acting (Littelfuse 02173.15 MXP or equivalent)
Connections \| Wire Size	Screw Terminal Blocks \| 14 (1.31 mm2) to 22 AWG (0.129 mm2)
Operating Humidity Range	5 to 95%, non-condensing
Output Current Signal Load	See Datasheet chart
Operating Temperature Range	32 to 158ºF (0 to 70ºC)
RH Storage Temperature Range	50 to 95ºF (10 to 35ºC) \| 30 to 60%
Terminal Block Torque Rating	4 lb-in (0.5 Nm) maximum
Snaptrack Flammability Rating	UL94 V-0
