ACI FSIG-LSH-024

Name: ACI FSIG-LSH-024
Brand: ACI
SKU: CS6290705
Availability: OutOfStock

SKU: CS6290705MPN: FSIG-LSH-024Alternate Part #: 149008

PIEZOELECTRIC HORN SOUND MODULE 24VDC

Product Details

PIEZOELECTRIC HORN SOUND MODULE 24VDC

Configuration Modification	Litestack Piezoelectric Horn

Input	Relay
Color(Base)	Black
Light Source	Incandescent
Base Material	Polycarbonate
Horn Decibels	Adjustable, up to 75-77 dBa @ 10’ (85-87 dBa @ 1m)
Product Weight	LSL Light Module: 0.8 lbs (0.4 kg) LBS Base: 1.0 lbs (0.4 kg) LSH Piezoelectric Horn: 0.65 lbs (0.3 kg)
Supply Current	LSL Light Modules: 0.76 amps \| LHS Piezoelectric Horn: 70mA Note*: Operating current listed is for one module. For multiple modules, the current will have to be added together throughout the configuration to get the total operating current.
Supply Voltage	24 VDC
Life Expectancy	Lamp: 2,500 Hours
Agency Approvals	UL Listed, CSA Certified
Enclosure Rating	NEMA 1 \| IP 10

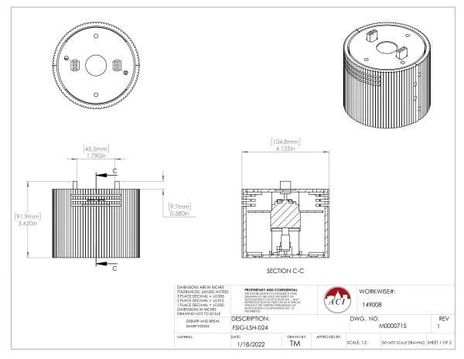

Product Dimensions	LSB Base, LSL Module, and LSH Piezoelectric Horn (D x H): 3.93” (99.8mm) x 3.25” (82.6mm) LSBS Base (D x H): 3.93” (33.8mm) x 3.25” (82.6mm)
Light Module Colors	Amber, Blue, Clear, Green and Red
Operating Temperature Range	32-120°F (0-49°C)
