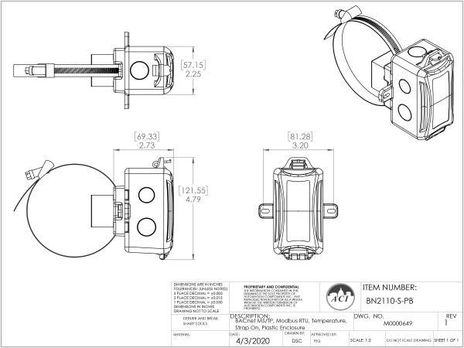

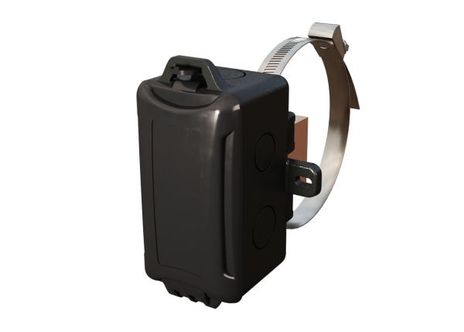

ACI BN2110-S-PB

Name: ACI BN2110-S-PB
Brand: ACI
SKU: CS6289610
Availability: OutOfStock

SKU: CS6289610MPN: BN2110-S-PBAlternate Part #: 146549

BACnet MS/TP, Modbus RTU, Temperature, Strap On, Plastic Enclosure

Product Details

BACnet MS/TP, Modbus RTU, Temperature, Strap On, Plastic Enclosure

Product Configuration

Configuration	Strap-On

Product Family Specifications

Resolution	+/- 0.1º
Product Weight	0.43 lbs. (0.20 kg)
Supply Current	25 mA maximum (0.67 VA)
Supply Voltage	12 to 36 VDC / 24 VAC +/- 10%, 50/60 Hz (Reverse Polarity Protected)
Agency Approvals	BTL Certified, CE, RoHS, WEEE, China RoHS
Maximum Distance	4000 ft (1219 m)
Temperature Units	ºF (Factory Default), ºC, ºK (Field Configurable)
Output Update Rate	4 seconds
Network Addressable	0 \= Factory Default \| 1-127 \= Field Selectable
Pipe Sizes Accepted	S: 1 ¼” (32 mm) to 4“ (100 mm) \| S10: 2” (50 mm) to 10“ (250 mm)
Supported Baud Rates	Auto Baud (Factory Default) \| 9600, 19200, 38400, 57600, 76800, 115200 (Field Selectable)
Tri-Color Status LED	Connection Status
Communication Protocol	BACnet™ MS/TP or Modbus RTU \= Field Selectable; EIA RS-485
Connections \| Wire Size	Screw Terminal Blocks \| 16 AWG (1.31 mm2) to 22 AWG (0.33 mm2)
Accuracy @ 77°F (25°C)	+/- 1.0ºF (+/- 0.5ºC)
Operating Humidity Range	10 to 95% RH, non-condensing
Storage Temperature Range	-40 to 185ºF (-40 to 85ºC)
Enclosure Temperature Rating	-22 to 194ºF (-30 to 90ºC)
Temperature Measurement Range	-22 to 185ºF (-30 to 85ºC)
Temperature Calibration Offset	+/- 9ºF (+/- 5ºC) (Field Configurable)
End of Line Termination Resistance	120 Ohms Termination Resistance (Field Selectable)
Modbus Data Bits / Parity / Stop Bit	8 Data Bits \| None/Even/Odd \= Field Selectable \| 1 or 2\= Field Selectable
Pipe Mount Sensor Enclosure Material	Copper
Transmitter Operating Temperature Range	-40 to 176ºF (-40 to 80ºC)
Enclosure Material \| Flammability Rating	ABS Plastic \| UL94-HB
