Square D XB4BW3335

Name: Square D XB4BW3335
Brand: Square D
SKU: CS4813975
Availability: OutOfStock

SKU: CS4813975MPN: XB4BW3335

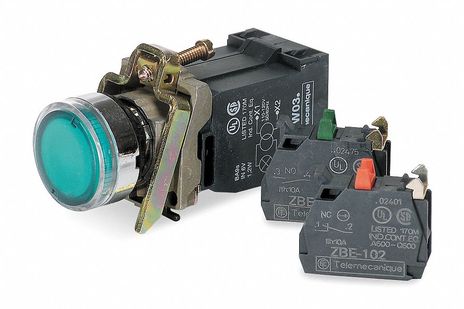

Illuminated push button, Harmony XB4, green flush, 22mm, spring return, 1NO + 1NC, 110...120V

Product Details

HARMONY XB4 GREEN FLUSH COMPLETE ILLUMINATED PUSHBUTTON

Ambient Air Temperature For Operation	-40-55 °C
Ambient Air Temperature For Operation 1	-40-55 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Bulb Base	BA 9s
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO + 1 NC
Contacts Usage	standard contacts
Device Presentation	complete product
Device Short Name	XB4
Fixing Collar Material	zamak
Head Type	standard
Light Source	incandescent
Mechanical Durability	10000000 cycles
Mounting Diameter	22 mm
Operator Additional Information	with plain lens
Product Certifications	GL# #BV# #CSA# #UL listed# #DNV# #LROS (Lloyds register of shipping)
Product Or Component Type	illuminated push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Signalling Type	steady
Signalling Type 1	steady
Standards	EN/IEC 60947-5-1# #EN/IEC 60947-1# #EN/IEC 60947-5-4# #CSA C22.2 No 14# #JIS C8201-5-1# #EN/IEC 60947-5-5# #UL 508# #JIS C8201-1
Terminals Description Iso N 1	(13-14)NO# #(21-22)NC
