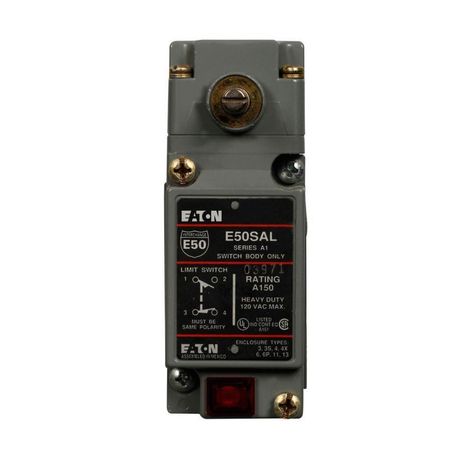

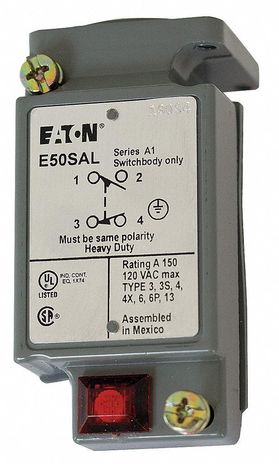

Eaton E50SAL

Name: Eaton E50SAL
Brand: Eaton
SKU: CS3635859
Price: 262.58 USD
Availability: OutOfStock

SKU: CS3635859MPN: E50SALUPC/EAN: 782113775364

Eaton E50 NEMA heavy duty plug-in limit switch

Eaton E50AH1, E50AH16P, E50AL1, E50AL16P, E50AM16P, E50AR1, E50AR16P, E50AS1, E50AS16P, E50AS2, E50AS3, E50AS36P, E50AT1, E50AT16P, E50AT2

$262.58

Unit

Available on backorder

Quantity

remove

add

Product Details

Eaton E50 NEMA heavy duty plug-in limit switch,10A at 12 Vac,1A at 125 Vdc,1NO-1NC,Die cast zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,LED indicator,24-120 Vac/dc,10A,1A,Single-pole,-40° to 250°F (-40° to 121°C),E50 Heavy Duty Plug In

Attributes

Contact Configuration	1 NO-1 NC
Contact Rating	10A at 12 Vac, 1A at 125 Vdc
Enclosure Material	Die cast zinc
Environmental Rating	NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Led Indicator	LED indicator
Light Unit Voltage	24-120 Vac/dc
Maximum Ac Current	10 A
Maximum Dc Current	1 A
Number Of Poles	Single-pole
Operating Temperature Max	250 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Series	E50 heavy duty plug in
